PLAN #930-110

Key Specs


4009
sq ft

3
Beds

4
Baths

1
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Winner of an award for Builder’s Model at the American Residential Design Awards, this Mediterranean-style home boasts splendid amenities. It starts with a magnificent stucco exterior, Spanish-tile roof, palm-tree landscaping and Old World details such as arches and accent niches, which frame the spectacular entry. Double French doors lead to the tiled foyer, which is brightened with natural light brought in by the fanlight above, as well as the warm glow of a centered chandelier. To the right of the foyer, the formal dining room overlooks the front property through a wide curved wall of glass. An archway supported by decorative columns separates the dining room from the living room, which boasts a fireplace and a tray ceiling with recessed lighting. The pocket sliding glass doors open to the covered back patio, pool and spa. Six transom windows line the top of the doors, providing elegant definition to the room. A convenient butler's pantry serves the gourmet kitchen, introduced by decorative square pillars. This well-planned room includes a corner walk-in pantry, wrapping counters, an island counter with a food-prep sink, double ovens and a six-range stove. The adjoining breakfast room provides hutch space and enjoys wide views through a curved-glass window that overlooks the pool area. The focal point of the family room is a massive fireplace, flanked by niches and built-in cabinetry. A vaulted ceiling adds a sense of spaciousness to the room, while pocket sliding glass doors extend the living space to a wide patio with a summer kitchen. Ideal for outdoor entertaining, this area features a sink, stove and snack-bar counter. The lanai wraps around a lovely pool and spa area, creating a lavish outside retreat. The master suite and study occupy the opposite wing of the plan. Double French doors lead to a private vestibule with an art niche. Nearby, a thoughtfully placed powder room is convenient for guests as well as swimmers, who can access this half bath from the lanai. The master bedroom opens through an archway and features a wall of glass around an ideal space that serves as a sitting area. Nearby, double doors lead out to the patio and pool. Two walk-in closets flank the entrance to the master bath. A soaking tub features views of a side garden, while the step-up shower boasts glazed glass-block windows. French doors open from the foyer to the quiet study, which is highlighted by a tray ceiling and defined by built-in bookshelves and richly detailed cabinetry. This room is brightened by a bay window, which overlooks the front property. The master bath provides a separate door to the study, which is a great place for the fortunate homeowner to find repose or enjoy a good read. Each of two secondary bedrooms has a walk-in closet and full bath with shower. A gallery hall connects the guest or family sleeping quarters with a utility area.

Floor Plans

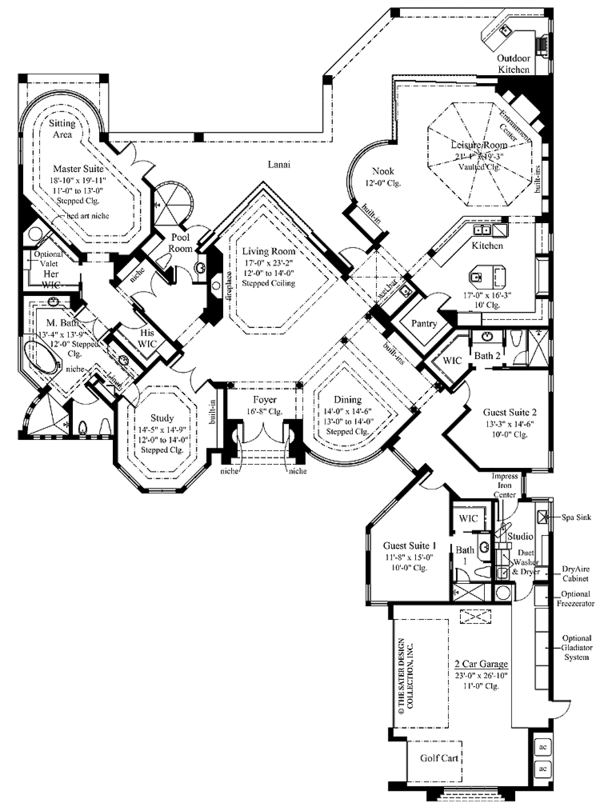

Floor Plan - Main Floor Plan

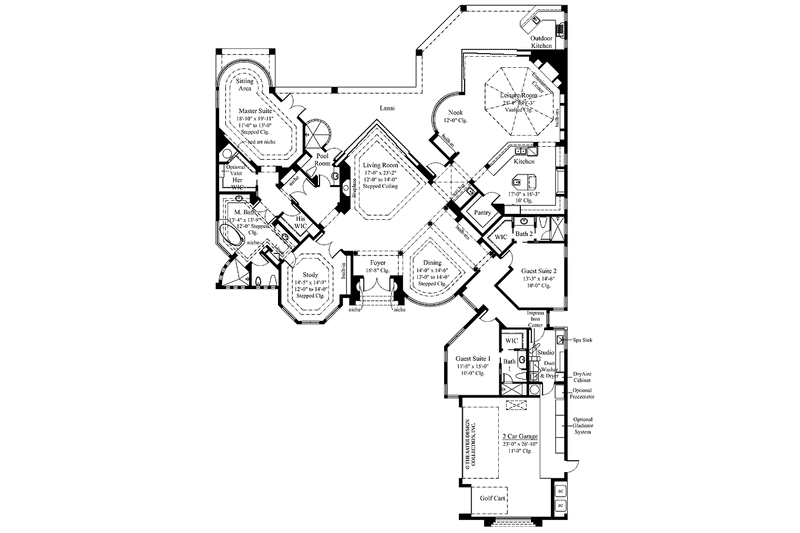

Floor Plan - Main Floor Plan

Full Specs & Features


Area Main Floor : 4009 sq/ft
Bedroom Features Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces Covered Rear Porch

What's Included In This Plan Set


Sater Design Collection

Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection.

Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

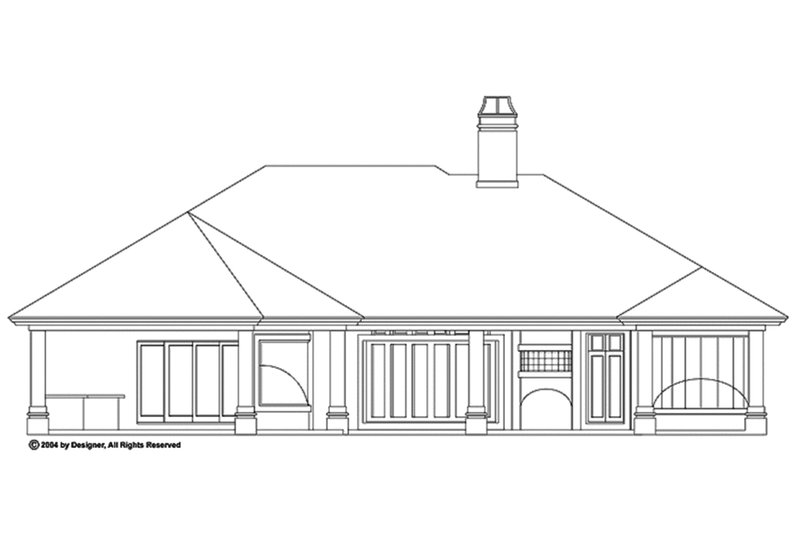

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
