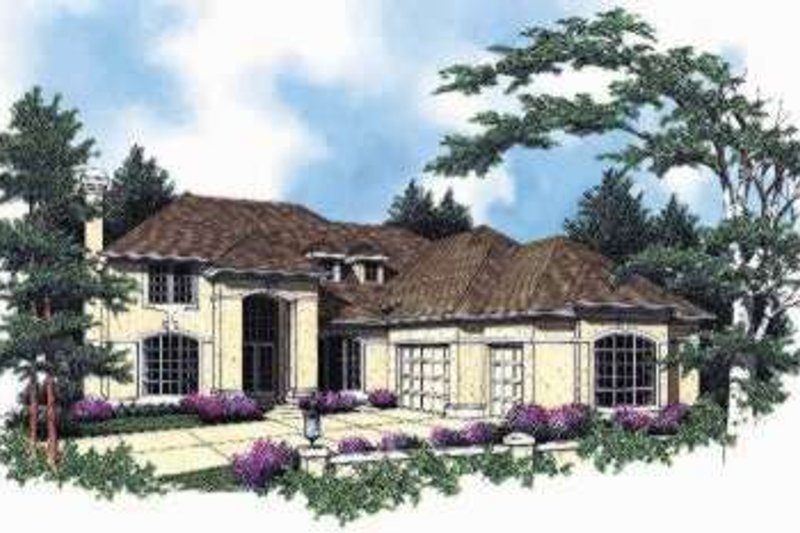

Dream House Plan - Mediterranean Exterior - Front Elevation Plan #48-181

Get Personalized Help

Home > Style > Mediterranean

Key Specs

4019
sq ft

6
Beds

2.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$202.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$135.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$405.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$90.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1934.10

You save $214.90 (10% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon - Fri 9:00 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 48-181

Home > Style > Mediterranean

Key Specs

4019
sq ft

6
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Reverse

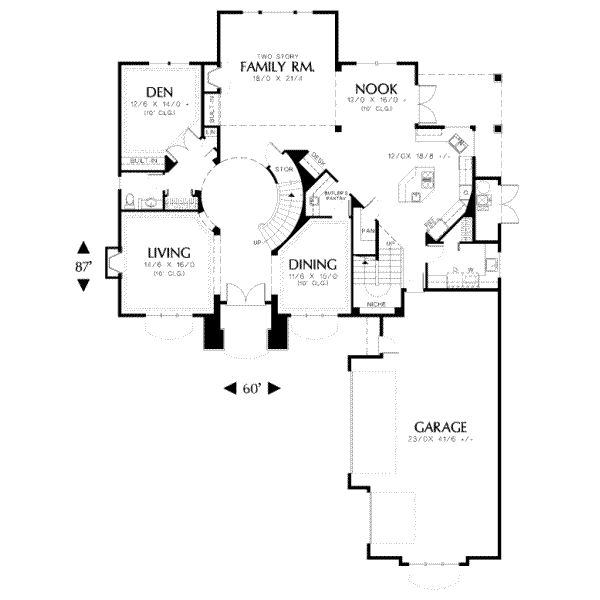

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #48-181

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

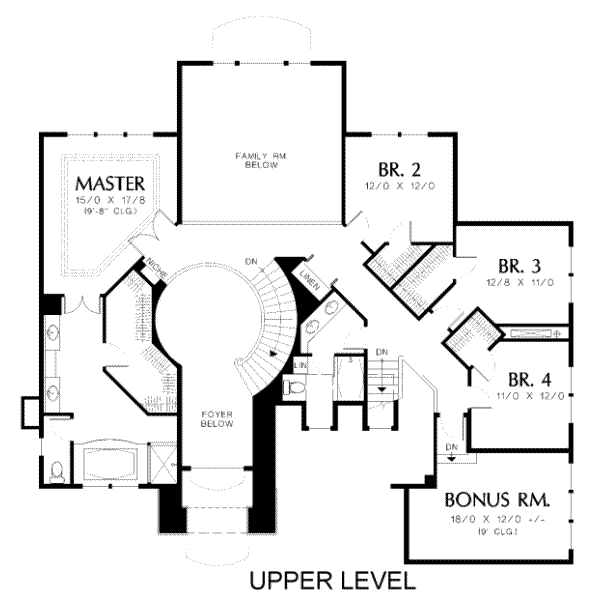

Dream House Plan - Mediterranean Floor Plan - Upper Floor Plan #48-181

Full Specs & Features

Dimension

Depth : 87'

Height : 33'

Width : 60'

Area

Bonus: 240 sq/ft

First Floor: 2270 sq/ft

Second Floor: 1509 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Play Flex Room

Storage Area

Workshop

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Balcony

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

139 sq/ft width 12' 8" x depth 11'

Bedroom 4:

132 sq/ft width 11' x depth 12'

Bonus Room - Finished:

216 sq/ft width 18' x depth 12'

Breakfast Room:

192 sq/ft width 12' x depth 16'

Den/Office or Bedroom 1:

175 sq/ft width 12' 6" x depth 14'

Dining Room:

172 sq/ft width 11' 6" x depth 15'

Garage:

954 sq/ft width 23' x depth 41' 6"

Gathering Room:

383 sq/ft width 18' x depth 21' 4"

Kitchen:

224 sq/ft width 12' x depth 18' 8"

Living Room:

232 sq/ft width 14' 6" x depth 16'

Master Bedroom:

265 sq/ft width 15' x depth 17' 8"

What's Included In This Plan Set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1934.10

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$2114.10

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$2159.10

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$3868.20

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Unlimited Build:
$3868.20

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$504.90

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$202.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$45.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$135.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$405.00

Construction Guide:
$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$90.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
