PLAN #310-1095

Key Specs


4045
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Georgian design is the by-word of estate living. It speaks of aristocracy and high-society. And yet, it is never overstated or trite. This very formal Georgian was designed to be admired, but also to be lived in. It features handsome formal areas in a living room and formal dining room, but also an oversized family room with focal fireplace. The master suite is on the first floor, as is popluar with most homeowners today. Besides its wealth of amenities, it is located near a cozy study. Don't miss the private patio and sitting area with glass in the master bedroom. Upstairs, there are four family bedrooms with great closet space. A three-car garage has space for a golf cart and a work bench.

Floor Plans

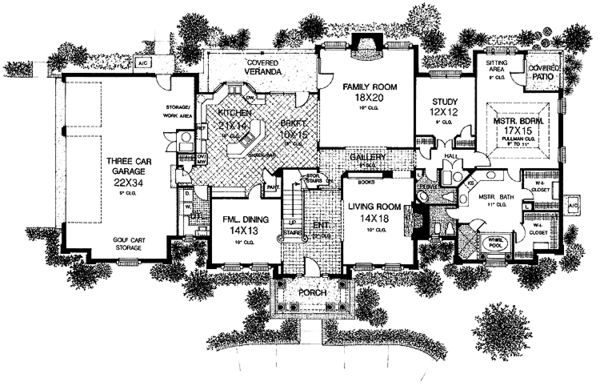

Floor Plan - Main Floor Plan
Classical Floor Plan - Main Floor Plan Plan #310-1095

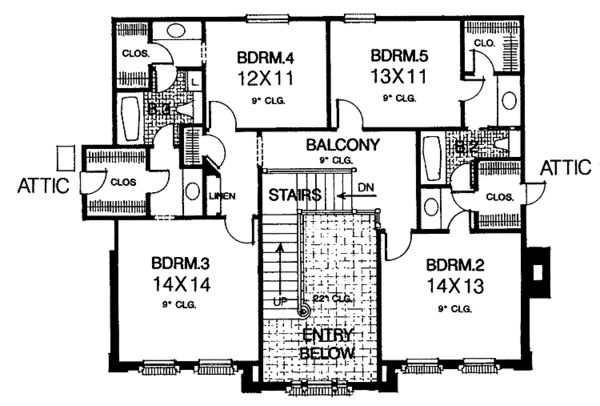

Floor Plan - Upper Floor Plan
Classical Floor Plan - Upper Floor Plan Plan #310-1095

Full Specs & Features


Dimension
Depth : 45' 10"
Height : 36'
Width : 98'
Area
First Floor: 2814 sq/ft height 9'
Second Floor: 1231 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Storage Area
Workshop
Loft
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Balcony
Rooms

Bathroom 2:

32 sq/ft width 8' x depth 4'

Bedroom 2:

182 sq/ft width 14' x depth 13'

Bedroom 3:

196 sq/ft width 14' x depth 14'

Bedroom 4:

132 sq/ft width 12' x depth 11'

Bedroom 5:

143 sq/ft width 13' x depth 11'

Breakfast Room:

157 sq/ft width 10' 6" x depth 15'

Dining Room:

182 sq/ft width 14' x depth 13'

Family Room:

370 sq/ft width 18' 6" x depth 20'

Foyer:

176 sq/ft width 11' x depth 16'

Garage:

748 sq/ft width 22' x depth 34'

Kitchen:

294 sq/ft width 21' x depth 14'

Living Room:

252 sq/ft width 14' x depth 18'

Master Bathroom:

2044 sq/ft width 120' 3" x depth 17'

Master Bathroom:

208 sq/ft width 12' 3" x depth 17'

Master Bedroom:

260 sq/ft width 16' 10" x depth 15' 6"

Master Closet - Hers:

56 sq/ft width 8' x depth 7'

Master Closet - His:

63 sq/ft width 7' x depth 9'

Pantry:

14 sq/ft width 3' 6" x depth 4'

Porch - Front:

98 sq/ft width 14' x depth 7'

Study:

144 sq/ft width 12' x depth 12'

Utility Room:

55 sq/ft width 6' x depth 9' 4"

What's Included In This Plan Set


  • Cover Sheet: Showing architectural rendering of residence
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
  • Foundation Plan and Details
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1795.00
5 printed plan sets mailed to you.
8 Copy Set :
$1935.00
8 printed plan sets mailed to you.
PDF Set :
$2085.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2085.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
$1740.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
65.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
