PLAN #84-508

Key Specs


4053
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Executive style home has a lot of special features for a growing family. Open living area with a gourmet style kitchen and oversized dining is perfect for entertaining. Master's suite has a spa like bath, double walk-in closet & door to back porch. Outdoor kitchen & generous porch awaits the barbeque. Private baths to each bedroom and a "Super Bowl" sized gameroom will please any teen.

Floor Plans

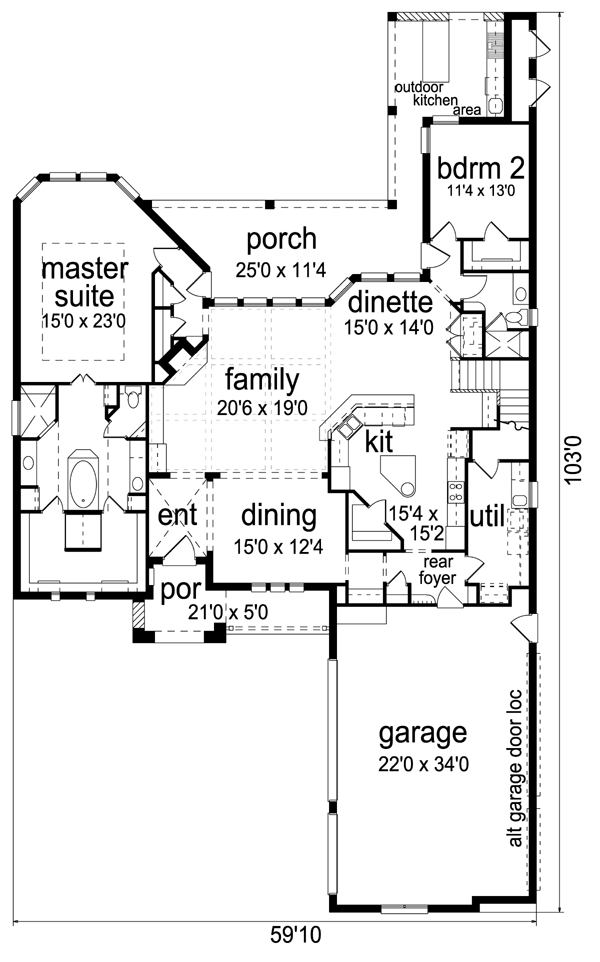

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

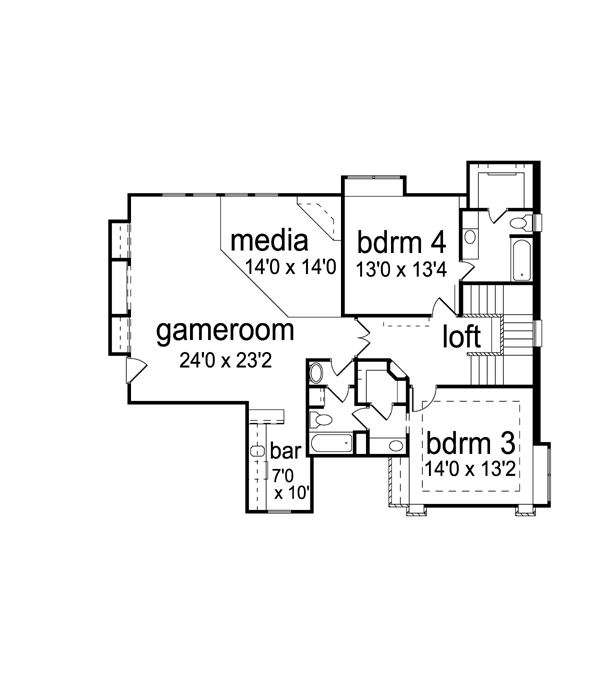

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 103'
Height : 33'
Width : 60'
Area Garage : 828 sq/ft
Main Floor : 2589 sq/ft
Porch : 659 sq/ft
Upper Floor : 1464 sq/ft
Ceiling Garage Ceiling : 8'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof Roof Framing : stick
Primary Pitch : 14:12
Roof Type : gables
Exterior Wall Framing Exterior Wall Finish : Brick, Stucco
Framing : 2"x4"
Bedroom Features Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features Butler's Pantry
Kitchen Island
Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Mud Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Wet Bar
Garage Features Side Entry Garage
Lot Characteristics Suited For Corner Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Code Compliance Irc 2003

What's Included In This Plan Set


Exceptional Environments, Inc.

  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1085.00
5 printed plan sets mailed to you.
8 Copy Set :
$1175.00
8 printed plan sets mailed to you.
PDF Set :
$1320.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1385.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2245.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$1025.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
