Full Specs & Features
Depth : 46'
Height : 33'
Width : 76' 6"

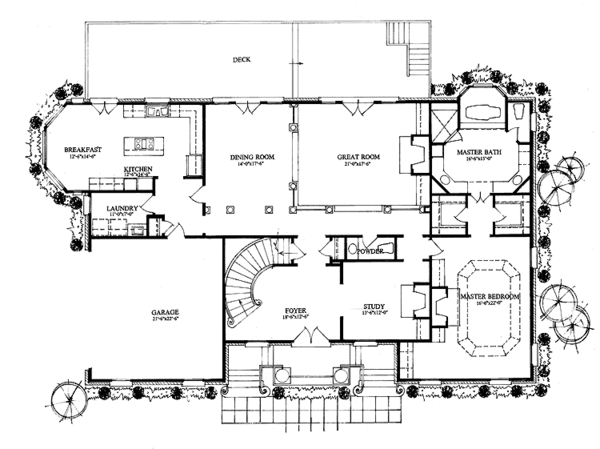

First Floor: 2493 sq/ft

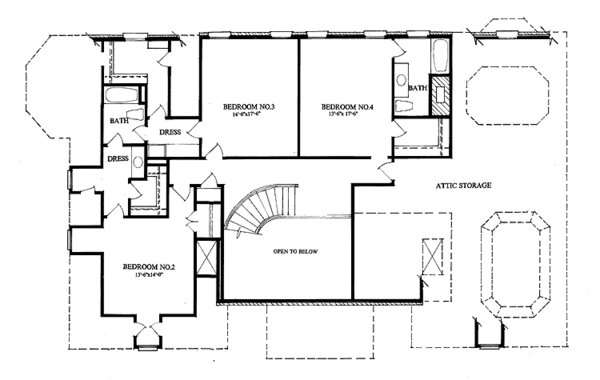

Second Floor: 1572 sq/ft
Primary Pitch : 5:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Additional Room Features
Den Office Study Computer
Great Room Living Room
Covered Front Porch
483 sq/ft width 21' 6" x depth 22' 6"
247 sq/ft width 16' 6" x depth 15'
352 sq/ft width 16' x depth 22'
31 sq/ft width 5' 4" x depth 6'
26 sq/ft width 3' 6" x depth 7' 6"
77 sq/ft width 11' x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

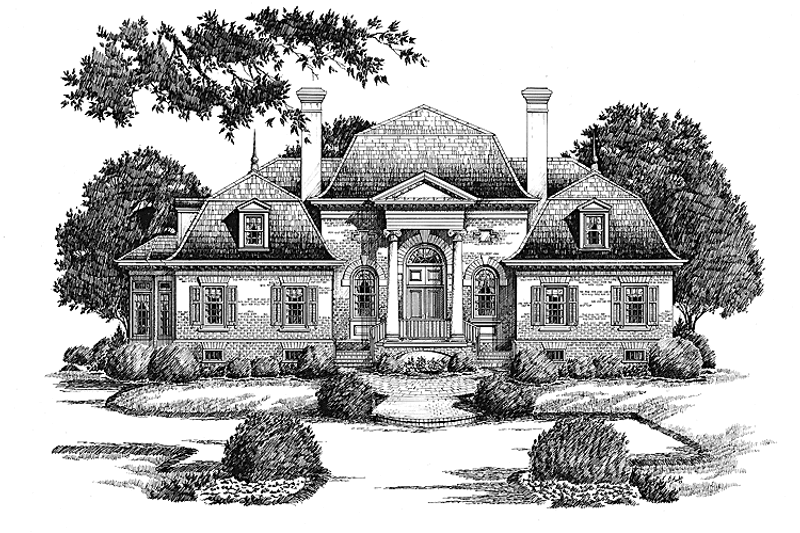

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
