Key Specs
4075
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 23-292
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

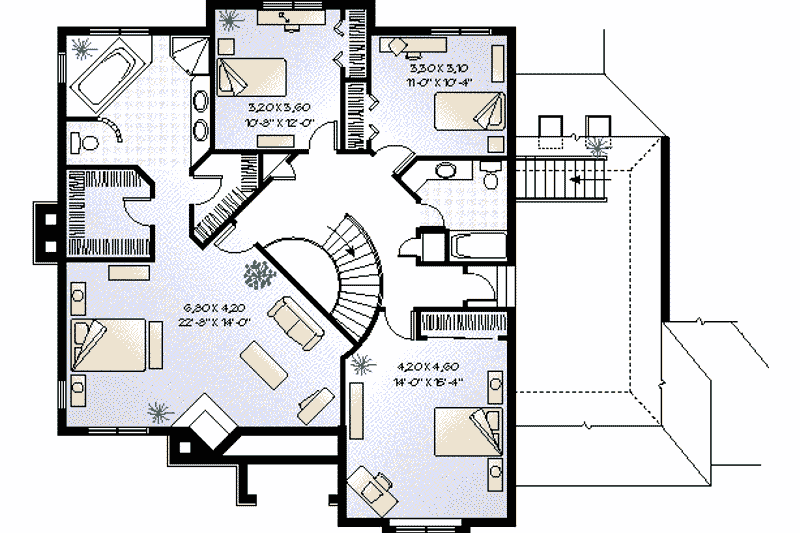

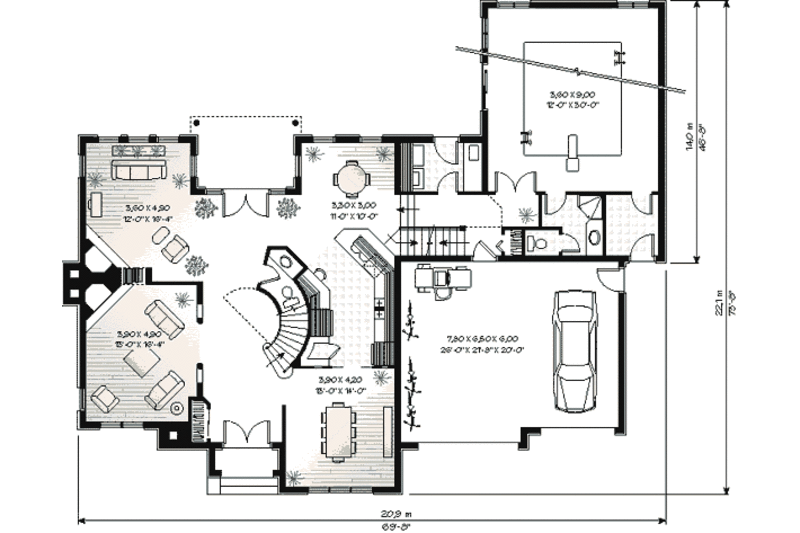

Floor Plans
Full Specs & Features
Dimension
Depth : 73' 8"
Height : 32'
Width : 69' 8"
Area
Bonus: 359 sq/ft
First Floor: 2579 sq/ft height 9'
Garage: 584 sq/ft
Second Floor: 1496 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
Rooms
3rd BR Closet:
11 sq/ft width 2' x depth 5' 10"
Bathroom 2:
59 sq/ft width 7' 4" x depth 8' 2"
Bathroom 3:
67 sq/ft width 9' 2" x depth 7' 4"
Bedroom 2:
128 sq/ft width 10' 8" x depth 12'
Bedroom 2 Closet:
11 sq/ft width 2' x depth 5' 10"
Bedroom 3:
113 sq/ft width 11' x depth 10' 4"
Bedroom 3 Closet:
11 sq/ft width 2' x depth 5' 10"
Bedroom 4:
214 sq/ft width 14' x depth 15' 4"
Bedroom 4 Closet:
14 sq/ft width 7' 4" x depth 2'
Dining Room:
110 sq/ft width 11' x depth 10'
Garage:
551 sq/ft width 25' 10" x depth 21' 4"
Gathering Room:
212 sq/ft width 13' x depth 16' 4"
Kitchen:
192 sq/ft width 10' 8" x depth 18'
Laundry Room:
55 sq/ft width 9' 10" x depth 5' 8"
Living Room:
201 sq/ft width 12' 4" x depth 16' 4"
Master Bathroom:
128 sq/ft width 11' 10" x depth 10' 10"
Master Bedroom:
317 sq/ft width 22' 8" x depth 14'
Master Closet:
51 sq/ft width 7' x depth 7' 4"
Porch - Front:
24 sq/ft width 7' 8" x depth 3' 2"
Powder Room:
33 sq/ft width 6' 2" x depth 5' 6"
What's Included In This Plan Set
-
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
Plan Set
$1993.50
$2106.00
$2106.00
$2533.50
Foundation
$0.00
$337.50
$337.50
$337.50
Additional Options
$180.00
$54.00
$90.00
$35.10
$180.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
