PLAN 17-2491
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

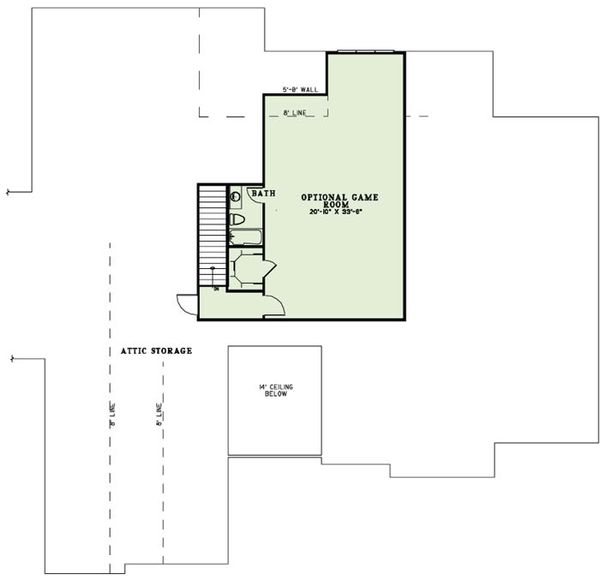

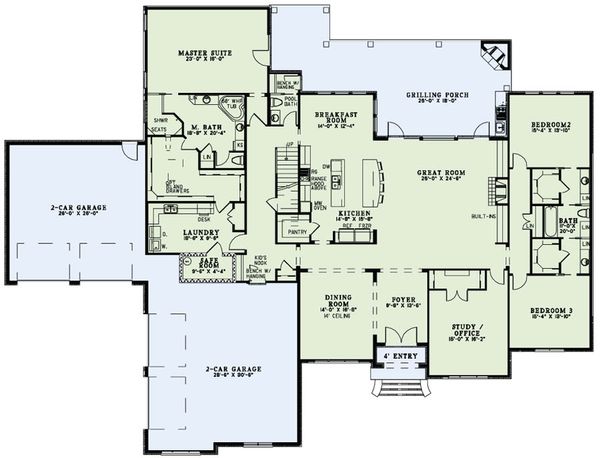

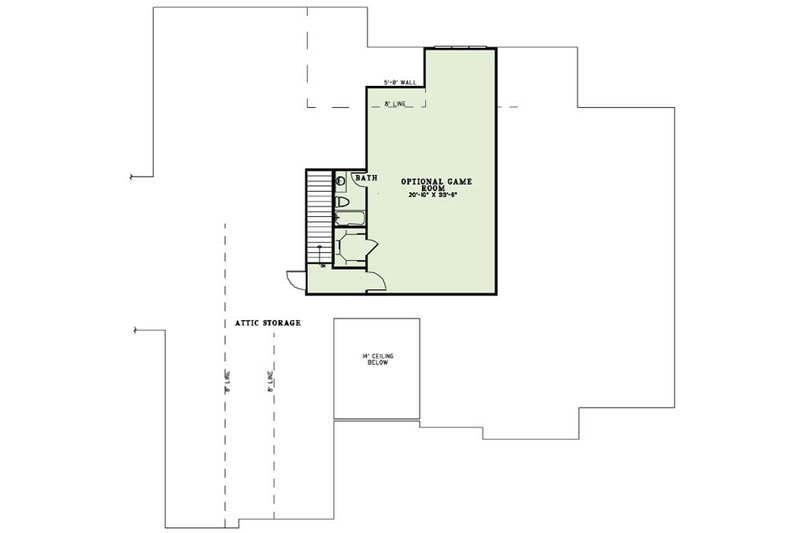

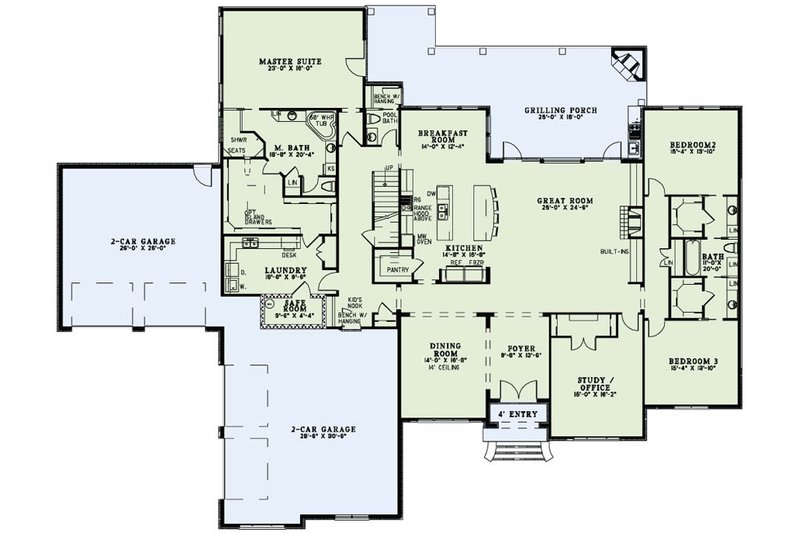

The split bedroom open floor plan boasts a large Great Room featuring a fireplace flanked by built-in shelves and access to a huge Grilling Porch. The Great Room is also open to the kitchen which has a prep island and an eat-at island bar, perfect for buffet style meals, and a walk-in pantry. The Master Suite also has access to the Grilling Porch while the bathroom offers a large corner shower with seats, a corner whirlpool tub and a huge walk-in closet that has convenient access to the very spacious laundry room. And you can feel secure with the Safe Room that?s off the laundry room. Bedrooms 2 and 3 are on the opposite side of the home and each have walk-in closets and share a bathroom. The study or office is located off of the Great Room and has a nice sized walk-in closet. And last but not least is the massive optional Game Room upstairs. It contains another full bathroom and a walk-in closet.
Full Specs & Features
Dimension
Depth : 85'
Height : 37'
Width : 111' 8"
Height : 37'
Width : 111' 8"
Area
Bonus: 947 sq/ft
First Floor: 4076 sq/ft
First Floor: 4076 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 8'
Main Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Framing : Stick
Roof Load : 45
Roof Type : Shingle
Roof Framing : Stick
Roof Load : 45
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13
Framing : 2x4
Insulation : R-13
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Great Room Living Room
Garage Features
Side Entry Garage
Split Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Rooms
Bath 2:
width 11' x depth 20'
Bedroom 2:
width 15' 4" x depth 13' 10"
Bedroom 3:
width 15' 4" x depth 13' 10"
Breakfast Room:
width 14' x depth 12' 4"
Dining Room:
width 14' x depth 16' 8"
Foyer:
width 9' 8" x depth 13' 6"
Great Room:
width 25' x depth 24' 6"
Kitchen:
width 14' 6" x depth 15' 8"
Laundry Room:
width 18' 6" x depth 9' 6"
Master Bath:
width 18' 6" x depth 20' 4"
Master Suite:
width 23' x depth 16'
Safe Room:
width 9' 6" x depth 4' 4"
Study/Office:
width 16' x depth 16' 2"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
