PLAN 132-390
Key Specs
4080
sq ft
5
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 132-390
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

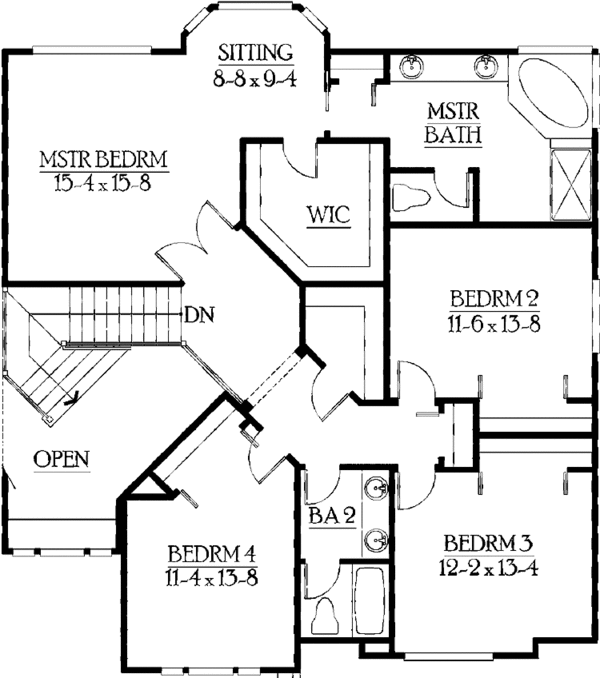

Greek and Craftsman elements, such as columns and arches, combine to form an appealing home. The interior is equally pleasing, with a landing staircase in the foyer. A combined living and dining room accommodates formal occasions while casual gatherings may occur in the family room, which is open to the kitchen and breakfast nook. There are four bedrooms upstairs, including the master suite. Homeowners can relax here in the bayed sitting area or the corner spa tub. Two hallway closets offer optimum storage.
Full Specs & Features
Dimension
Depth : 49'
Height : 29' 11"
Width : 68'
Height : 29' 11"
Width : 68'
Area

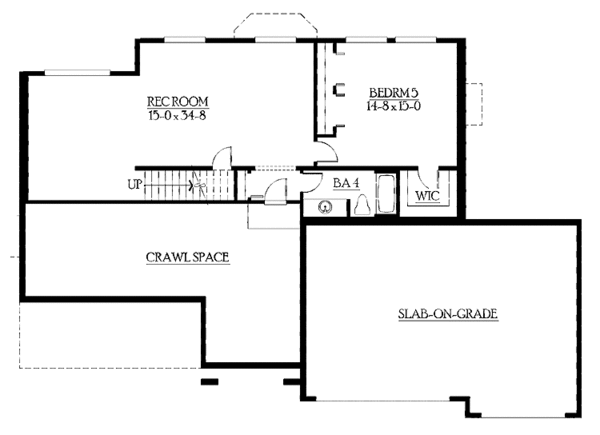

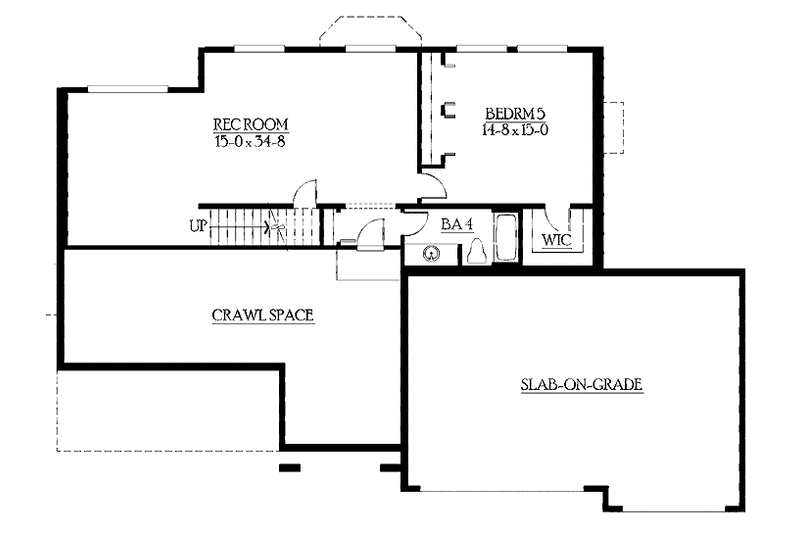

Basement Living: 1065 sq/ft

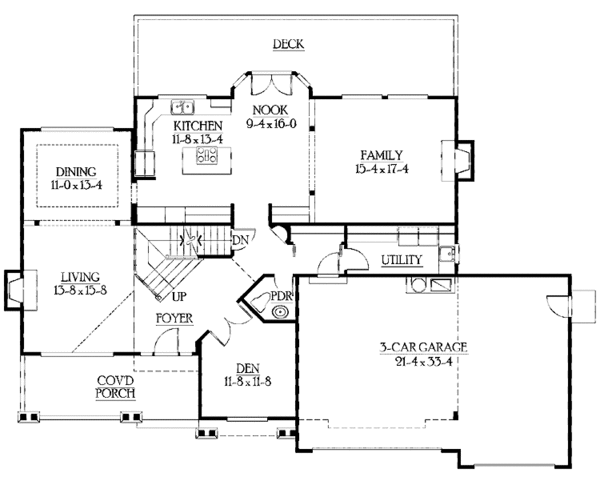

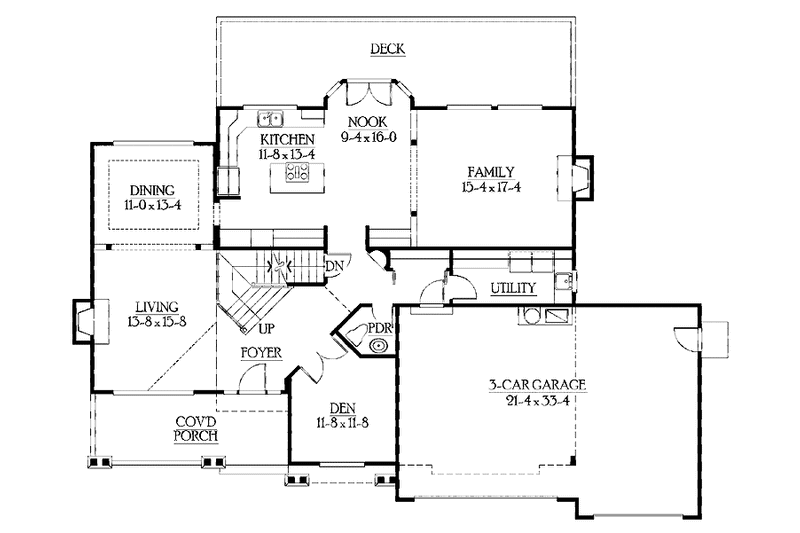

First Floor: 1595 sq/ft
Garage: 775 sq/ft

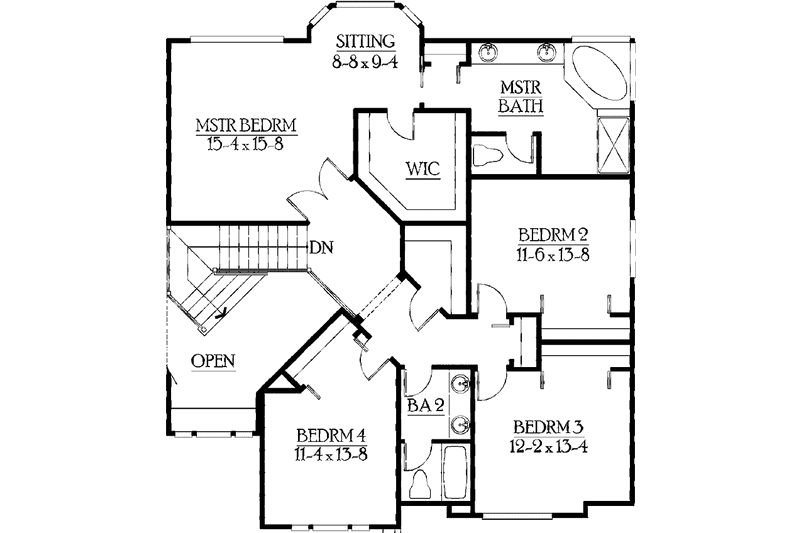

Second Floor: 1420 sq/ft
First Floor: 1595 sq/ft
Garage: 775 sq/ft
Second Floor: 1420 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Covered Front Porch
Covered Rear Porch
Deck
Rooms
Bedroom 2:
157 sq/ft width 11' 6" x depth 13' 8"
Bedroom 3:
162 sq/ft width 12' 2" x depth 13' 4"
Bedroom 4:
154 sq/ft width 11' 4" x depth 13' 8"
Bedroom 5:
232 sq/ft width 14' 8" x depth 15' 10"
Den:
136 sq/ft width 11' 8" x depth 11' 8"
Dining Room:
146 sq/ft width 11' x depth 13' 4"
Family Room:
259 sq/ft width 15' x depth 17' 4"
Garage:
711 sq/ft width 21' 4" x depth 33' 4"
Kitchen:
155 sq/ft width 11' 8" x depth 13' 4"
Living Room:
210 sq/ft width 13' 5" x depth 15' 8"
Master Bedroom:
240 sq/ft width 15' 4" x depth 15' 8"
Master Sitting Area:
80 sq/ft width 8' 8" x depth 9' 4"
Master Walk-In Closet:
87 sq/ft width 9' 4" x depth 9' 4"
Nook:
149 sq/ft width 9' 4" x depth 16'
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license.
If you are building this plan in the state of Washington, please call us before placing your order.
-
This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
