PLAN #117-858

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

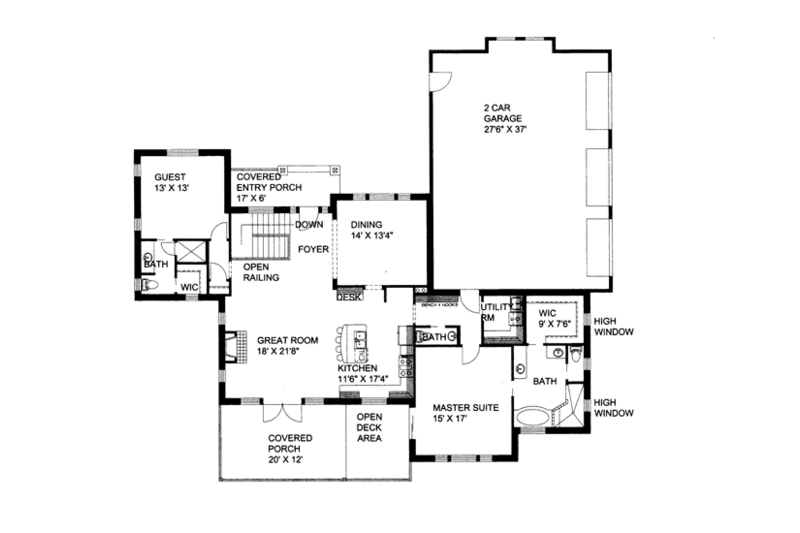

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #117-858

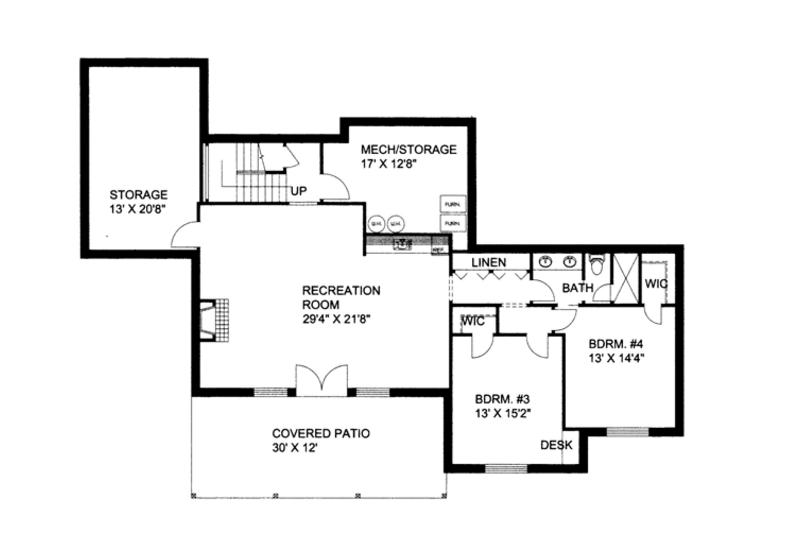

Floor Plan - Lower Floor Plan
Craftsman Floor Plan - Lower Floor Plan Plan #117-858

Full Specs & Features

Depth : 66' 6"
Height : 20' 7"
Width : 74' 6"
Basement Living: 2043 sq/ft height 9'
First Floor: 2043 sq/ft height 9'
Garage: 1085 sq/ft
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Kitchen Features
Kitchen Island
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 3:

width 13' x depth 15' 2"

Bedroom 4:

width 13' x depth 14' 4"

Covered Front Porch:

width 17' x depth 6'

Covered Rear Porch:

width 20' x depth 12'


width 14' x depth 13' 4"


1085 sq/ft width 27' 6" x depth 37'

Great Room:

width 18' x depth 21' 8"

Guest Suite:

width 13' x depth 13'


width 11' 6" x depth 17' 4"

Master Bedroom:

width 15' x depth 17'

Master Closet:

width 9' x depth 7' 6"

Mechanical Room:

width 17' x depth 12' 8"

Rec. Room:

width 29' 4" x depth 21' 8"


width 13' x depth 20' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Insulated Concrete Forms:
Insulated Concrete Forms
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
