PLAN #132-241

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

With plenty of comfortable, bright rooms to gather in, this award-winning Craftsman design is perfectly suited for an active family, or anyone who likes space to entertain. Enjoy summer evenings from the wraparound porch or the covered patio out back. A side-entry garage and decorative shop bay enhance curb appeal. Near the front of the home, the formal dining room includes a vaulted ceiling and a view beyond the columned arches of the living room and fireplace. Head back to relax in the family room, which features a handsome fireplace and opens to the large island kitchen. The bayed breakfast nook on the other side of the kitchen enjoys French doors opening to a covered patio. Also on this level, a generously sized den/home office makes working from home more than comfortable. Or, use this bright space as a library, media room, or even for a home business. Upstairs, the grand master suite enjoys a walk-in closet, a bayed sitting area, and a private bath with a garden tub. A second stairway provides quiet access to the children’s bedrooms, where a connecting bath, guest suite with private bath, and a large vaulted bonus room, perfect as a playroom or home theater, await. The plan earned first place in the Published Designs category in the 2007 American Residential Design Awards.

Floor Plans

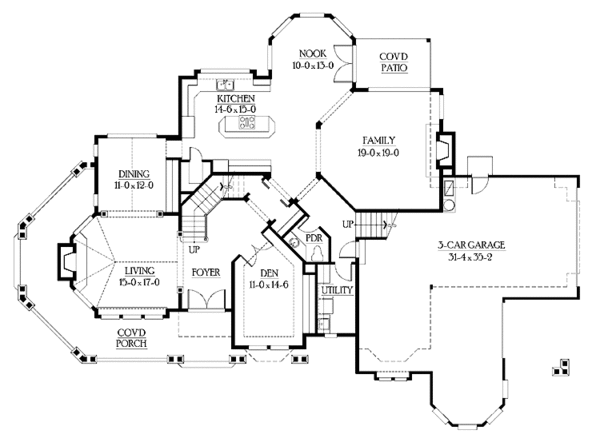

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #132-241

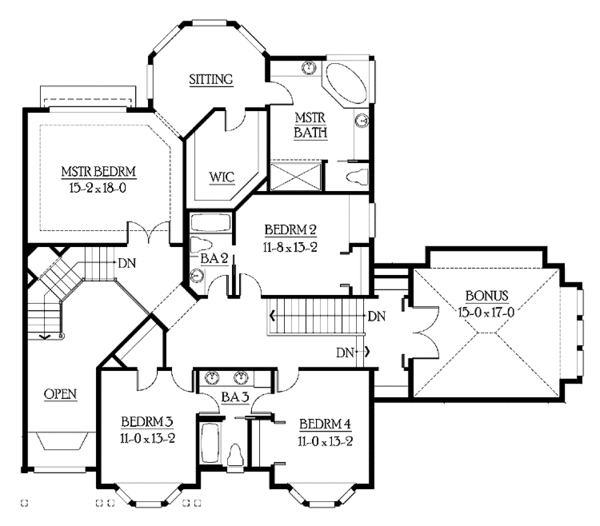

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #132-241

Full Specs & Features

Depth : 66' 6"
Width : 90'
First Floor: 2010 sq/ft
Garage: 975 sq/ft
Second Floor: 2090 sq/ft
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Jack Jill Bath
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Loft Balcony
Wrap Around Porch

Bath 2:

width 5' x depth 9' 8"

Bath 3:

width 8' 4" x depth 11' 2"

Bedroom 2:

153 sq/ft width 11' 8" x depth 13' 2"

Bedroom 3:

144 sq/ft width 11' x depth 13' 2"

Bedroom 4:

144 sq/ft width 11' x depth 13' 2"

Bonus Room - Finished:

255 sq/ft width 15' x depth 17'


159 sq/ft width 11' x depth 14' 6"

Dining Room:

217 sq/ft width 14' 6" x depth 15'

Family Room:

361 sq/ft width 19' x depth 19'


width 8' x depth 10' 9"


217 sq/ft width 14' 6" x depth 15'

Living Room:

255 sq/ft width 15' x depth 17'

Master Bath:

width 11' 6" x depth 15' 2"

Master Bedroom:

273 sq/ft width 15' 2" x depth 18'


width 4' 10" x depth 4' 10"

Powder Room:

width 5' 4" x depth 6' 8"

Sitting Area:

width 9' 6" x depth 13'

Utility Room:

width 6' 2" x depth 11' 2"

Walk In Closet:

width 9' 4" x depth 11' 4"

What's Included In This Plan Set

Purchasing a CAD set or PDF set gives you a multi-build license. The 5 copy set allows you to build the home one time.

If you are building this plan in the state of Washington, please call us before placing your order.
  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
