Full Specs & Features
Depth : 83'
Height : 37' 1"
Width : 75' 2"

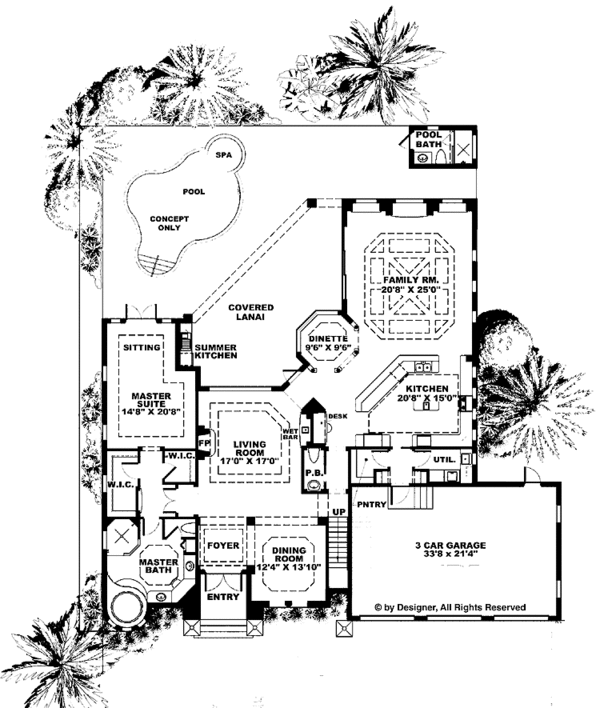

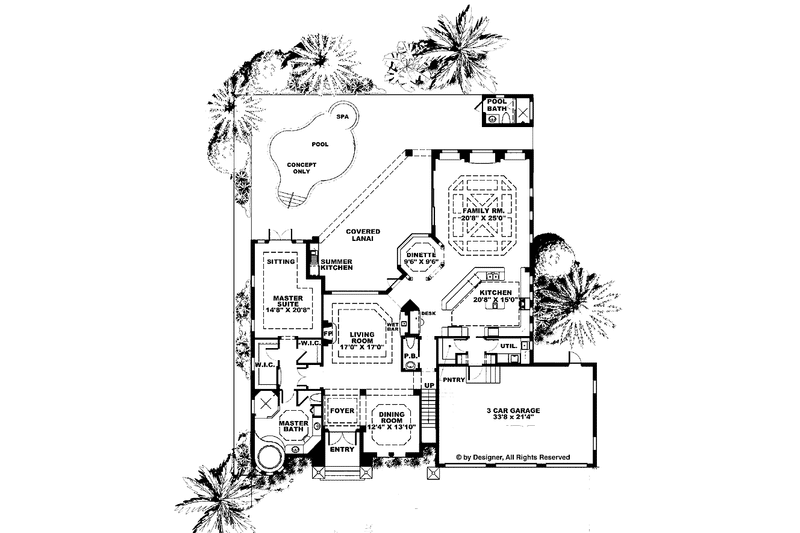

First Floor: 2706 sq/ft
Garage: 767 sq/ft

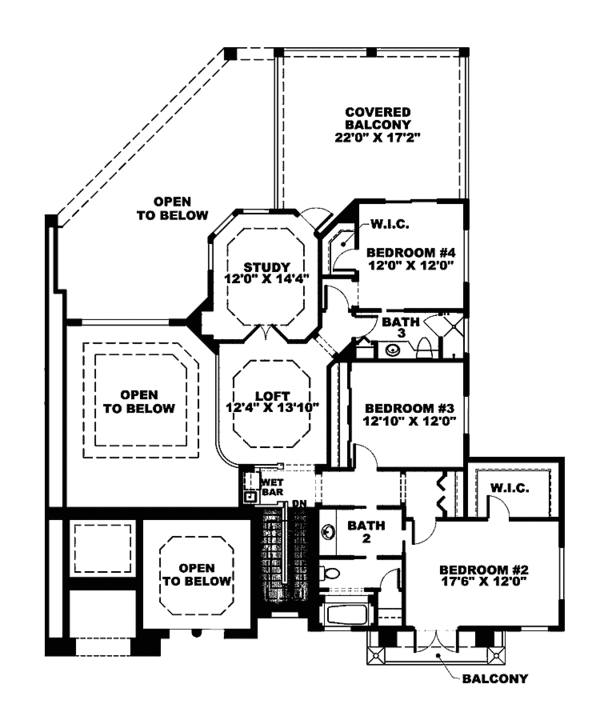

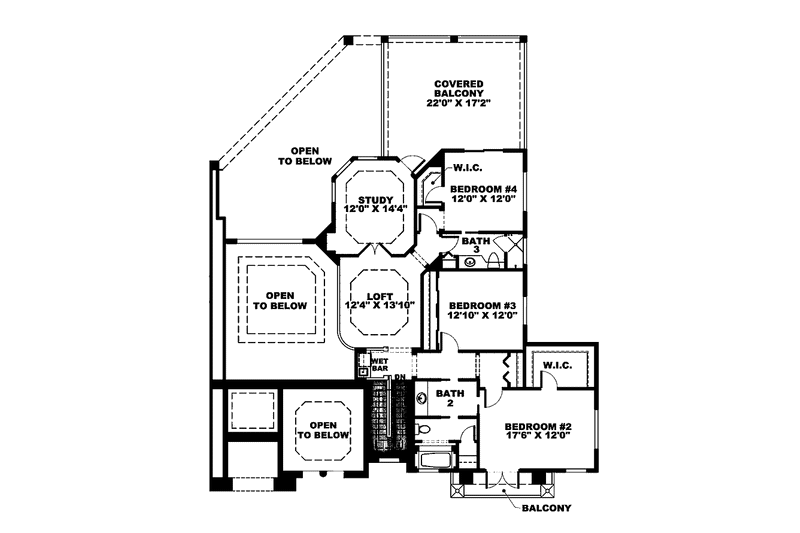

Second Floor: 1432 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings
210 sq/ft width 17' 6" x depth 12'
153 sq/ft width 12' 10" x depth 12'
144 sq/ft width 12' x depth 12'
718 sq/ft width 33' 8" x depth 21' 4"
310 sq/ft width 20' 8" x depth 15'
170 sq/ft width 12' 4" x depth 13' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
