Full Specs & Features
Depth : 69'
Height : 29' 8"
Width : 35'
Decks : 444 sq/ft
Garage : 568 sq/ft

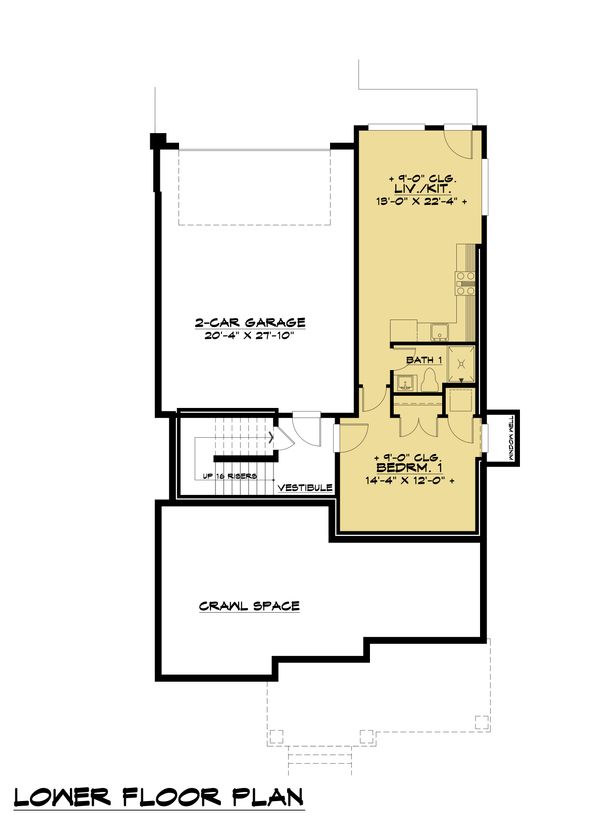

Lower Floor : 690 sq/ft

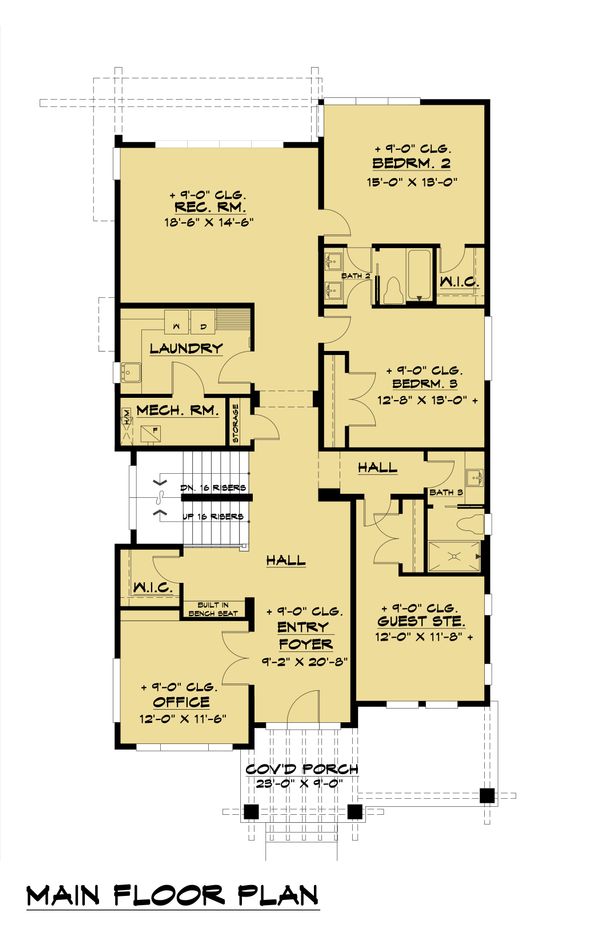

Main Floor : 1869 sq/ft
Porch : 188 sq/ft

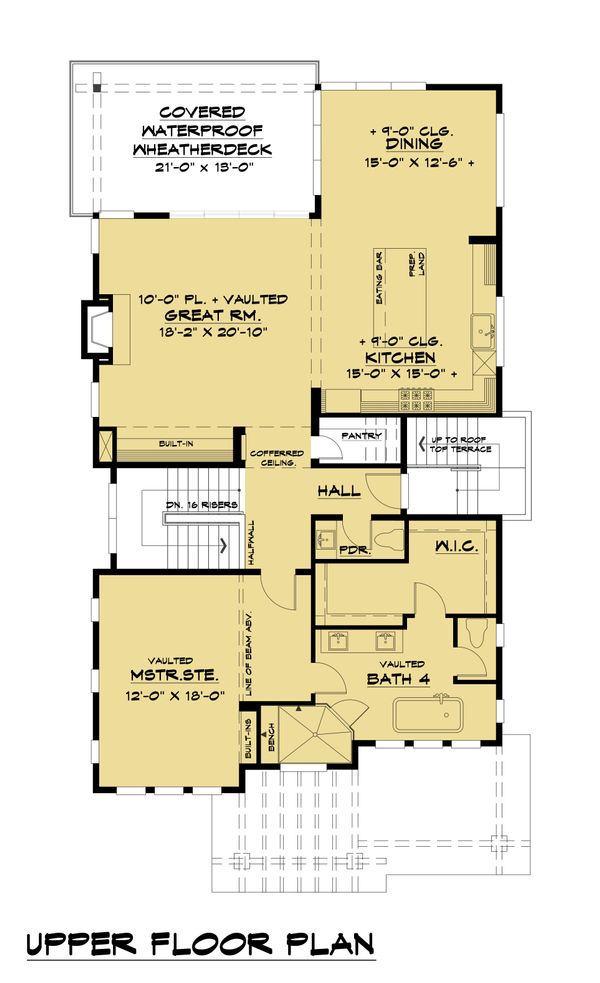

Upper Floor : 1555 sq/ft
Ceiling Details : Great room ceiling is 10'.
Garage Ceiling : 9'
Lower Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Primary Pitch : 8/12
Roof Framing : Trusses and Flat Trusses
Roof Load : 25 PSF
Roof Type : Composition Shingles
Secondary Pitch : .25/12
Exterior Wall Framing
Exterior Wall Finish : Horizontal Siding and Board and Batten
Framing : 2X6
Insulation : R21
Lower Level Bedrooms
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Covered Front Porch
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
