PLAN #54-345

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

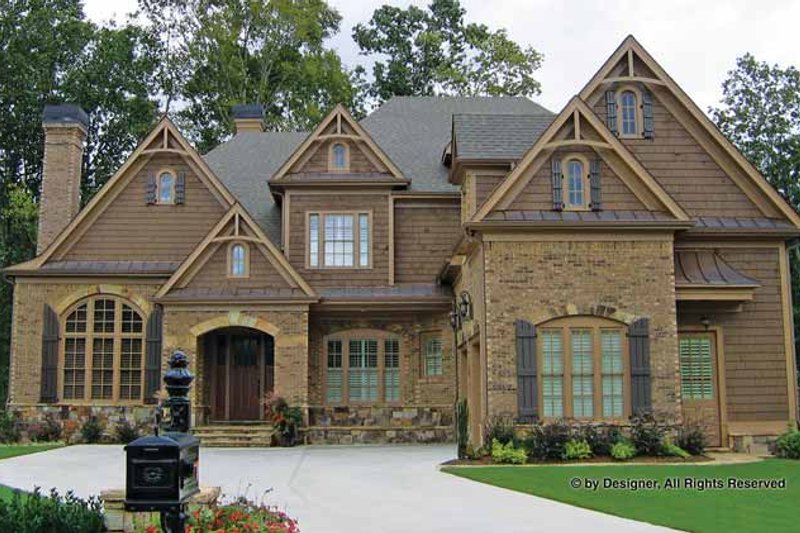

Instantly memorable, this Traditional home with Craftsman influences offers a family-friendly design perfect for any neighborhood. The roomy first floor is defined by arches rather than walls, providing a seamless flow and fluid movement. The master suite is afforded privacy here. The second floor houses three additional bedrooms, including a princess suite, and a television room. The rear hearth-warmed covered porch and deck add appeal.

Floor Plans

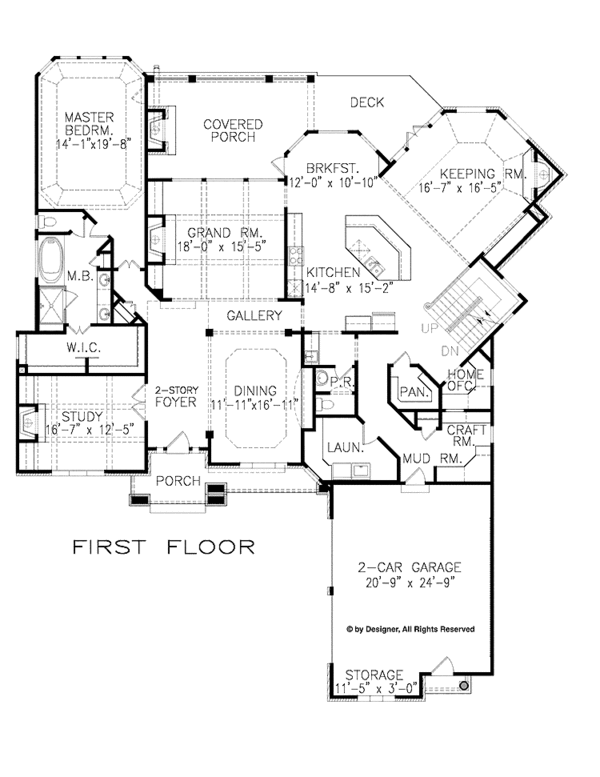

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #54-345

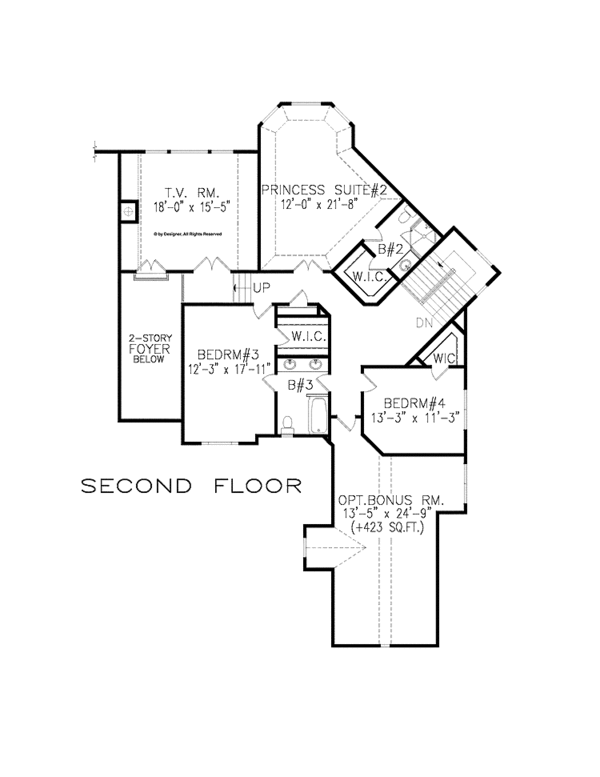

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #54-345

Full Specs & Features

Depth : 85'
Height : 35' 5"
Width : 72' 8"
Bonus: 423 sq/ft
First Floor: 2879 sq/ft height 10'
Garage: 569 sq/ft
Second Floor: 1266 sq/ft height 9'
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

260 sq/ft width 12' x depth 21' 8"

Bedroom 3:

219 sq/ft width 12' 3" x depth 17' 11"

Bedroom 4:

149 sq/ft width 13' 3" x depth 11' 3"

Bonus Room - Unfinished:

332 sq/ft width 13' 5" x depth 24' 9"


129 sq/ft width 12' x depth 10' 10"

Dining Room:

201 sq/ft width 11' 11" x depth 16' 11"


513 sq/ft width 20' 9" x depth 24' 9"

Grand Room:

277 sq/ft width 18' x depth 15' 5"

Keeping Room:

272 sq/ft width 16' 7" x depth 16' 5"


222 sq/ft width 14' 8" x depth 15' 2"

Master Bedroom:

276 sq/ft width 14' 1" x depth 19' 8"


205 sq/ft width 16' 7" x depth 12' 5"

TV Room/Bedroom:

277 sq/ft width 18' x depth 15' 5"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


Ideal for level lot, lower level of home partially or fully underground.


Wood 2x4:
Wood 2x4

Additional Options

Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
