PLAN #48-807

Key Specs


4150
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Craftsman detailing and a Victorian flair make this home a standout in any neighborhood. An impressive foyer opens to the left to the great room, with a coffered ceiling, warming fireplace, and a charming alcove set in a turret. The kitchen is designed for entertaining, with an island that doubles as a snack bar and plenty of room to move. An adjacent porch invites dining alfresco. The bayed study is peaceful and quiet. A nearby guest room includes a private bath. Upstairs, the master suite is awe-inspiring. A romantic fireplace sets the mood and natural light pours in. A sumptuous spa bath leaves homeowners pampered and relaxed. Two bedroom suites share a vaulted bonus room, perfect as a home gym.

Floor Plans

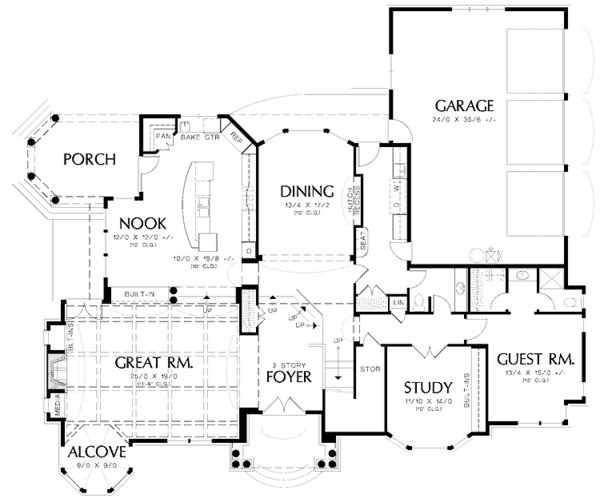

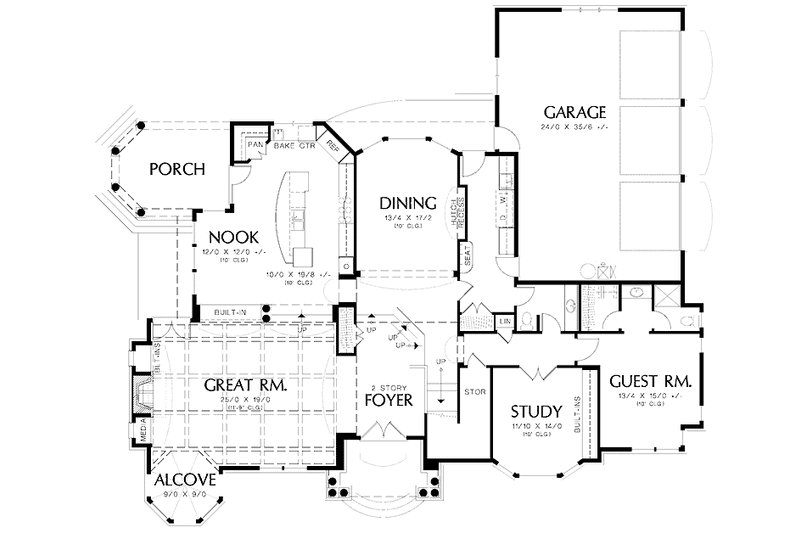

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

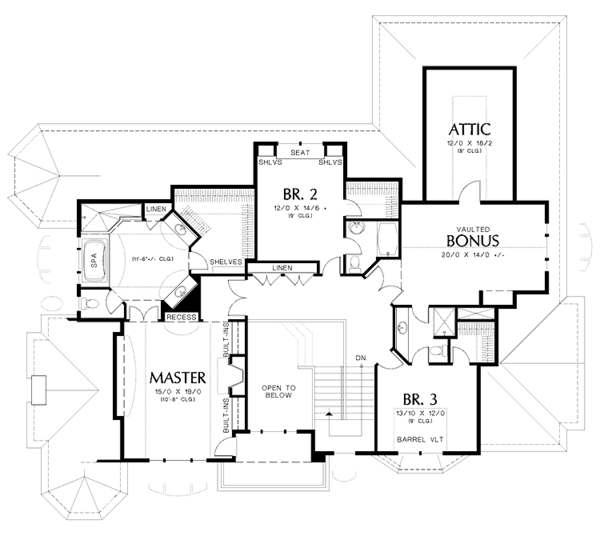

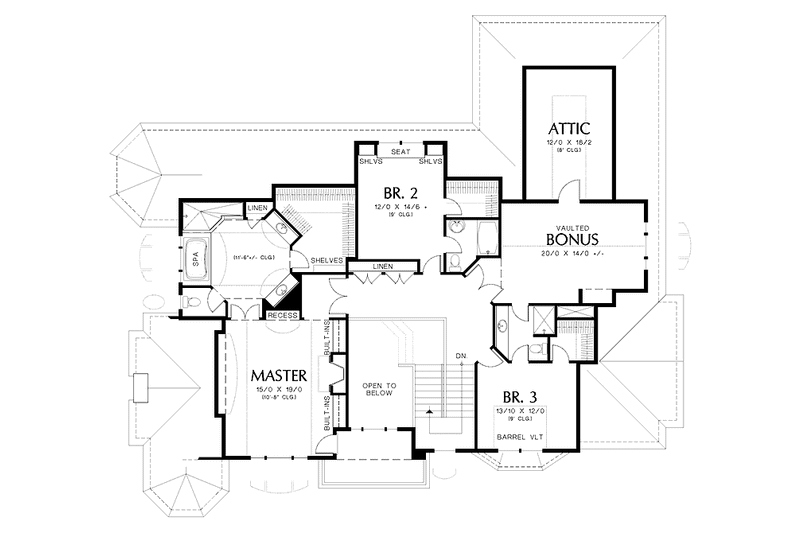

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Bonus : 315 sq/ft
Main Floor : 2572 sq/ft
Upper Floor : 1578 sq/ft
Bedroom Features Guest Suite
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Workshop
Open Floor Plan
Garage Features Side Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Outdoor Kitchen Grill

What's Included In This Plan Set


Alan Mascord Design Associates

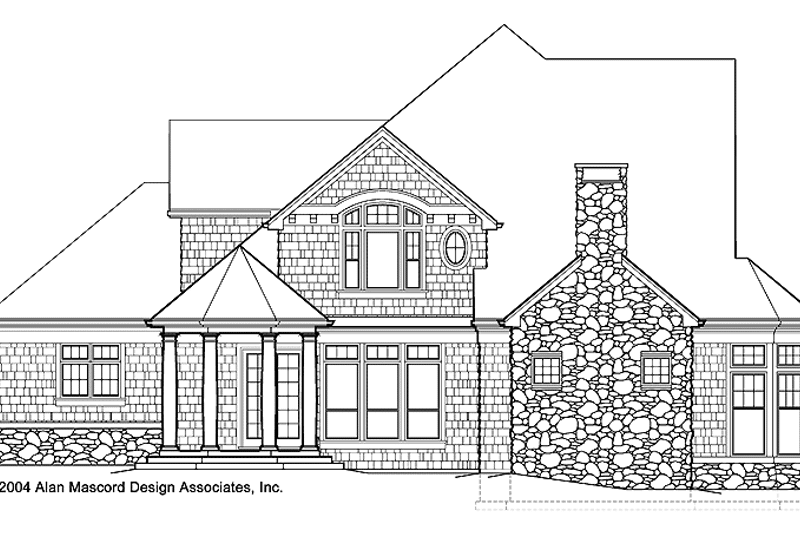

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
» See important information before purchasing.
Plan Set
PDF Set :
$1550.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1600.00
5 printed plan sets mailed to you.
CAD Set :
$3100.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$185.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Right-Reading Reverse :
100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
20.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
