PLAN 17-3390

Key Specs

4183
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This Contemporary split bedroom home is loaded with luxury and has many rooms with vaulted ceilings throughout. From the impressive porte cochere entrance, you’re welcomed into the huge great room with a vaulted ceiling with sky window, fireplace is flanked by built-ins and sliding doors opening to a vaulted rear porch. The large kitchen makes entertaining easy with an island bar, a prep island and adjacent dining room. The master suite has a fireplace, vaulted ceiling and master bath that offers a whirlpool tub, corner glass shower and a huge 22’ walk-in closet. On the opposing side of the house, two bedrooms share a Jack & Jill bathroom and there is an additional bedroom that could be used as an exercise room. At the end of the bedroom wing, there is large pool room that features a kitchen, fireplace, full bath, and dressing room. The 3-car garage has a safe room and additional storage.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

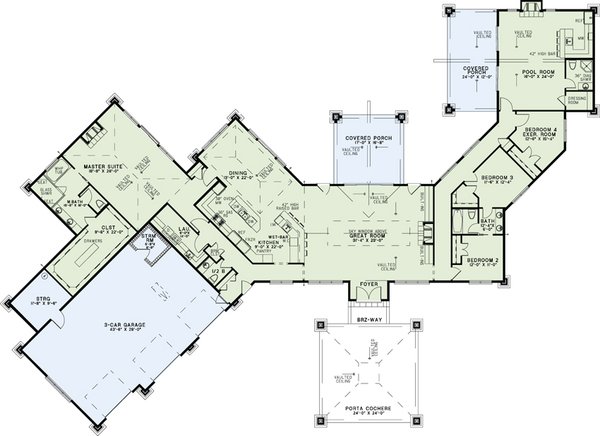

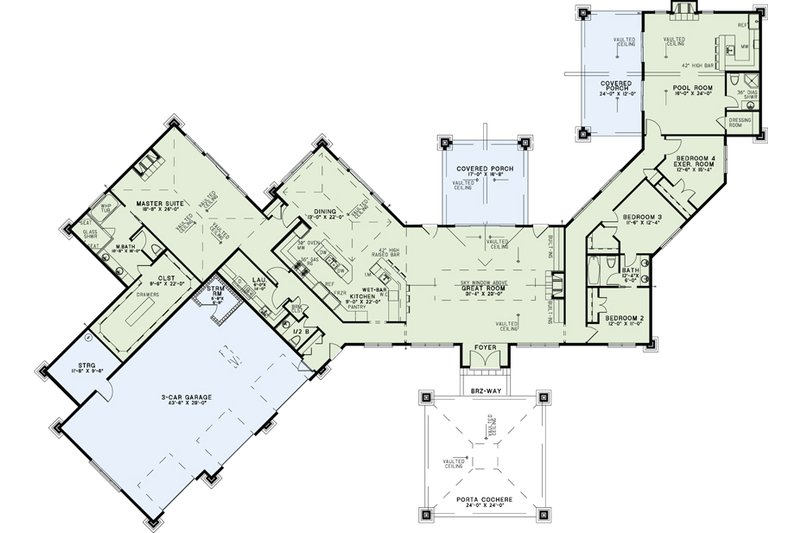

Contemporary Floor Plan - Main Floor Plan Plan #17-3390

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 104' 11"
Height : 21'
Width : 144' 3"

Area

First Floor: 4183 sq/ft height 9'
Garage: 1933 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Bedroom Features

Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch

Jack & Jill Bath

Rooms

Bath - pool room:

width 6' 6" x depth 7' 4"

pool room dressing room:

width 6' 6" x depth 4' 6"

What's Included In This Plan Set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

» See important information before purchasing.

Questions? Call 1-800-447-0027

Plan Set

PDF Set : $2025.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $2115.00	5 printed plan sets mailed to you.
5 Copy and PDF Set : $2340.00	5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $4050.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4: $0.00	Wood 2x4
Wood 2x6: $269.10	Wood 2x6

Additional Options

Right-Reading Reverse : $179.10	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $67.50	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $180.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Roof Framing Detail : $134.10	Get a detailed plan for your roof framing.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
