PLAN 930-188

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

4255
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Additional Construction Sets
$58.50/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List
$175.50
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Subtotal
NOW $2603.70
You save $289.30 (10% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 930-188

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


This European stucco exterior provides great curb appeal and conceals a thoroughly modern arrangement of public and private rooms. A dramatic arched entry announces an open foyer that offers interior vistas and outdoor views through the formal rooms. A mitered wall of glass and a vaulted ceiling in the living room provide a spectacular introduction to this grand manor. The kitchen connects to the dining room through a butler’s pantry. French doors lead from a central gallery to the master wing. The suite provides a sitting bay, lanai access, a soaking tub, and a compartmented toilet. Nearby, French doors lead to a study that converts to a library or office. Retreating glass walls connect the formal rooms to an area of the lanai that serves as an entertainment terrace.

Full Specs & Features


Dimension

Depth : 116' 11"

Height : 28'

Width : 91' 6"

Area

First Floor: 4255 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Master Sitting Area

Open Floor Plan

Storage Area

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Rear Porch

Grill Deck Sundeck

Rooms

3rd BR Closet:

26 sq/ft width 6' 8" x depth 4'

Bedroom 2:

186 sq/ft width 13' 2" x depth 14' 2"

Bedroom 2 Closet:

22 sq/ft width 4' x depth 5' 8"

Bedroom 3:

214 sq/ft width 13' x depth 16' 6"

Bedroom 3 Closet:

22 sq/ft width 4' x depth 5' 8"

Breakfast Room:

132 sq/ft width 12' x depth 11'

Dining Room:

145 sq/ft width 16' x depth 9' 1"

Foyer:

150 sq/ft width 12' 6" x depth 12'

Game Room:

192 sq/ft width 16' 6" x depth 11' 8"

Kitchen:

250 sq/ft width 16' 8" x depth 15'

Laundry Room:

48 sq/ft width 4' 10" x depth 10'

Living Room:

356 sq/ft width 23' x depth 15' 6"

Master Bathroom:

305 sq/ft width 16' 6" x depth 18' 6"

Master Closet:

46 sq/ft width 7' 9" x depth 6'

Powder Room:

39 sq/ft width 6' 6" x depth 6'

What's Included In This Plan Set


This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.

Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

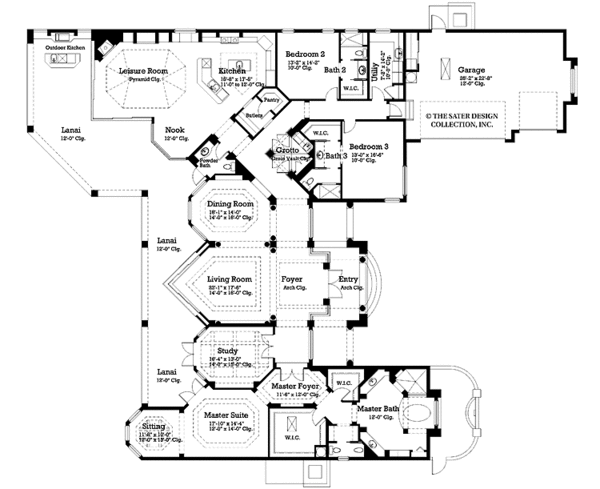

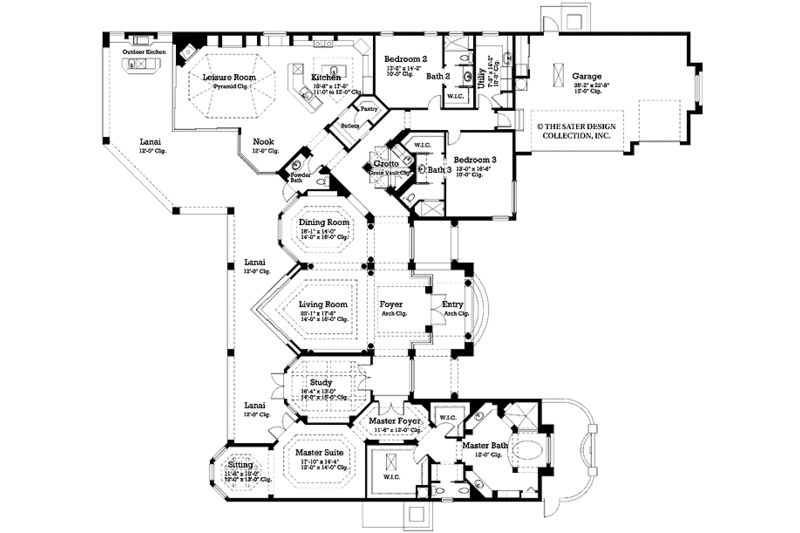

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: This designer's most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

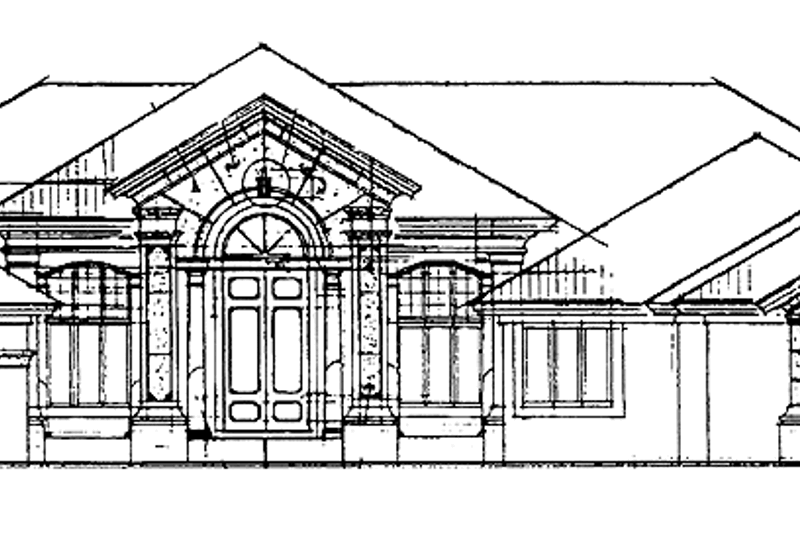

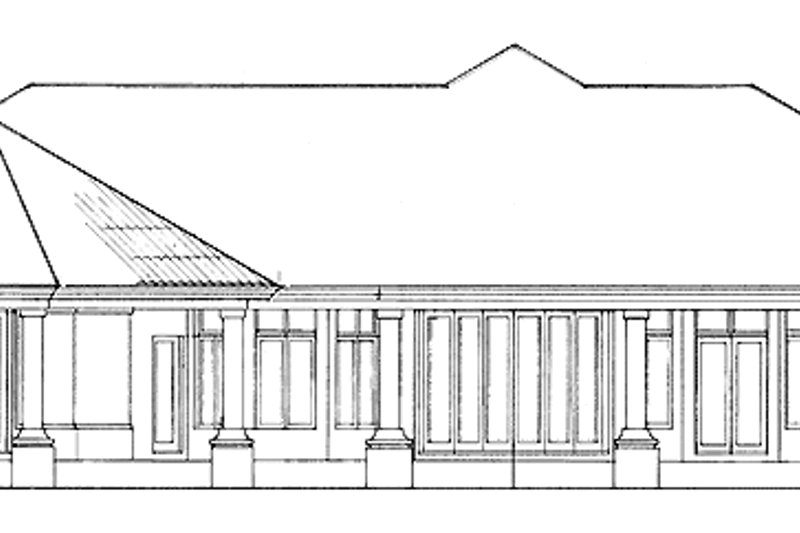

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.
