Key Specs


4256
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


You will enjoy the casual elegance of this house plan! It is a perfect coastal home! On the quaint front porch, there is a radial area and cupola above, perfect for a front porch swing. Inside, this great room floor plan opens up into a perfect space for entertaining with a large, gourmet kitchen and dining room. Each room has its own special feature, most with intricate ceiling details even on the covered lanai. A fun cabana is incorporated into this coastal home plan for those wanting to get out of the sun but still enjoy the outdoors. Upstairs you will find another covered lanai, 3 guest rooms, a bonus room and a loft with wet bar. This plan offers the opportunity to add an elevator in the center of the stairs. If you’ve got a great waterfront lot, this house plan is for you!

Floor Plans

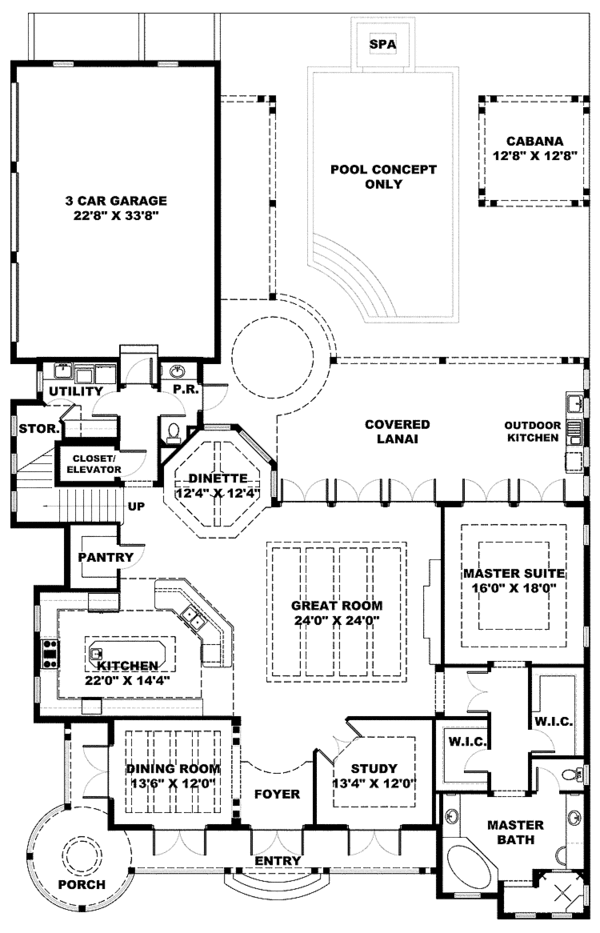

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #1017-130

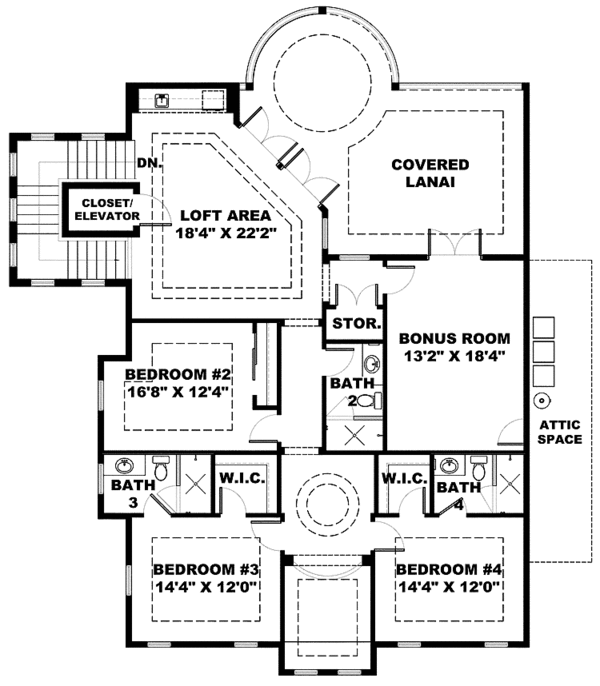

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #1017-130

Full Specs & Features


Dimension
Depth : 98' 4"
Height : 30'
Width : 66' 4"
Area
Bonus: 257 sq/ft
First Floor: 2840 sq/ft
Garage: 832 sq/ft
Second Floor: 1416 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Unfinished Future Space
Loft
Outdoor Spaces
Balcony
More
Wheelchair Adaptable
Rooms

Bedroom 2:

205 sq/ft width 16' 8" x depth 12' 4"

Bedroom 3:

171 sq/ft width 14' 4" x depth 12'

Bedroom 4:

171 sq/ft width 14' 4" x depth 12'

Bonus Room - Finished:

241 sq/ft width 13' 2" x depth 18' 4"

Dinette:

152 sq/ft width 12' 4" x depth 12' 4"

Dining Room:

162 sq/ft width 13' 6" x depth 12'

Garage:

763 sq/ft width 22' 8" x depth 33' 8"

Great Room:

576 sq/ft width 24' x depth 24'

Kitchen:

315 sq/ft width 22' x depth 14' 4"

Loft:

406 sq/ft width 18' 4" x depth 22' 2"

Master Suite:

288 sq/ft width 16' x depth 18'

Study:

159 sq/ft width 13' 4" x depth 12'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

CAD Set :
$2500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$2500.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2500.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Stem Wall Foundation:
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
90.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
