PLAN #928-231

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This Visbeen Architects home offers the ultimate in waterfront living. The main floor provides wide-open living spaces, featuring a gorgeous barrel-vaulted ceiling and exposed stone hearth. French doors lead to the back deck, where sweeping vistas await from dual screened porches. The dining area and connected kitchen provide seating and service space for large parties as well as intimate gatherings. Occupying its own wing on the right, the master suite boasts a large bedroom and bath, plus a study and access to the fireplace-warmed screened porch.Two bedroom suites and a huge bonus room (perfect for a visiting family) wait upstairs, while two more bedrooms and lots of recreational space are available in the optional finished basement, making entertaining easy. The Traverse is a luxurious year-round residence and welcoming vacation home all rolled into one. Its versatility won it first place in the Published Designs category at the 2011 American Residential Design Awards.

Floor Plans

Floor Plan - Lower Floor Plan
Country Floor Plan - Lower Floor Plan Plan #928-231

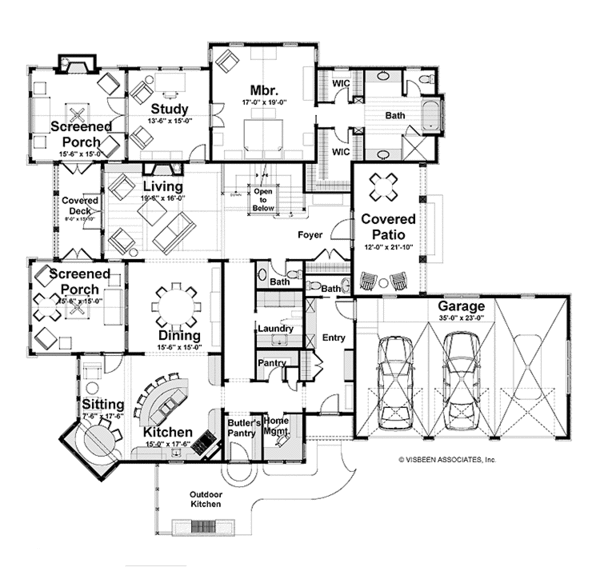

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #928-231

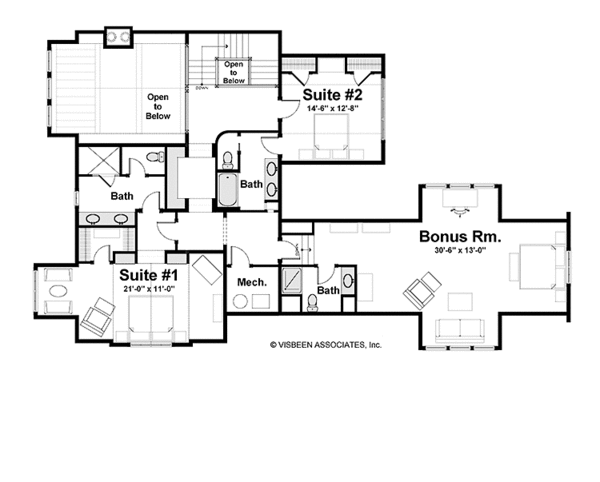

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #928-231
Floor Plan - Lower Floor Plan
Country Floor Plan - Lower Floor Plan Plan #928-231

Full Specs & Features

Dimension Depth : 90'
Height : 37' 2"
Width : 73'
Area Bonus : 690 sq/ft
Lower Floor : 1922 sq/ft
Main Floor : 2971 sq/ft
Upper Floor : 1291 sq/ft
Bedroom Features Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Unfinished Future Space
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features Side Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Loft Balcony
Screened Porch Sunroom
Outdoor Fireplace
Bedroom 2 231 sq/ft width 21' x depth 11'
Bedroom 3 183 sq/ft width 14' 6" x depth 12' 8"
Bedroom 4 221 sq/ft width 12' 8" x depth 17' 6"
Bedroom 5 221 sq/ft width 12' 8" x depth 17' 6"
Billiards Room 240 sq/ft width 15' 6" x depth 15' 6"
Bonus Room - Unfinished 396 sq/ft width 30' 6" x depth 13'
Deck 126 sq/ft width 8' x depth 15' 10"
Dining Room 232 sq/ft width 15' 6" x depth 15'
Exercise Room 190 sq/ft width 13' x depth 14' 8"
Family Room 312 sq/ft width 19' 6" x depth 16'
Garage 805 sq/ft width 35' x depth 23'
Kitchen 262 sq/ft width 15' x depth 17' 6"
Living Room 312 sq/ft width 19' 6" x depth 16'
Master Bedroom 323 sq/ft width 17' x depth 19'
Nook 131 sq/ft width 7' 6" x depth 17' 6"
Patio 261 sq/ft width 12' x depth 21' 10"
Porch - Screened 232 sq/ft width 15' 6" x depth 15'
Porch - Screened 232 sq/ft width 15' 6" x depth 15'
Study 202 sq/ft width 13' 6" x depth 15'

What's Included In This Plan Set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Wood 2x6:
Wood 2x6
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
