PLAN #928-38

Key Specs


4322
sq ft

3
Beds

3
Baths

2
Floors

4
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Simplified lines, a low-pitched roof, tapered columns, and exposed rafters characterize the exterior of this updated Shingle-style cottage by Visbeen Associates. A highlight of both the interior and exterior design is the innovative tower room, which gives the structure a lighthouse-style appeal. Other highlights include large living spaces on the main floor, including a gracious kitchen and the fireplace-warmed, window-surrounded family room. Upstairs, the master suite's enormous tub offers ultimate relaxation. Two additional bedrooms have walk-in closets.

Floor Plans

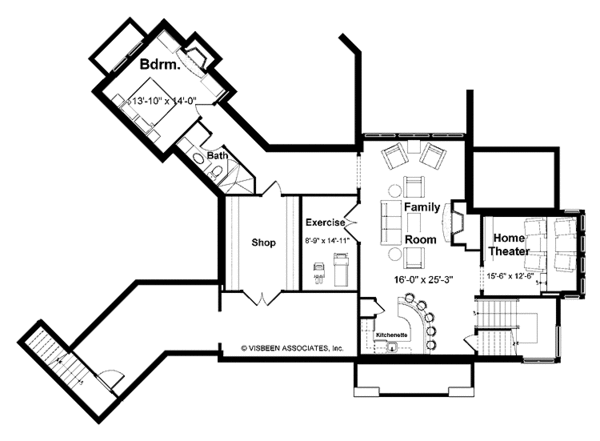

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

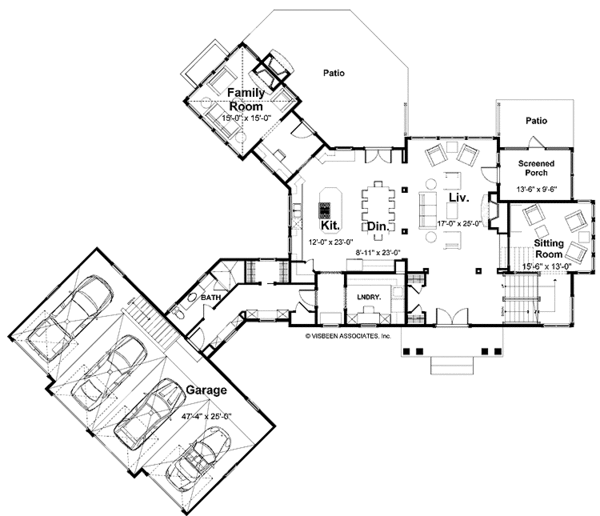

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

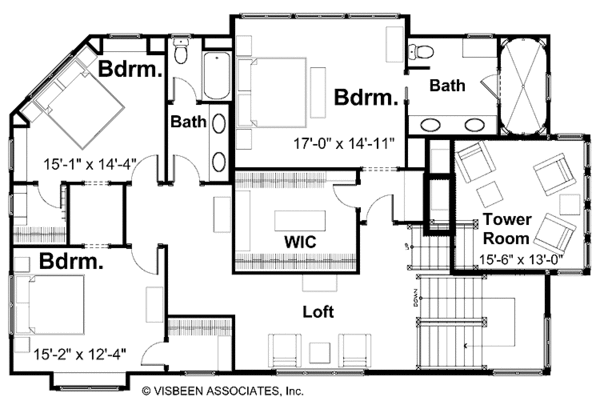

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Lower Floor : 1663 sq/ft
Main Floor : 2418 sq/ft
Upper Floor : 1904 sq/ft
Bedroom Features Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Kitchen Features Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Unfinished Future Space
Workshop
Open Floor Plan
Garage Features Side Entry Garage
Outdoor Spaces Covered Rear Porch
Loft Balcony
Screened Porch Sunroom

What's Included In This Plan Set


Visbeen Architects, Inc

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
$1995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Framing
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Right-Reading Reverse :
250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
