Full Specs & Features
Depth : 97' 4"
Height : 23' 8"
Width : 104' 10"
First Floor: 4354 sq/ft
Garage: 822 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings

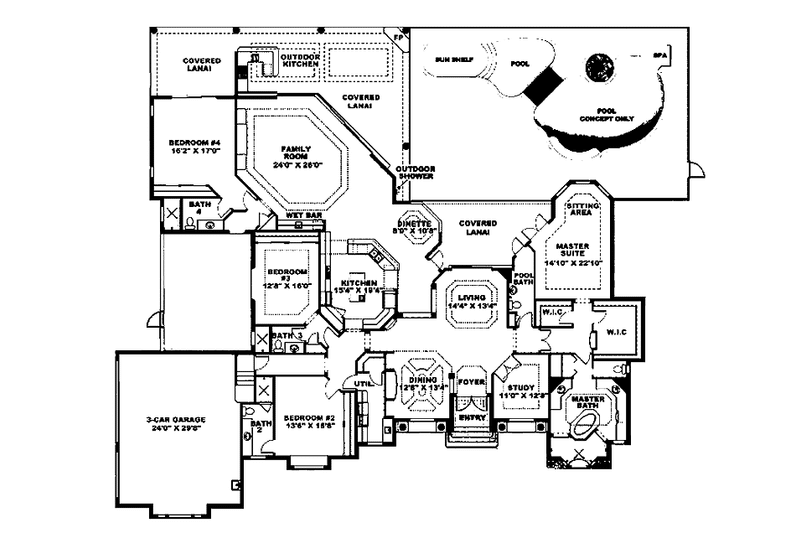

202 sq/ft width 13' 6" x depth 15'
168 sq/ft width 12' 8" x depth 13' 4"
624 sq/ft width 24' x depth 26'
296 sq/ft width 15' 4" x depth 19' 4"
191 sq/ft width 14' 4" x depth 13' 4"
338 sq/ft width 14' 10" x depth 22' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
