Plan Description
This handsome Craftsman plan has loads of curb appeal. Welcome guests inside through a covered front porch. Upon entry, to the right is an office and to the left, the dining room. Flowing easily into the dining room and kitchen, the great room is the heart of this home. Off of the kitchen, enjoy great outdoor living on the vaulted porch. Ceiling treatments thoughout the home enhance the spaces. The master suite is downstairs, boasting a sitting area and large walk-in closet. Upstairs, find three bedrooms, two baths and bonus space.
Floor Plans

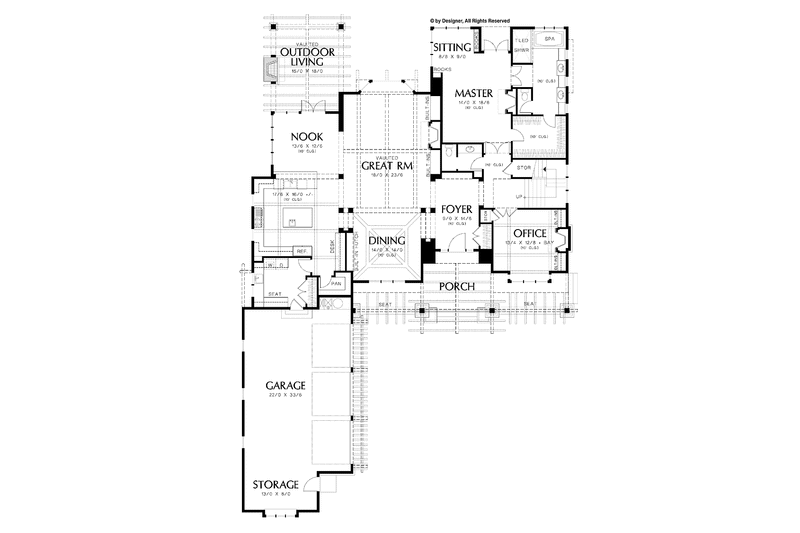

Floor Plan - Main Floor

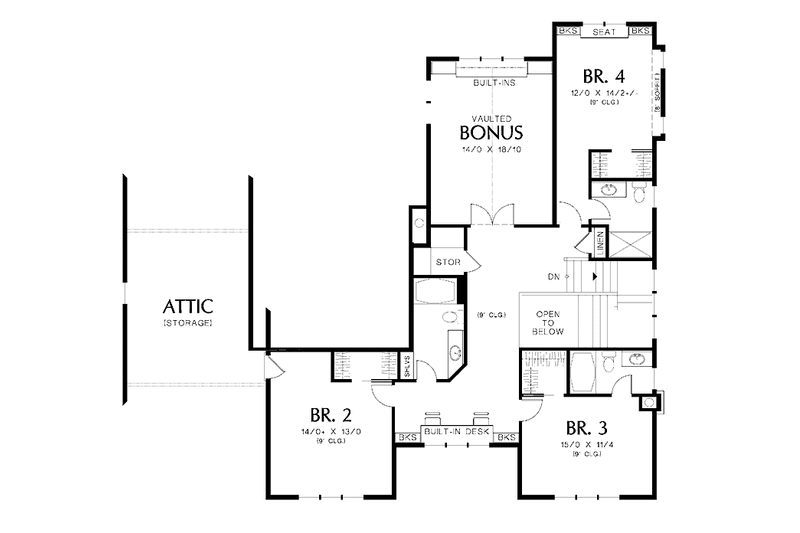

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 69'
Height : 30'
Width : 102'
Area
First Floor: 2833 sq/ft
Second Floor: 1539 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 0:0
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Rooms
Bedroom 2:
182 sq/ft width 14' x depth 13'
Bedroom 3:
169 sq/ft width 15' x depth 11' 4"
Bedroom 4:
170 sq/ft width 12' x depth 14' 2"
Bonus Room - Finished:
263 sq/ft width 14' x depth 18' 10"
Dining Room:
196 sq/ft width 14' x depth 14'
Foyer:
130 sq/ft width 9' x depth 14' 6"
Garage:
737 sq/ft width 22' x depth 33' 6"
Garage Storage:
104 sq/ft width 13' x depth 8'
Great Room:
423 sq/ft width 18' x depth 23' 6"
Master Bedroom:
259 sq/ft width 14' x depth 18' 6"
Nook:
168 sq/ft width 13' 6" x depth 12' 6"
Office:
168 sq/ft width 13' 4" x depth 12' 8"
What's Included In This Plan Set
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
-
Foundation Plan
- The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
-
Floor Plan(s)
- Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
-
Building Sections
- Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
-
Roof Plan
- Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
-
Notes and Details Page(s)
- Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
