PLAN 132-491
Key Specs
4395
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 132-491
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 94'
Height : 24' 1"
Width : 71'
Height : 24' 1"
Width : 71'
Area

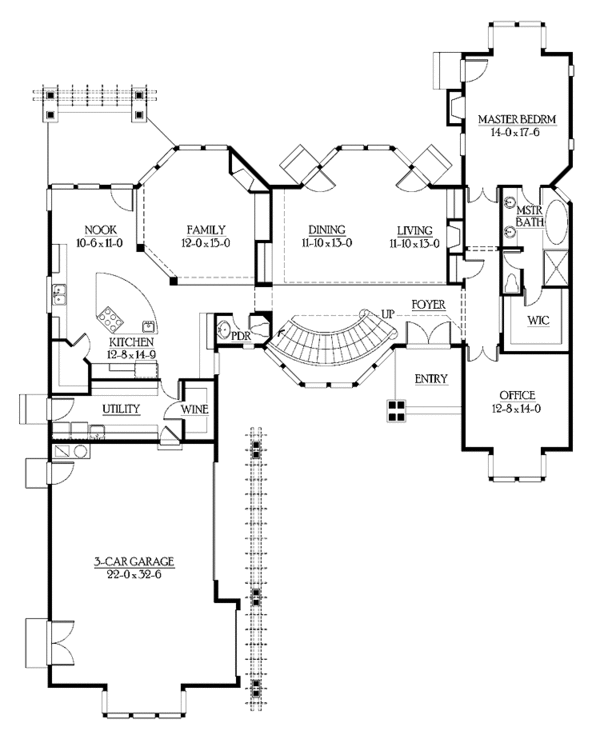

First Floor: 2598 sq/ft height 10'
Garage: 839 sq/ft

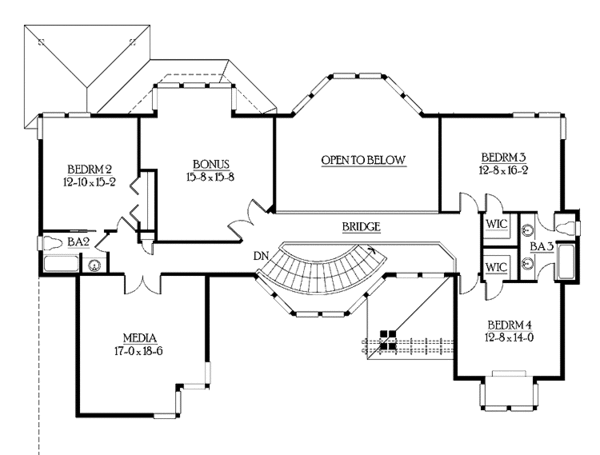

Second Floor: 1797 sq/ft height 9'
Garage: 839 sq/ft
Second Floor: 1797 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Courtyard
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
194 sq/ft width 12' 10" x depth 15' 2"
Bedroom 3:
204 sq/ft width 12' 8" x depth 16' 2"
Bedroom 4:
177 sq/ft width 12' 8" x depth 14'
Bonus Room - Finished:
245 sq/ft width 15' 8" x depth 15' 8"
Dining Room:
153 sq/ft width 11' 10" x depth 13'
Family Room:
180 sq/ft width 12' x depth 15'
Garage:
715 sq/ft width 22' x depth 32' 6"
Kitchen:
186 sq/ft width 12' 8" x depth 14' 9"
Living Room:
153 sq/ft width 11' 10" x depth 13'
Master Bedroom:
245 sq/ft width 14' x depth 17' 6"
Media Room:
314 sq/ft width 17' x depth 18' 6"
Nook:
115 sq/ft width 10' 6" x depth 11'
Office:
177 sq/ft width 12' 8" x depth 14'
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license. The 5 copy set allows you to build the home one time.
If you are building this plan in the state of Washington, please call us before placing your order.
