PLAN 132-351
Key Specs
4400
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 132-351
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
A turret marks the grand entrance and distinguishes the interior with unique and elegant room layouts. The first floor is well-appointed with three fireplaces and abundant windows. Second-floor highlights include a dramatic view overlooking the rotunda and balcony access from the round loft. The hearth-warmed master suite is thoughtfully positioned away from the guest suite and two secondary bedrooms.
Full Specs & Features
Dimension
Depth : 67'
Height : 34'
Width : 61'
Height : 34'
Width : 61'
Area

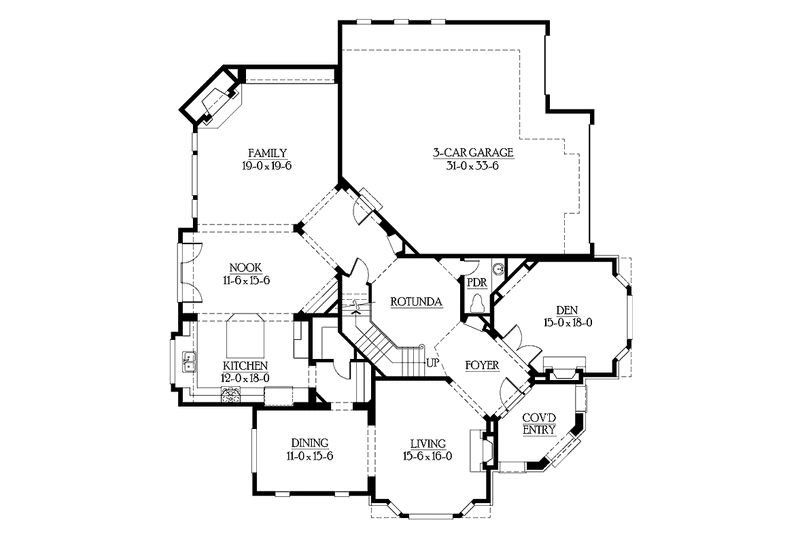

First Floor: 2118 sq/ft height 9'
Garage: 970 sq/ft

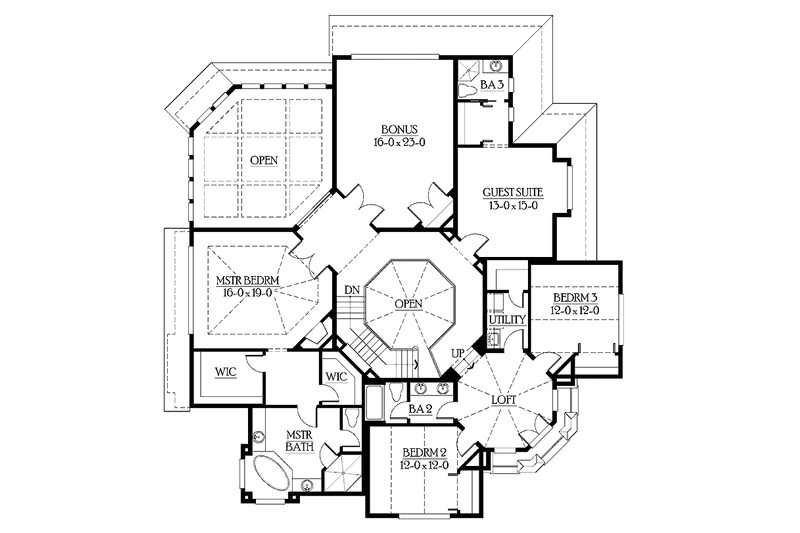

Second Floor: 2282 sq/ft height 9'
Garage: 970 sq/ft
Second Floor: 2282 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Storage Area
Sunroom
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Storage Area
Sunroom
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Screened Porch
Courtyard
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
Bath 2:
width 5' 8" x depth 12' 2"
Bath 3:
width 5' 6" x depth 7'
Bath 3:
width 5' 6" x depth 7'
Bedroom 2:
width 12' x depth 12'
Bedroom 3:
width 12' x depth 12'
Den:
width 15' x depth 18'
Dining:
width 11' x depth 15' 6"
Family Room:
width 19' x depth 19' 6"
Foyer:
width 7' 10" x depth 12'
Foyer:
width 7' 10" x depth 12'
Garage:
970 sq/ft width 31' x depth 33' 6"
Guest Suite:
width 13' x depth 15'
Kitchen:
width 12' x depth 18'
Living Room:
width 15' 6" x depth 16'
Loft:
width 13' x depth 13'
Master Bath:
width 11' 6" x depth 15'
master bath:
width 11' 6" x depth 15'
Master Bedroom:
width 16' x depth 19'
Master Closet:
width 7' 2" x depth 9' 6"
Master Closet 2:
width 5' 6" x depth 7' 4"
Nook:
width 11' 6" x depth 15' 6"
Powder Room:
width 3' 6" x depth 7' 6"
Powder room:
width 3' 6" x depth 7' 6"
Rotunda:
width 12' x depth 12'
Utility:
width 5' 8" x depth 7' 8"
