PLAN #117-841

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Subtotal
$925.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #117-841

Key Specs


4404
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan

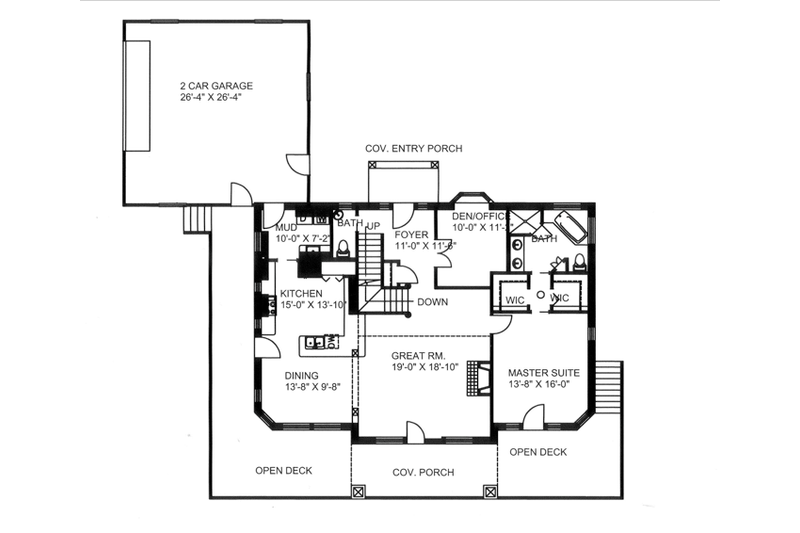

Craftsman Floor Plan - Main Floor Plan Plan #117-841
Floor Plan - Upper Floor Plan

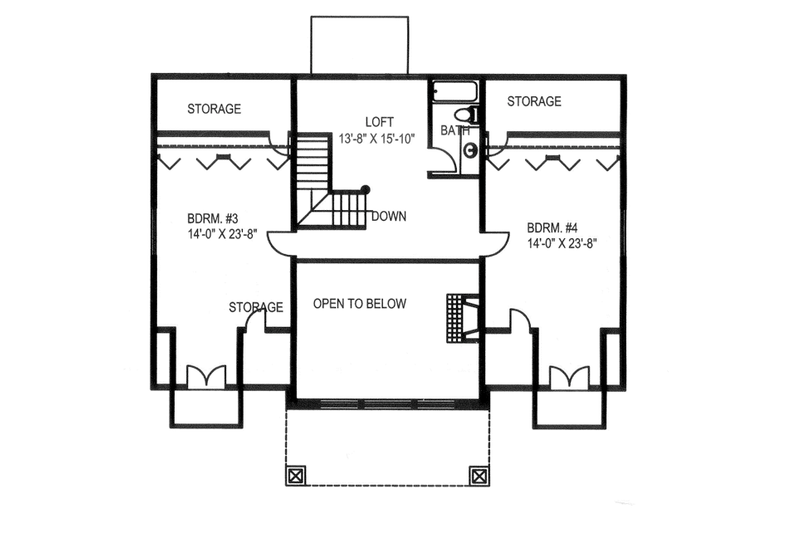

Craftsman Floor Plan - Upper Floor Plan Plan #117-841
Floor Plan - Lower Floor Plan

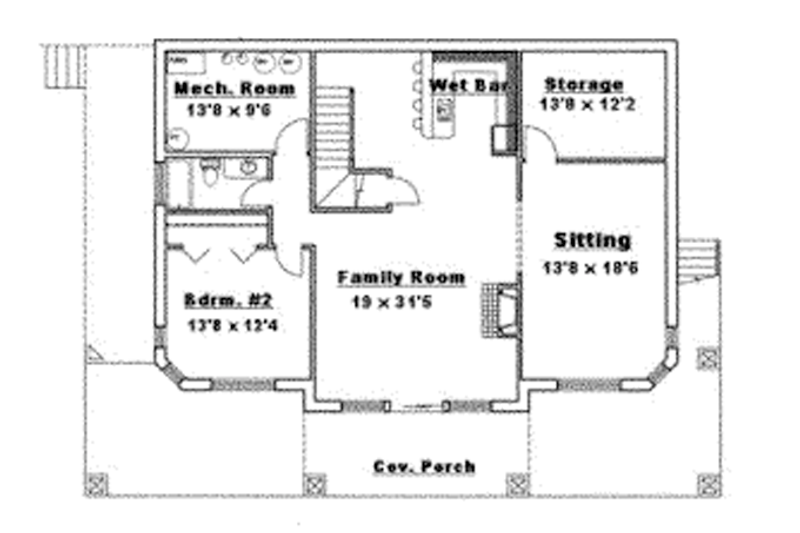

Craftsman Floor Plan - Lower Floor Plan Plan #117-841

Full Specs & Features


Dimension
Depth : 61' 6"
Height : 24' 9"
Width : 68'
Area
Basement Living: 1652 sq/ft
First Floor: 1652 sq/ft height 9'
Garage: 725 sq/ft
Second Floor: 1100 sq/ft height 9'
Roof
Roof Framing : Conventional
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Fireplace
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Deck
Rooms

Bedroom 2:

width 13' 8" x depth 12' 4"

Bedroom 3:

width 14' x depth 23' 8"

Bedroom 4:

width 14' x depth 23' 8"

Den:

width 10' x depth 11' 2"

Dining:

width 13' 8" x depth 9' 8"

Family Room:

width 19' x depth 31' 5"

Foyer:

width 11' x depth 11' 8"

Garage:

725 sq/ft width 26' 4" x depth 26' 4"

Great Room:

width 19' x depth 18' 10"

Kitchen:

width 15' x depth 13' 10"

Loft:

width 13' 8" x depth 15' 10"

Master Bedroom:

width 13' 8" x depth 16'

Mechanical Room:

width 13' 8" x depth 9' 6"

Mud Room:

width 10' x depth 7' 2"

Sitting Area:

width 13' 8" x depth 18' 6"

Storage:

width 13' 8" x depth 12' 2"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$925.00
5 printed plan sets mailed to you.
8 Copy Set :
$1000.00
8 printed plan sets mailed to you.
Reproducible Set :
$1200.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$1300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set :
$150.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing
