Full Specs & Features
Depth : 29'
Height : 19' 11"
Width : 21'
Decks : 225 sq/ft
Main Floor : 441 sq/ft
Porch : 168 sq/ft
Storage : 441 sq/ft
Upper Floor : 441 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : vaulted 7'-0" to 10'-0" ht ceilings second level
Main Ceiling : 7' 6"
Upper Ceiling Ft : 7'
Primary Pitch : 2:12
Roof Framing : gable
Roof Load : 20
Roof Type : coventional
Exterior Wall Framing
Additional Room Features
Family Room Keeping Room
Covered Front Porch
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

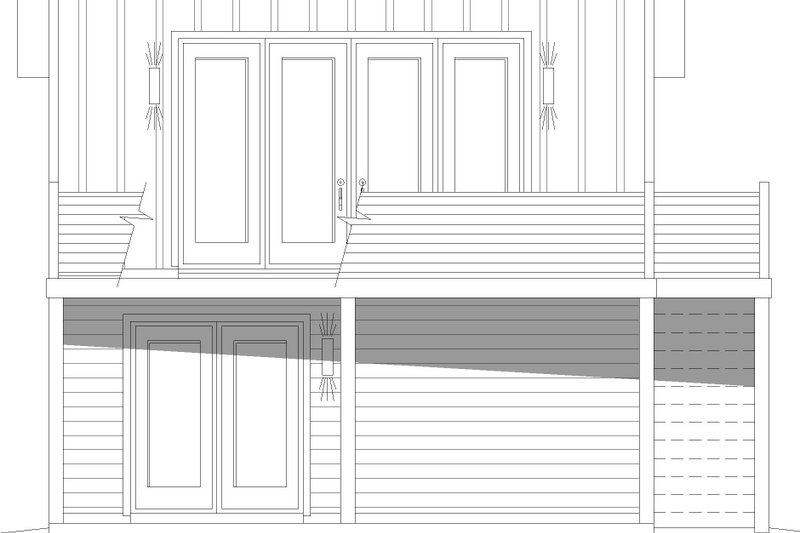

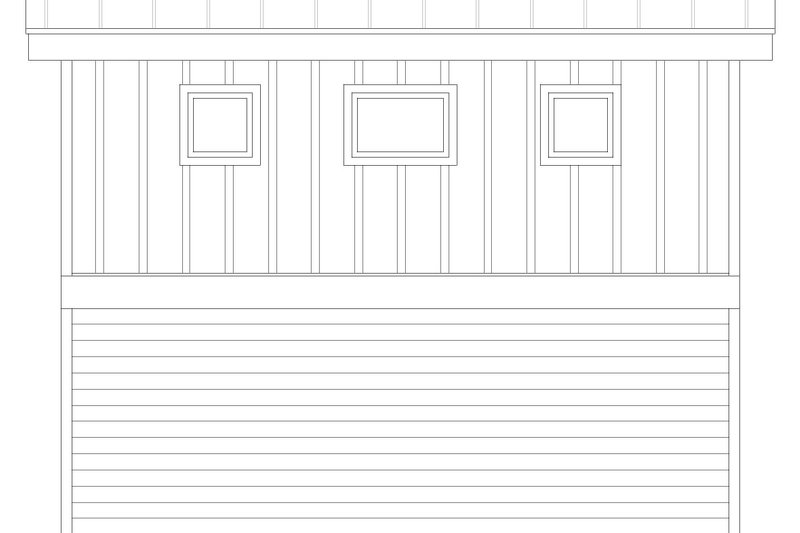

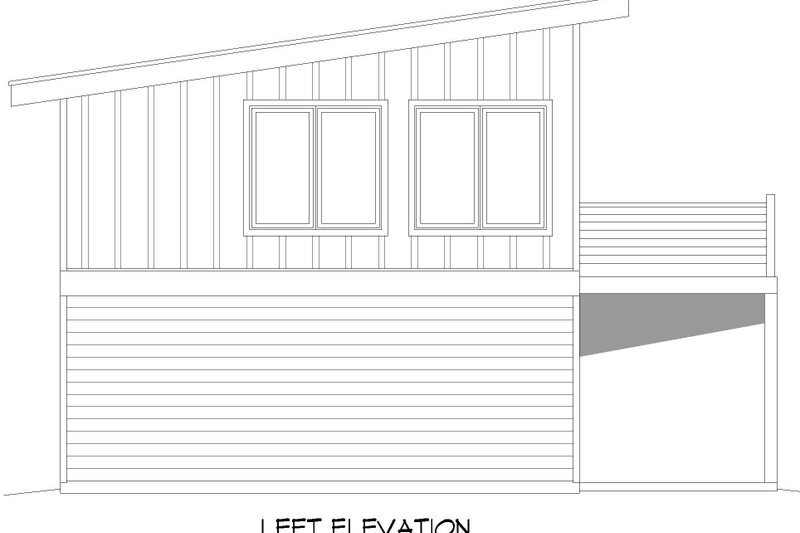

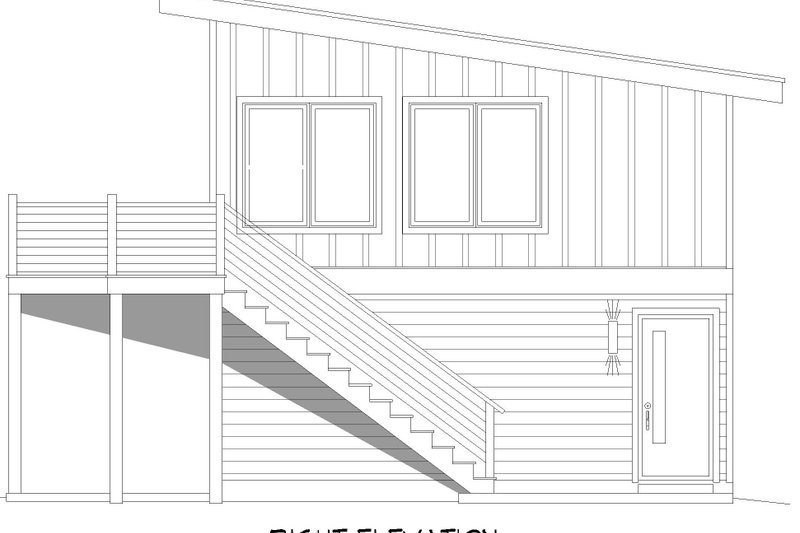

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
