PLAN 117-879
Key Specs
4459
sq ft
5
Beds
4.5
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Floor Plans

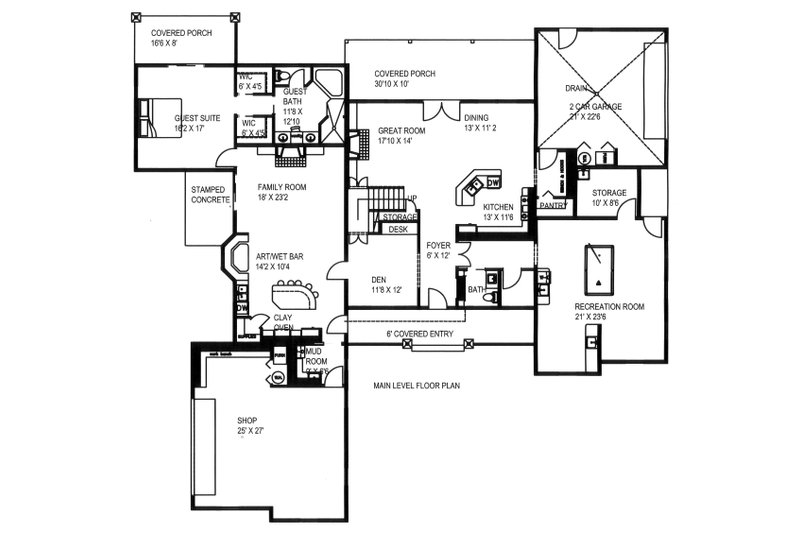

Floor Plan - Main Floor Plan

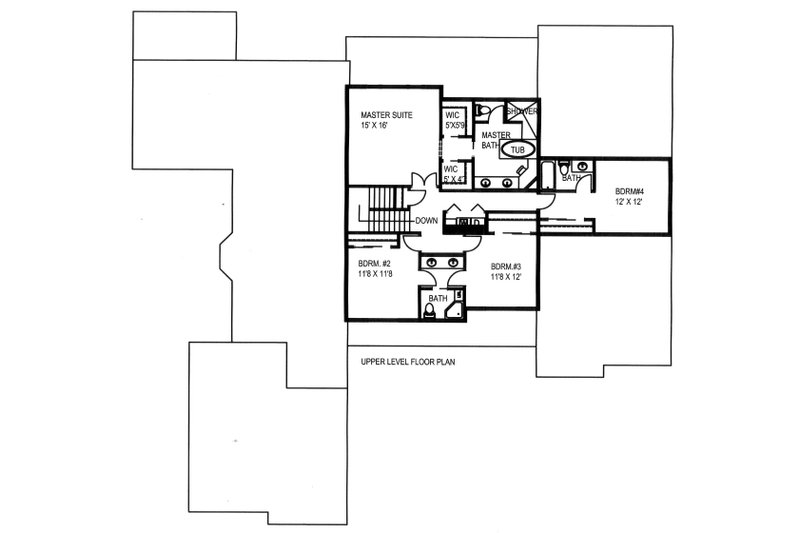

Floor Plan - Upper Floor Plan
Full Specs & Features
Height : 27' 1"
Width : 88' 6"
Main Floor : 3120 sq/ft
Porch : 634 sq/ft
Upper Floor : 1339 sq/ft
Upper Ceiling Ft : 8'
Roof Framing : Truss/Stick
Roof Type : Composition
Secondary Pitch : 3/12
Framing : 2x6
Upstairs Master Bedrooms
Walk In Closet
Family Room Keeping Room
Hobby Rec Room Game Room
Mud Room
Storage Area
Upstairs Laundry
Wet Bar
Covered Rear Porch
Art/Wet Bar:
width 14' 2" x depth 10' 4"
Bedroom 2:
width 11' 8" x depth 11' 8"
Bedroom 3:
width 11' 8" x depth 12'
Bedroom 4:
width 12' x depth 12'
Den:
width 11' 8" x depth 12'
Dining:
width 13' x depth 11' 2"
Family Room:
width 18' x depth 23' 2"
Garage:
width 21' x depth 22' 6"
Great Room:
width 17' 10" x depth 14'
Guest Bath:
width 11' 8" x depth 12' 10"
Guest Suite:
width 16' 2" x depth 17'
Guest WIC:
width 6' x depth 4' 5"
Guest WIC 2:
width 6' x depth 4' 5"
Kitchen:
width 13' x depth 11' 6"
Master Suite:
width 15' x depth 16'
Master WIC:
width 5' x depth 5' 9"
Master WIC 2:
width 5' x depth 4'
Rear Covered Porch:
width 30' 10" x depth 10'
Recreation Room:
width 21' x depth 23' 6"
Shop:
width 25' x depth 27'
Storage:
width 10' x depth 8' 6"
What's Included In This Plan Set
See a sample plan set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
| Reproducible Set
: $1040.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy Set
: $1120.00 |
5 printed plan sets mailed to you. |
| CAD Set
: $1200.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| PDF Set
: $1200.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $80.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $40.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $80.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $31.20 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $160.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Other Plans By this Designer
Browse Similar Plans
Recently Viewed House Plans
