Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

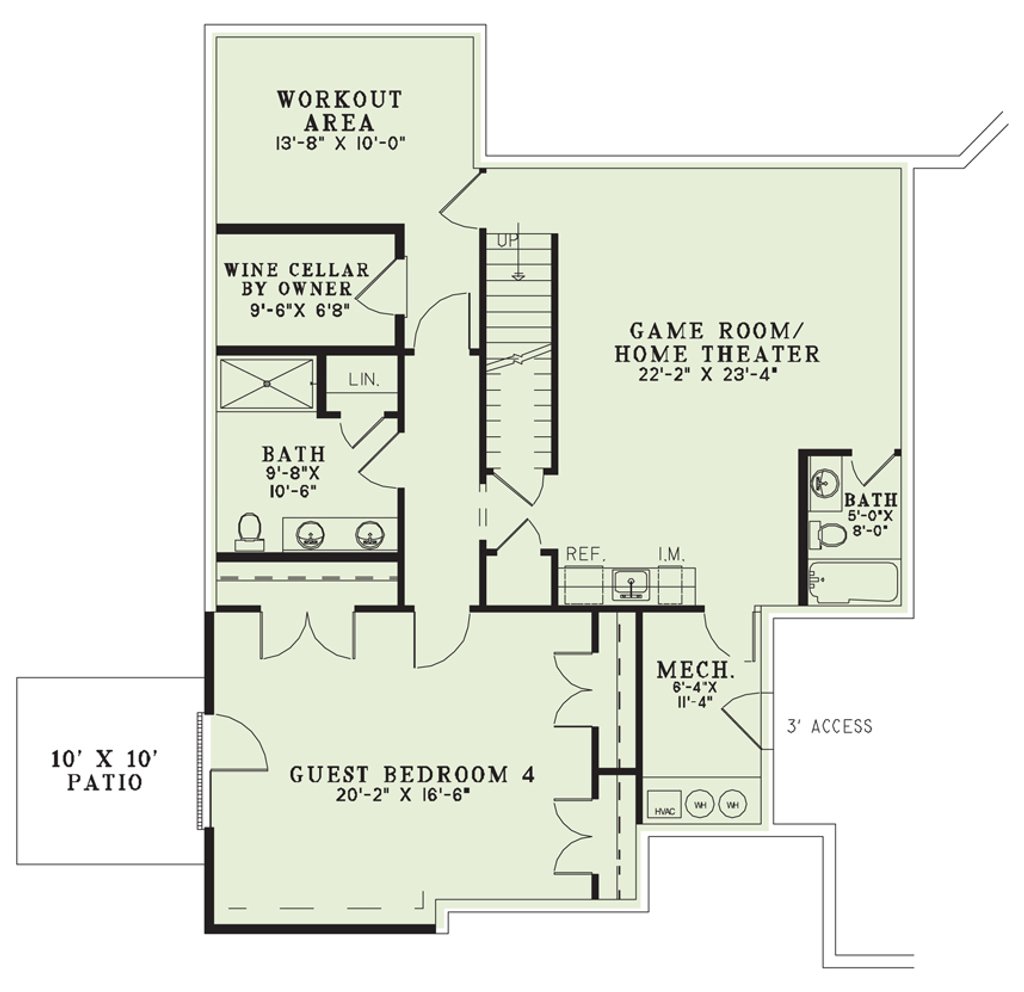

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #17-2775

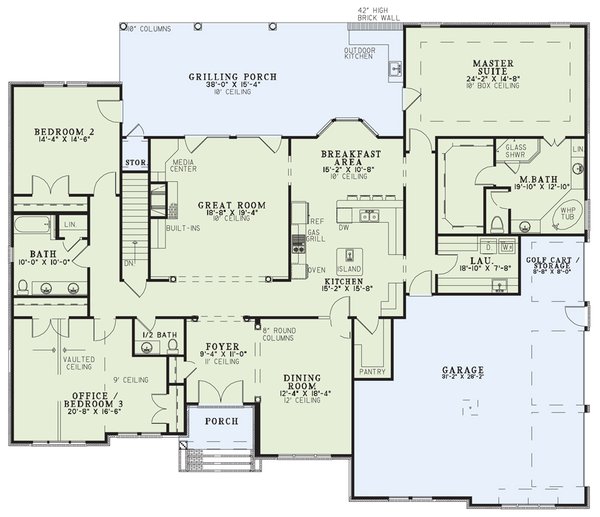

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #17-2775

Full Specs & Features

Depth : 65'
Height : 32' 4"
Width : 77' 10"
Basement Living: 1501 sq/ft height 8'
First Floor: 3009 sq/ft height 9'
Porch: 630 sq/ft
Storage: 898 sq/ft
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Wine Cellar
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

Bedroom 2:

207 sq/ft width 14' 4" x depth 14' 6"

Bedroom 3:

341 sq/ft width 20' 8" x depth 16' 6"

Bedroom 4:

332 sq/ft width 20' 2" x depth 16' 6"

Breakfast Area:

161 sq/ft width 15' 2" x depth 10' 8"

Dining Room:

226 sq/ft width 12' 4" x depth 18' 4"

Exercise Room:

136 sq/ft width 13' 8" x depth 10'


102 sq/ft width 9' 4" x depth 11'


877 sq/ft width 31' 2" x depth 28' 2"

Great Room:

360 sq/ft width 18' 8" x depth 19' 4"

Grilling Porch:

582 sq/ft width 38' x depth 15' 4"

Home Theater:

517 sq/ft width 22' 2" x depth 23' 4"


237 sq/ft width 15' 2" x depth 15' 8"

Laundry Room:

144 sq/ft width 18' 10" x depth 7' 8"

Master Bathroom:

254 sq/ft width 19' 10" x depth 12' 10"

Master Bedroom:

354 sq/ft width 24' 2" x depth 14' 8"


100 sq/ft width 10' x depth 10'

Wine Cellar:

63 sq/ft width 9' 6" x depth 6' 8"

What's Included In This Plan Set

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
