PLAN #1060-8

Key Specs


4531
sq ft

5
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This plan could be an entertainer's dream home making large gatherings a breeze with a chef-style kitchen paired with an open living space. It's loaded with features like arched doorways, a large laundry room and over-sized closets in each of the five bedrooms. There is plenty of luxury in the master suite, either by relaxing by the fireplace or soaking in the deep garden tub. The basement family room has many optional uses and there is cold storage space.

Floor Plans


Floor Plan - Main Floor Plan

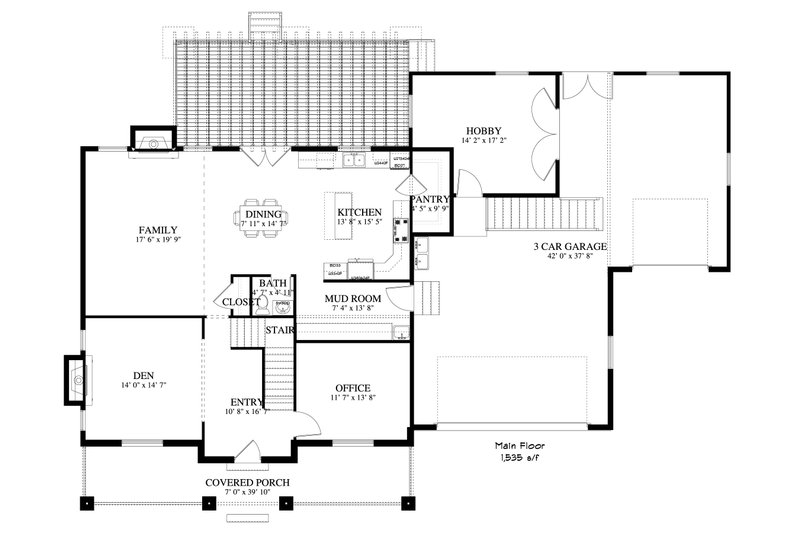

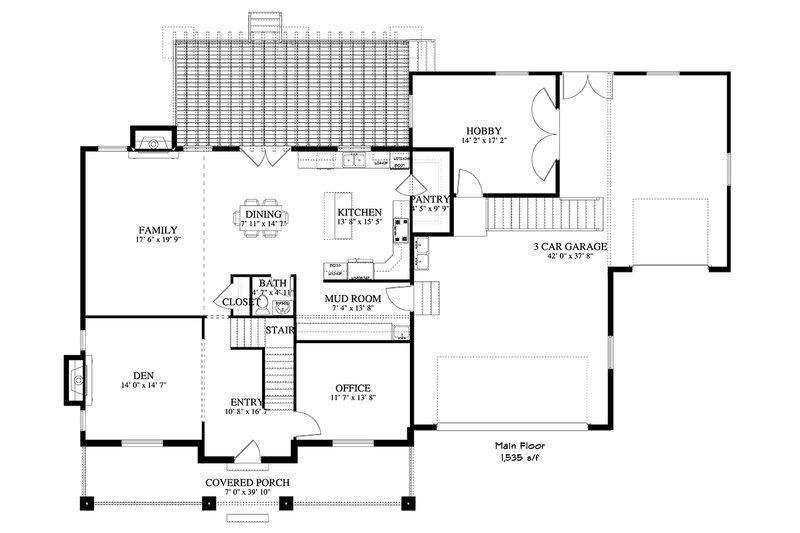

Traditional Floor Plan - Main Floor Plan Plan #1060-8

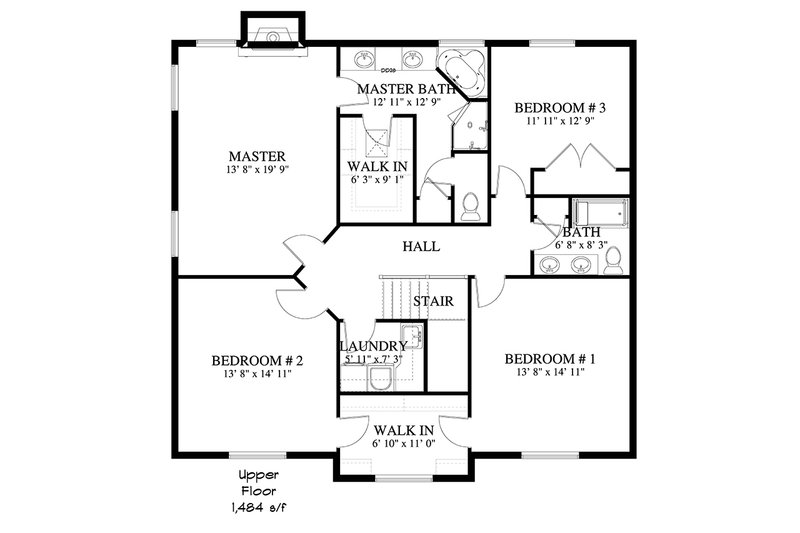

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #1060-8

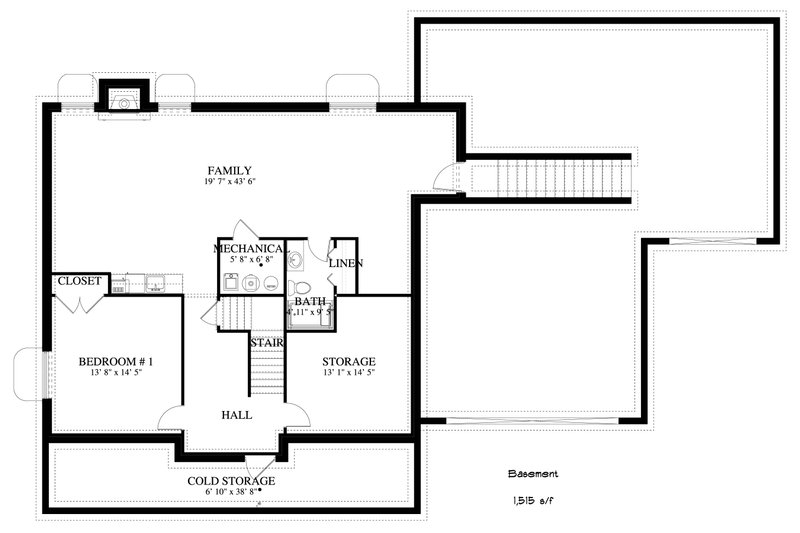

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #1060-8
Floor Plan - Other Floor Plan
Traditional Floor Plan - Other Floor Plan Plan #1060-8

Full Specs & Features


Dimension
Depth : 47'
Height : 31' 10"
Width : 78'
Area
Basement Living: 1515 sq/ft
First Floor: 1532 sq/ft height 9'
Garage: 1088 sq/ft
Second Floor: 1484 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Secondary Pitch : 3:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Upstairs Laundry
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Deck
Rooms

2 Car Garage:

985 sq/ft width 23' 5" x depth 42' 1"

3rd Car Garage:

336 sq/ft width 14' x depth 24'

Basement Bath:

48 sq/ft width 5' x depth 9' 6"

Bath:

56 sq/ft width 8' 4" x depth 6' 9"

Bedroom 2:

206 sq/ft width 13' 9" x depth 15'

Bedroom 3:

206 sq/ft width 13' 9" x depth 15'

Bedroom 3:

126 sq/ft width 12' x depth 10' 6"

Bedroom 5:

199 sq/ft width 13' 9" x depth 14' 6"

Cold Storage:

264 sq/ft width 38' 8" x depth 6' 10"

Covered Front Porch:

280 sq/ft

Dining Room:

133 sq/ft width 9' x depth 14' 10"

Entry:

174 sq/ft width 10' 5" x depth 16' 8"

Family Room:

830 sq/ft width 42' 11" x depth 19' 4"

Formal Living Room:

205 sq/ft width 14' x depth 14' 8"

Great Room:

347 sq/ft width 17' 6" x depth 19' 10"

Jack & Jill Closet:

77 sq/ft width 11' 1" x depth 6' 11"

Kitchen:

202 sq/ft width 13' x depth 15' 6"

Master Bath:

196 sq/ft width 12' 10" x depth 15' 3"

Master Bedroom:

273 sq/ft width 13' 9" x depth 19' 10"

Mud Room:

96 sq/ft width 13' 9" x depth 7'

Office:

157 sq/ft width 13' 5" x depth 11' 8"

Pantry:

44 sq/ft width 4' 6" x depth 9' 10"

Powder Room:

23 sq/ft width 5' x depth 4' 8"

Rear Deck:

360 sq/ft

Storage Room:

142 sq/ft width 13' 3" x depth 10' 9"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

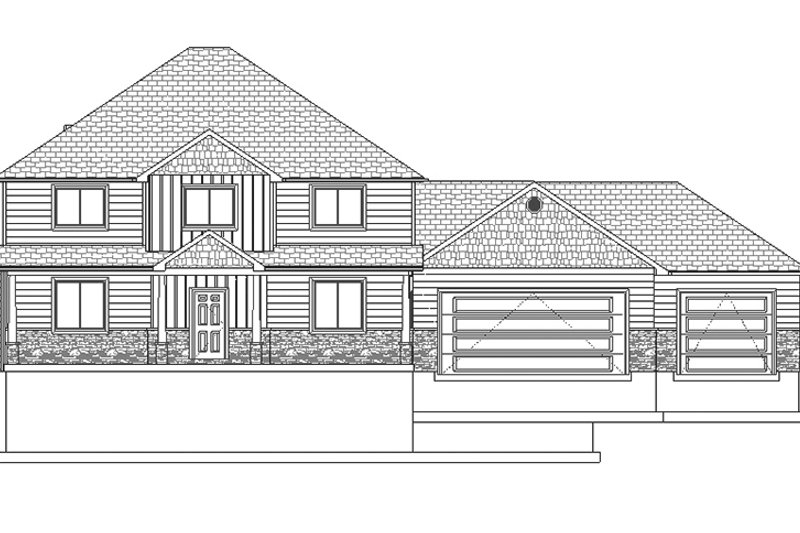

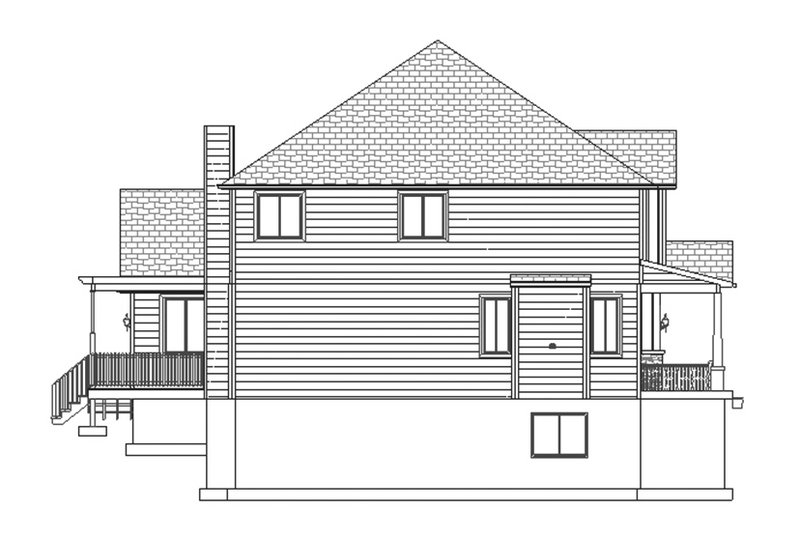

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
