PLAN 117-835
Photographs may show modified designs.
- Jump to:
- All (8)
- Floor plans (3)
Get Personalized Help
Key Specs
4556
sq ft
5
Beds
5.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBFALL
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 117-835
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

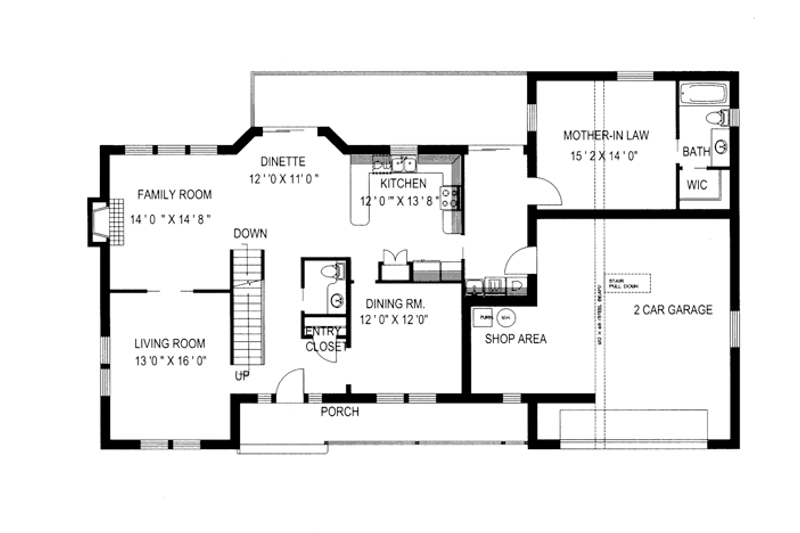

Floor Plan - Main Floor

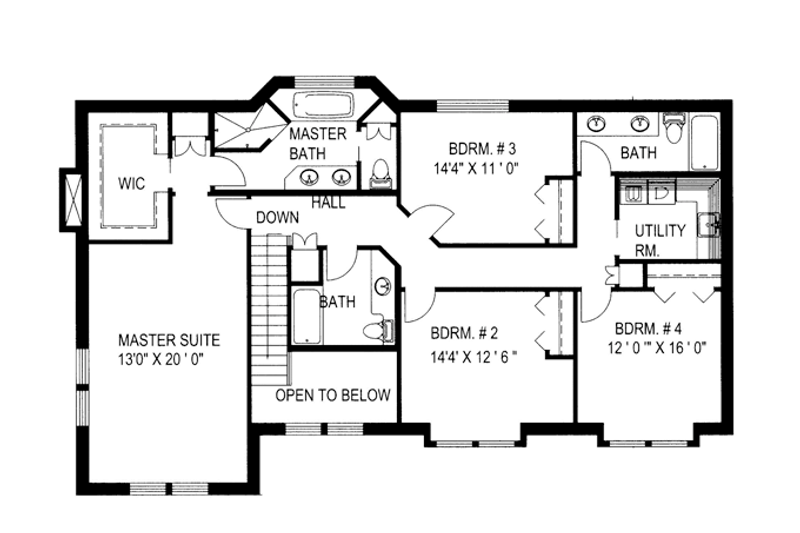

Floor Plan - Upper Floor

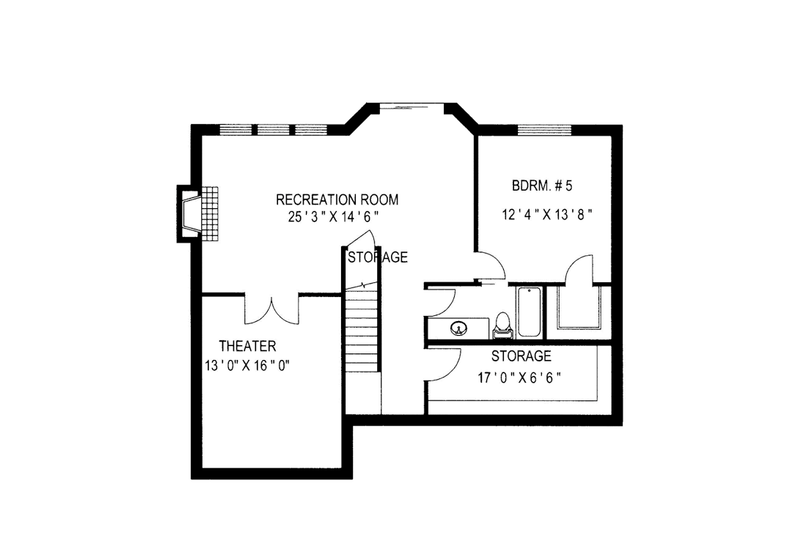

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 41'
Height : 30'
Width : 69' 2"
Area
Basement Living: 1216 sq/ft
First Floor: 1701 sq/ft height 9'
Garage: 630 sq/ft
Second Floor: 1639 sq/ft height 9'
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Storage Area
Upstairs Laundry
Workshop
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
width 14' 4" x depth 12' 6"
Bedroom 3:
width 14' 4" x depth 11'
Bedroom 4:
width 12' x depth 16'
Bedroom 5:
width 1' x depth 5' 1"
Dinette:
width 12' x depth 11'
Dining:
width 12' x depth 12'
Family Room:
width 14' x depth 14' 8"
Kitchen:
width 12' x depth 13' 8"
Living Room:
width 13' x depth 16'
Master Bedroom:
width 13' x depth 20'
Mother-In-Law Suite:
width 15' 2" x depth 14'
Rec. Room:
width 25' 3" x depth 14' 6"
Storage:
width 17' x depth 6' 6"
Theater:
width 13' x depth 16'
What's Included In This Plan Set
- Foundation Plan(s): Footing locations, foundation details, etc.
- Floor Plan(s): Layout of floor plan, window/door schedule, interior and exterior dimensions
- Exterior Elevations: Exterior on all four sides, siding notes, roof pitches, garage door heights, etc.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Cut-through view of home. Shows foundation, insulation, wall construction, ceiling heights, etc.
- Electrical Plan(s): Lighting, switches, electrical outlet placement throughout home.
- Detail Sheet(s): Additional structural details included in most log and ICF plans. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Construction Notes / Detail(s): Referencing the entirety of the project.
- Framing Detail(s): Location of supporting walls and beams. Location/spacing of floor joists, floor framing details. Layout of roof, roof framing details, truss/rafter locations, connection details etc. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Plan Set
$2295.00
$2295.00
$2995.00
Foundation
$0.00
Framing
$0.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
