PLAN 124-967
Key Specs
4568
sq ft
3
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 124-967
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

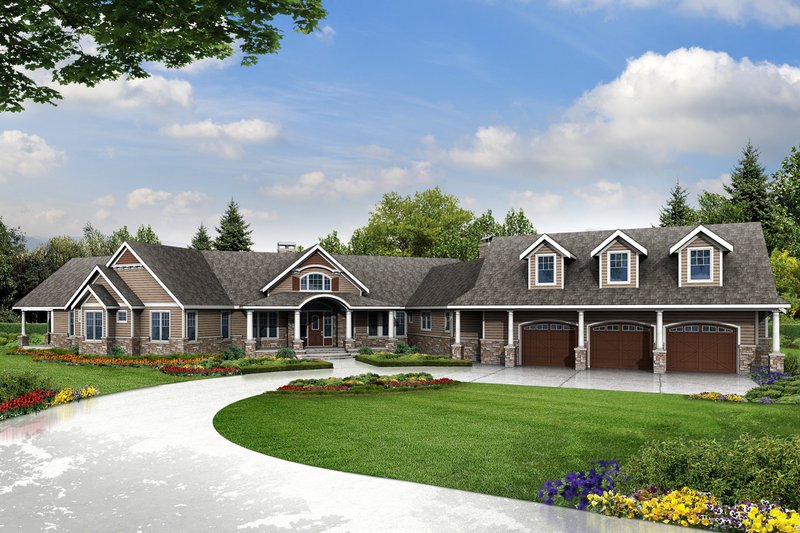

Stone veneer wainscoting and column supports give a relaxed look to this plan, an estate home designed for construction on country acreage with a view. Craftsman-style windows, along with multiple gables and two chimneys, add to the home’s traditional flavor.
A gently arched transom crowns the arched entry opening, which is centered between front porch columns. This combination imparts a nostalgic genteel ambiance.

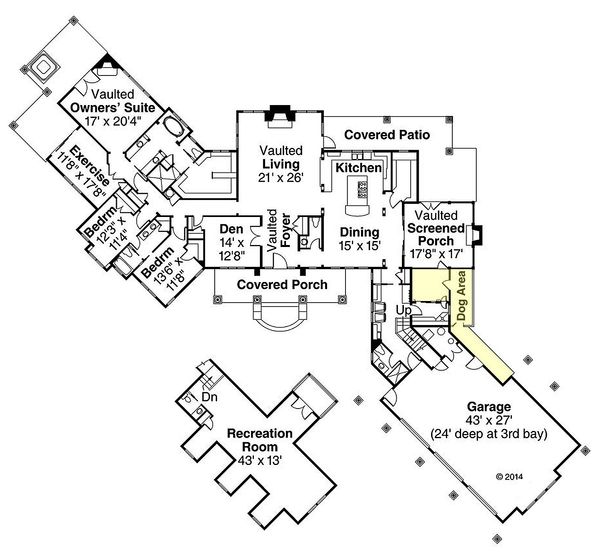

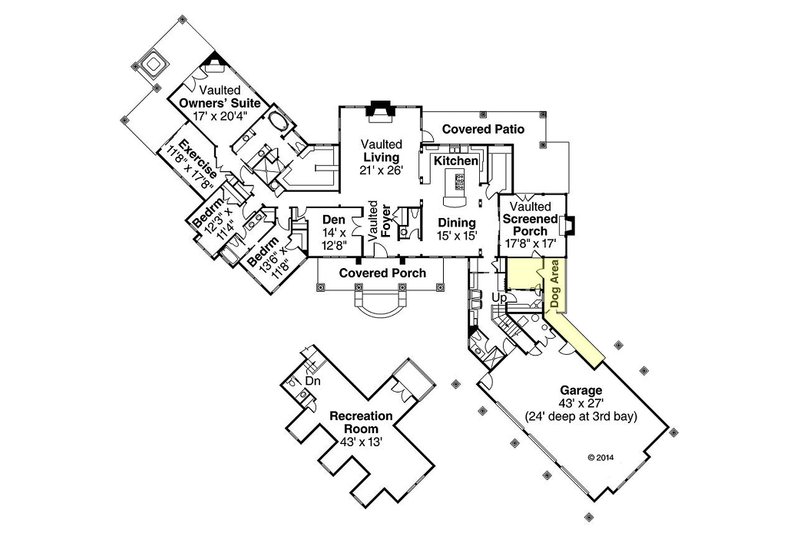

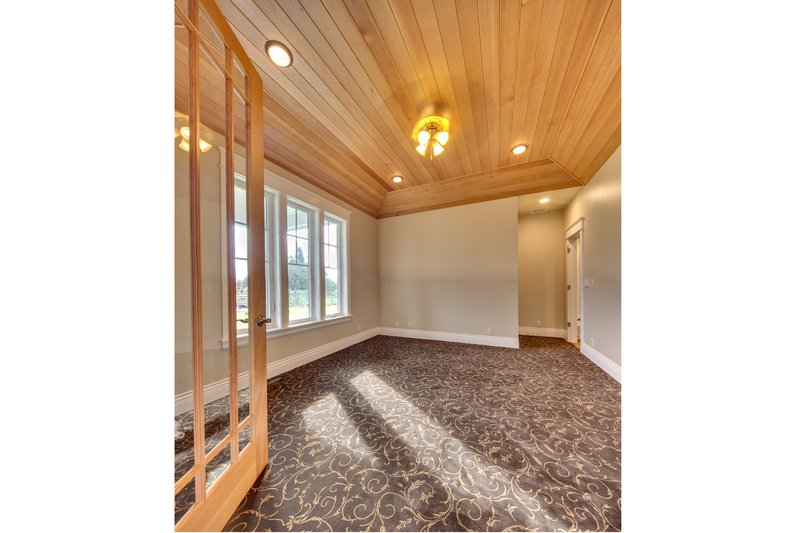

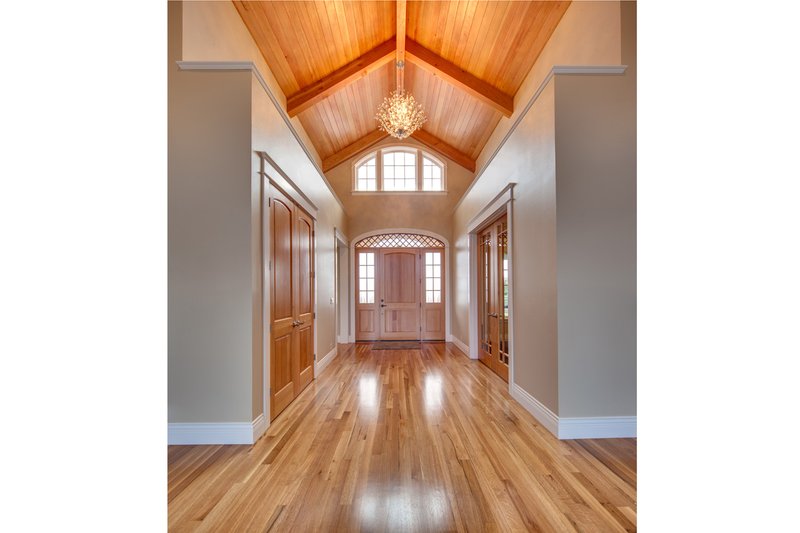

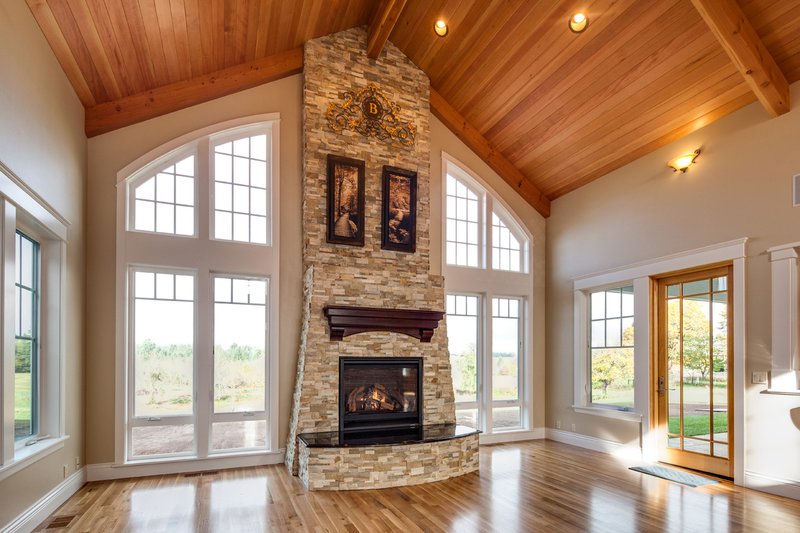

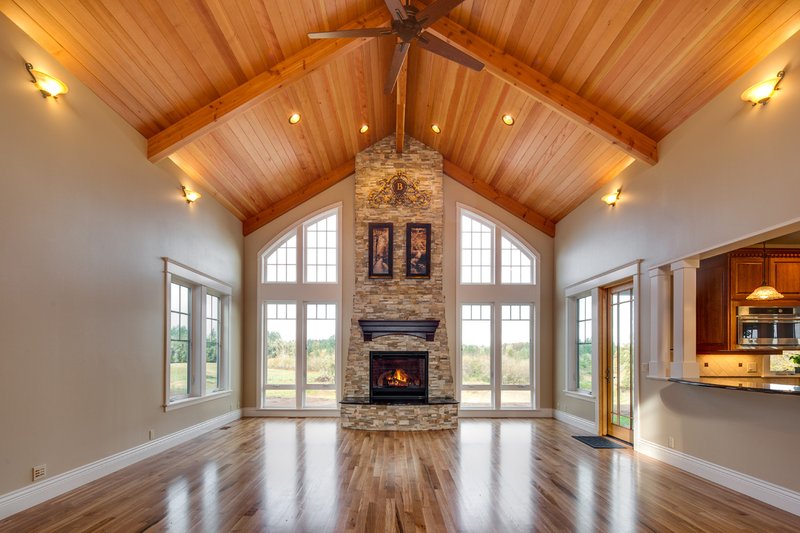

Inside, natural light washes into the vaulted foyer through the transom. Double doors on the left open into a room that could be a den or home office. Walking directly ahead brings you to a breath-taking vaulted living room, windowed on three sides. The upper set of stacked windows flanking the fireplace curve up to parallel the vaulted ceiling, emphasizing its loftiness. Kitchen and dining room are off to the right.

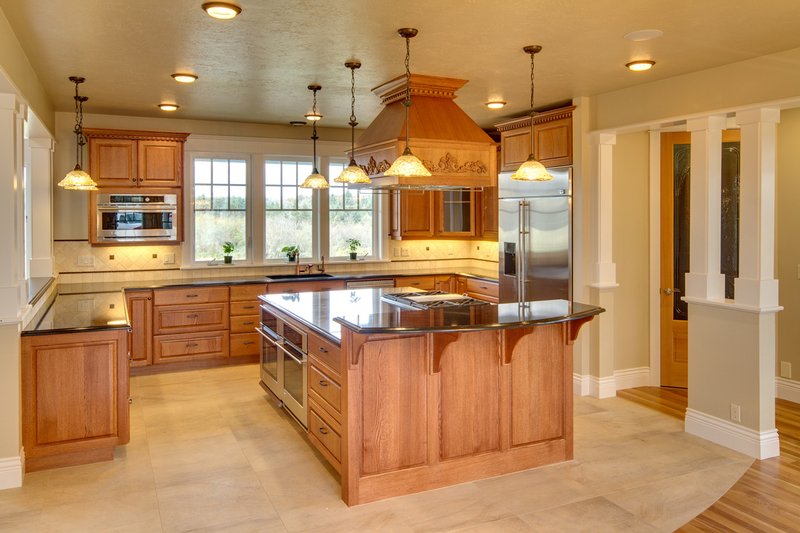

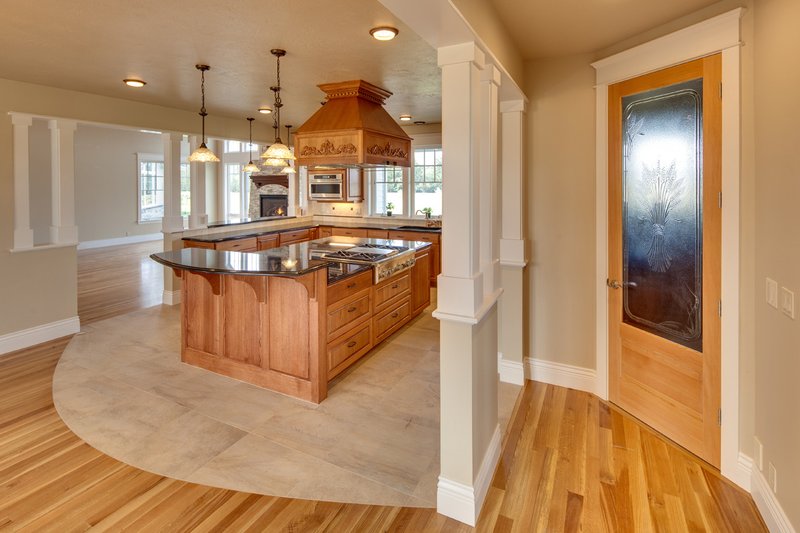

A long conversation bar, ideal for entertaining, rims the counter that bounds the kitchen. Counters and cupboards line two walls. Six burners are built into the exceptionally large work island that anchors the kitchen. A deep pantry is just around the corner, next to a vaulted screened porch with access to the partially covered patio.
This plan was designed with dog owners in mind. Linked to the screened porch and laundry room, the dog area comes complete with a fully enclosed indoor room and run, plus an outdoor run (see highlighted area on floor plan).

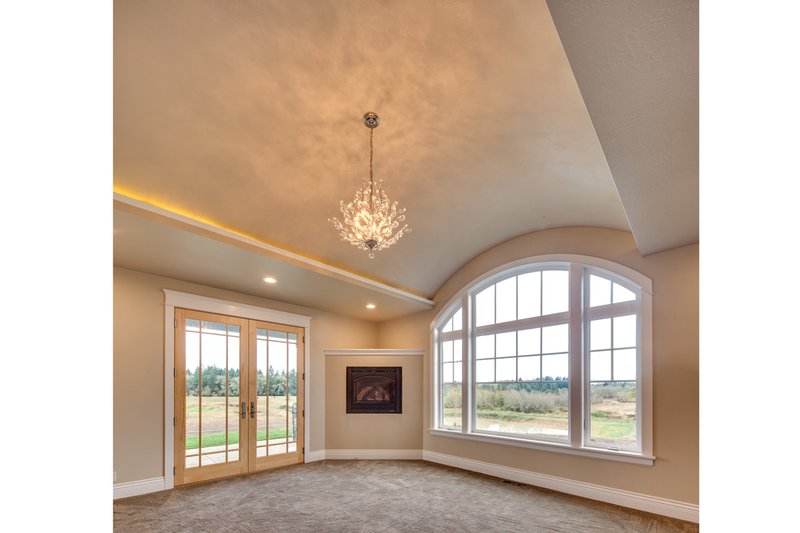

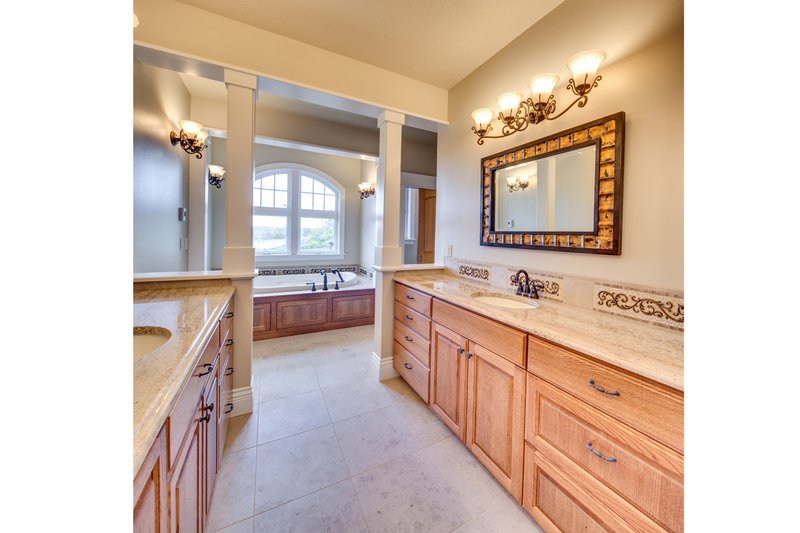

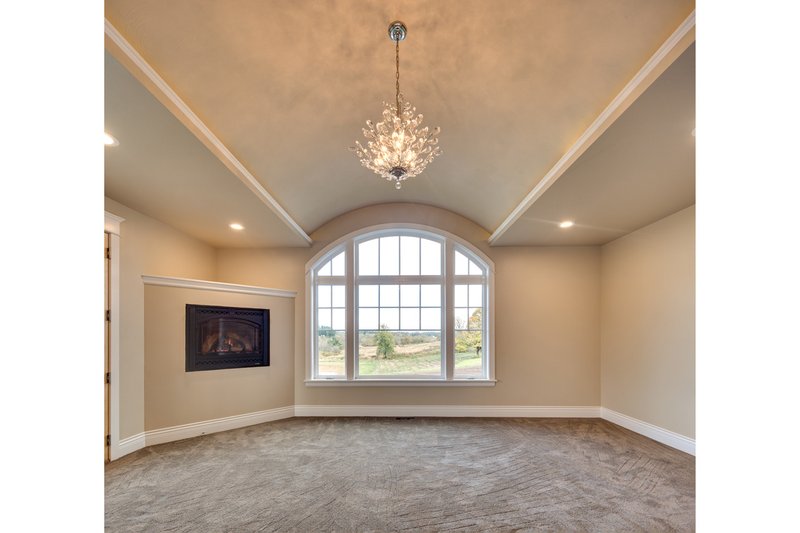

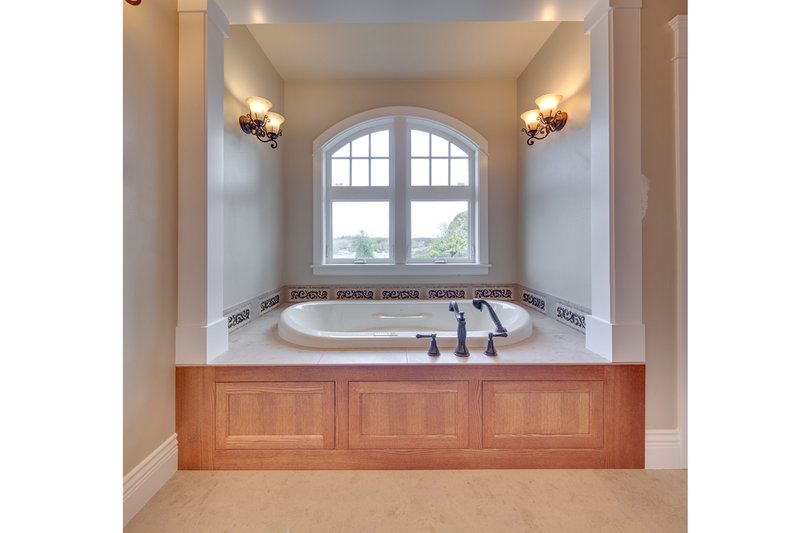

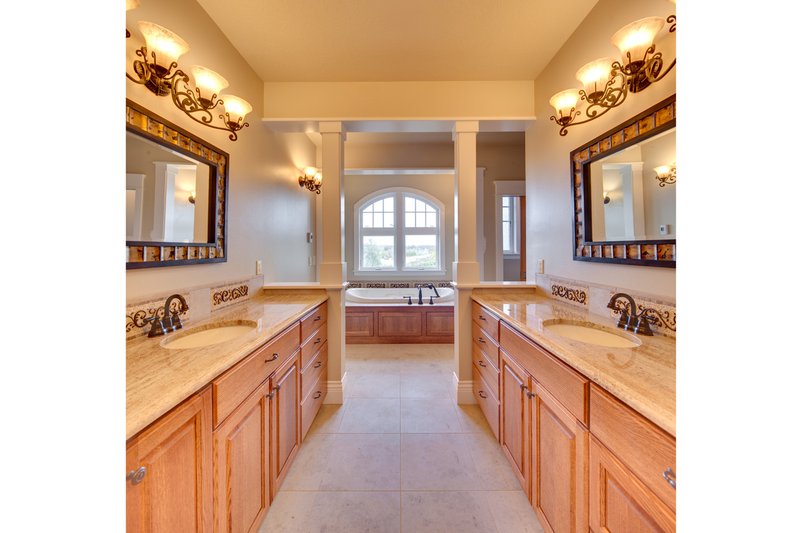

Bedrooms fill the left wing, along with an exercise room and two covered patios. One has a vaulted roof and hot tub. Owners’ suite amenities include a fireplace, spacious walk-in closet, and luxurious bathroom. Two more bedrooms share a two-section bathroom.
Three gabled dormers add charm and bring light into the bonus room over the garage.
Full Specs & Features
Dimension
Depth : 131' 8"
Height : 25' 9"
Width : 145' 1"
Height : 25' 9"
Width : 145' 1"
Area
First Floor: 3758 sq/ft height 9'
Garage: 1207 sq/ft
Second Floor: 810 sq/ft height 9'
Garage: 1207 sq/ft
Second Floor: 810 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10/12
Roof Framing : Truss/Stick
Roof Load : 20
Roof Type : Shingle
Roof Framing : Truss/Stick
Roof Load : 20
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2x6
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Sunroom
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Sunroom
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
Covered Rear Porch
Screened Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
158 sq/ft width 13' 6" x depth 11' 8"
Bedroom 3:
216 sq/ft width 12' 3" x depth 17' 8"
Den:
177 sq/ft width 14' x depth 12' 8"
Dining Area:
225 sq/ft width 15' x depth 15'
Garage:
1207 sq/ft width 43' x depth 27'
Living Room:
546 sq/ft width 21' x depth 26'
Owner's Bedroom:
346 sq/ft width 17' x depth 20' 4"
Recreation Room:
559 sq/ft width 43' x depth 13'
Screened Porch:
386 sq/ft width 17' 8" x depth 17'
What's Included In This Plan Set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

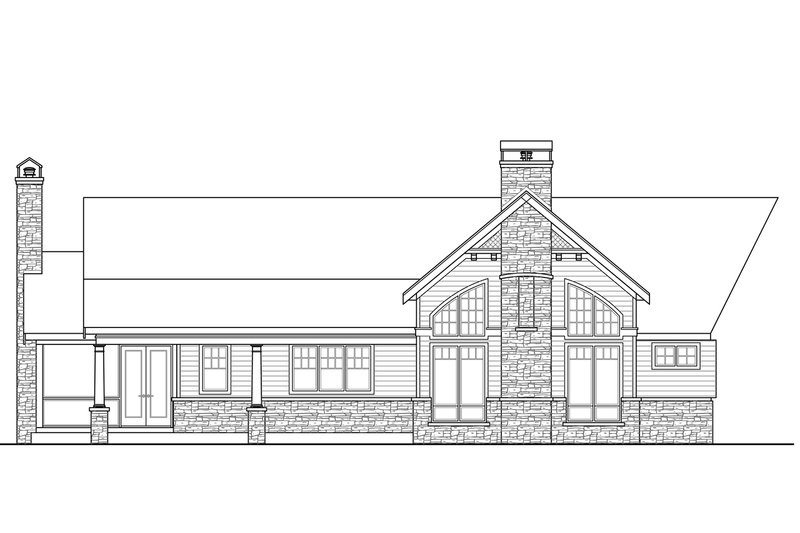

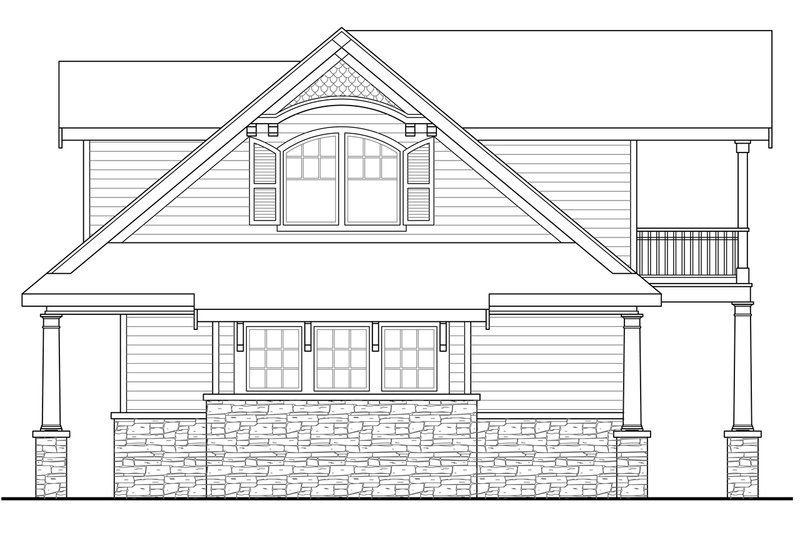

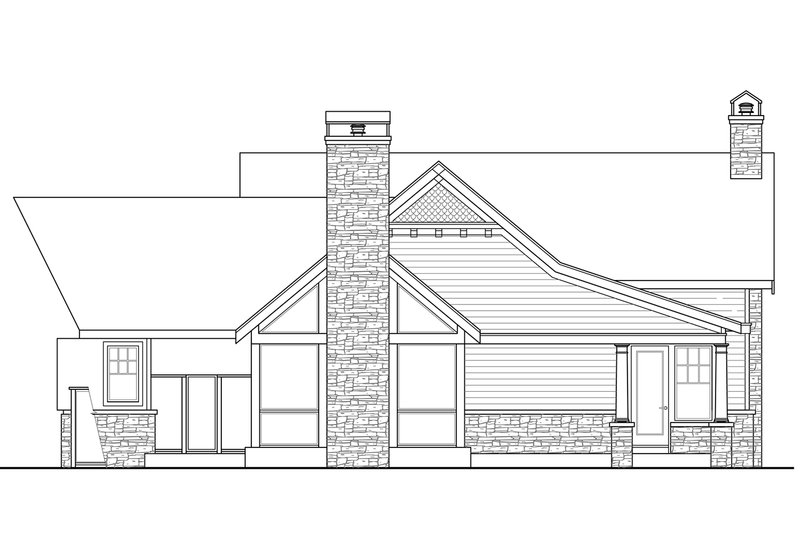

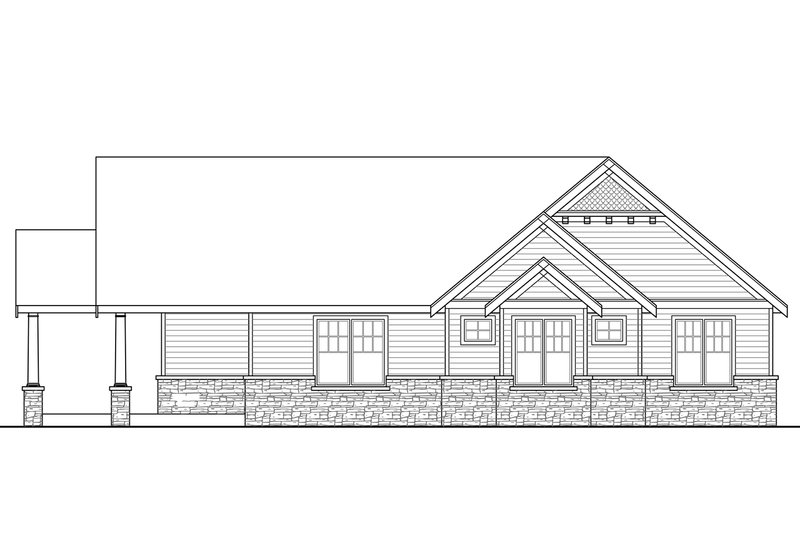

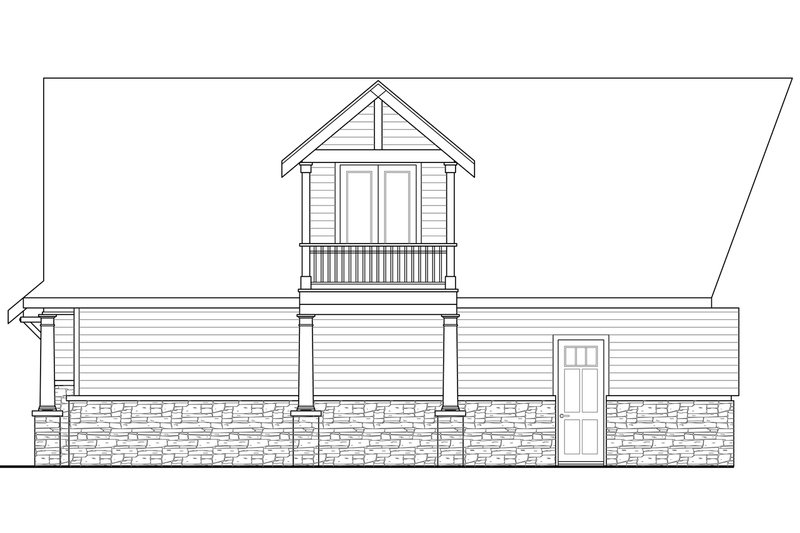

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Questions? Call 1-800-447-0027
Plan Set
| PDF Print Set : $1655.00 |
A non-modifiable, print only PDF file |
| 5 Copy and PDF Set : $1805.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Eight Copy and PDF Set : $1955.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| PDF Master Set : $3350.00 |
An unlocked, modifiable PDF file |
| CAD Set : $3675.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Master Builder Package : $4045.00 |
Includes CAD Set, PDF Masters and Unlimited Build License |
| Single Set : $1325.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $400.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $475.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Additional Options
| Right-Reading Reverse : $300.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Additional Use License : $1325.00 |
Additional Use License. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
