PLAN 117-823
Photographs may show modified designs.
- Jump to:
- All (6)
- Floor plans (4)
Get Personalized Help
Key Specs
4605
sq ft
2
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBFALL
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 117-823
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

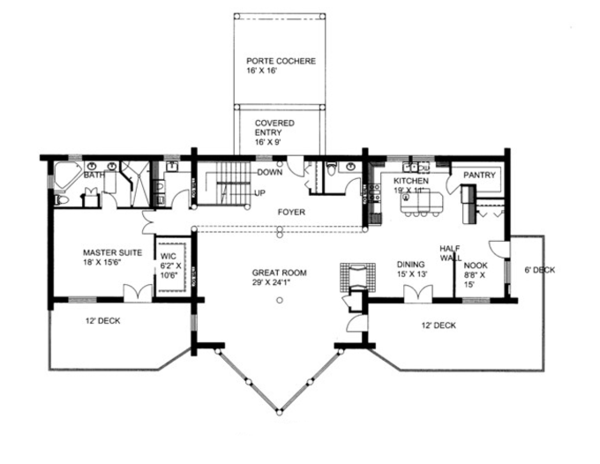

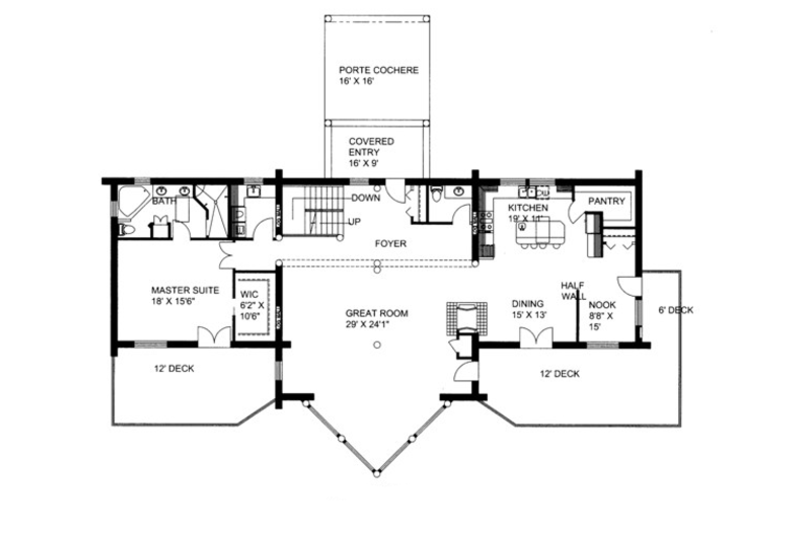

Floor Plan - Main Floor

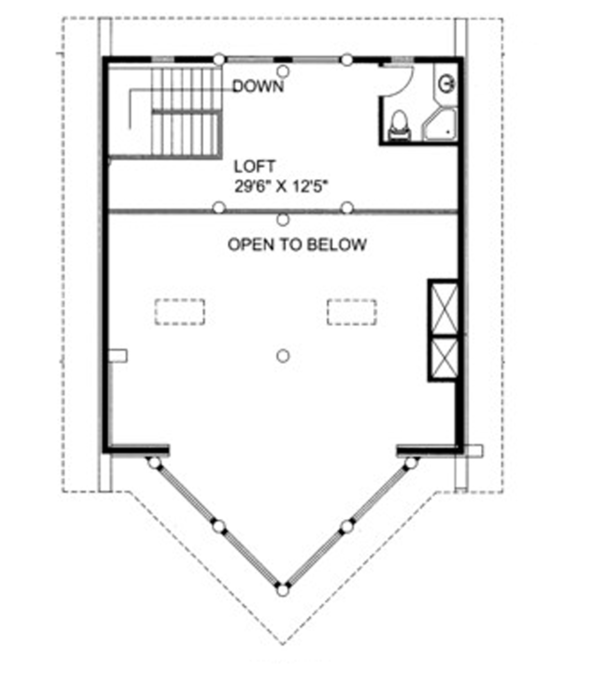

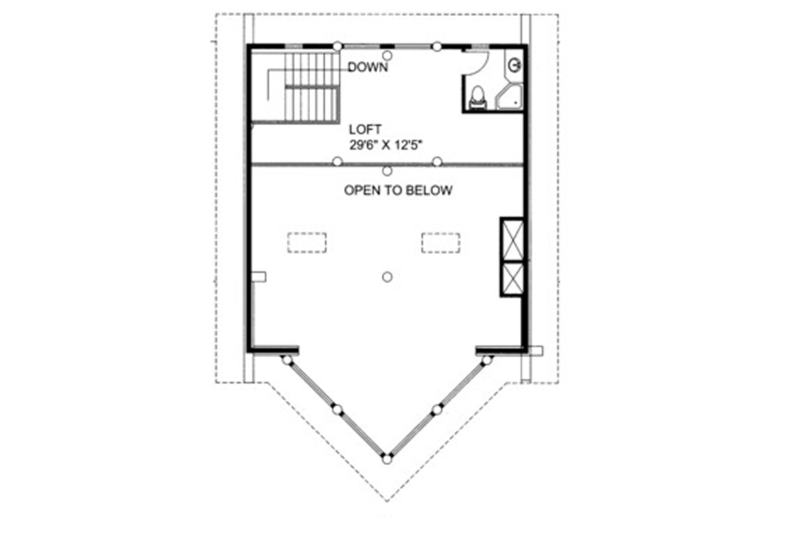

Floor Plan - Upper Floor

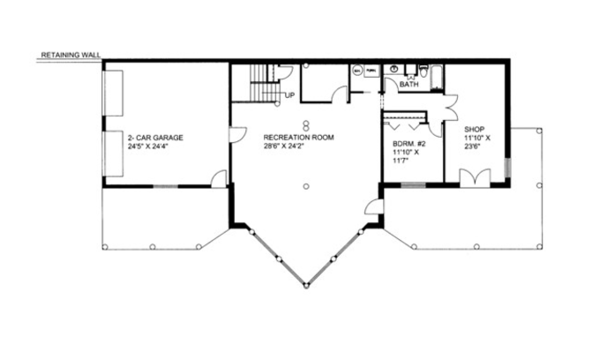

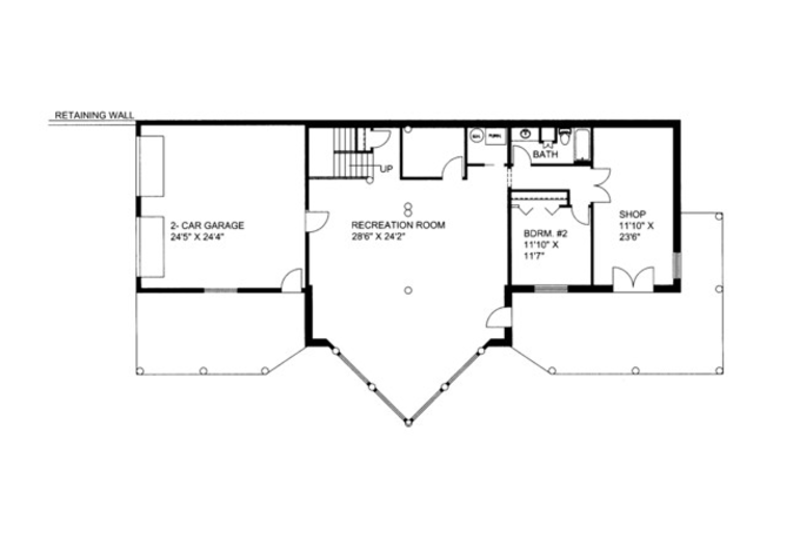

Floor Plan - Lower Floor

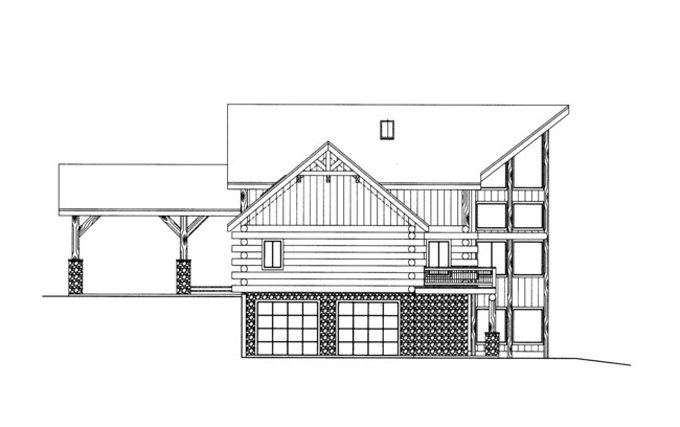

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 53' 9"
Height : 37' 7"
Width : 80'
Area
Basement Living: 1813 sq/ft
First Floor: 2388 sq/ft height 9'
Garage: 642 sq/ft height 9'
Second Floor: 404 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Log
Framing : Log
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Loft
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
width 11' 10" x depth 11' 7"
Breakfast:
width 80' 8" x depth 15'
Dining:
width 15' x depth 13'
Entry:
width 16' x depth 9'
Game Room:
width 28' 6" x depth 24' 2"
Garage:
642 sq/ft width 24' 5" x depth 24' 4"
Great Room:
width 29' x depth 24' 1"
Kitchen:
width 19' x depth 11'
Loft:
width 29' 6" x depth 12' 5"
Master Bedroom:
width 18' x depth 15' 6"
Master Closet:
width 6' 2" x depth 10' 6"
Porte Cochere:
width 16' x depth 16'
What's Included In This Plan Set
- Foundation Plan(s): Footing locations, foundation details, etc.
- Floor Plan(s): Layout of floor plan, window/door schedule, interior and exterior dimensions
- Exterior Elevations: Exterior on all four sides, siding notes, roof pitches, garage door heights, etc.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Cut-through view of home. Shows foundation, insulation, wall construction, ceiling heights, etc.
- Electrical Plan(s): Lighting, switches, electrical outlet placement throughout home.
- Detail Sheet(s): Additional structural details included in most log and ICF plans. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Construction Notes / Detail(s): Referencing the entirety of the project.
- Framing Detail(s): Location of supporting walls and beams. Location/spacing of floor joists, floor framing details. Layout of roof, roof framing details, truss/rafter locations, connection details etc. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Plan Set
$1950.75
$1950.75
$2545.75
Foundation
$0.00
Framing
$0.00
Additional Options
$165.75
$140.25
$335.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
