Key Specs
4646
sq ft
3
Beds
3.5
Baths
1
Floors
0
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 429-143
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

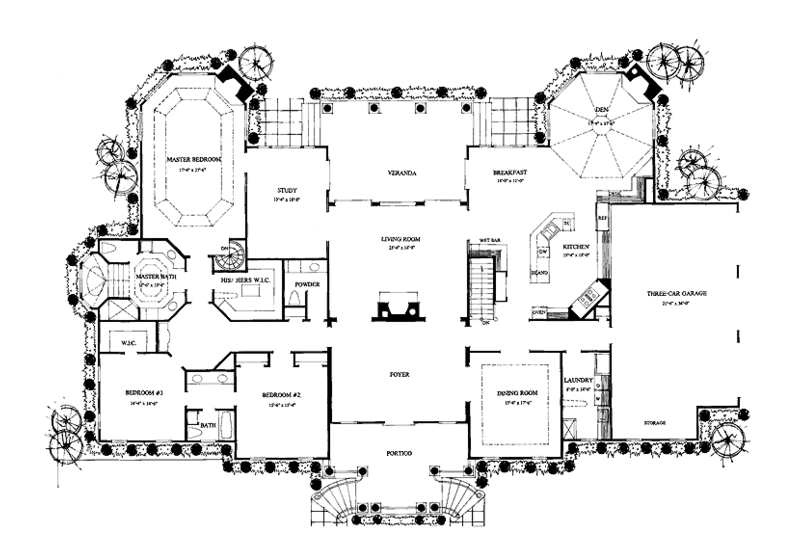

Floor Plans
Full Specs & Features
Dimension
Depth : 76'
Height : 29'
Width : 111' 10"
Area
Basement Living: 1974 sq/ft
First Floor: 4646 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
237 sq/ft width 15' 6" x depth 15' 4"
Bedroom 3:
207 sq/ft width 14' 4" x depth 14' 6"
Breakfast Room:
154 sq/ft width 14' x depth 11'
Den/Office or Bedroom 1:
303 sq/ft width 17' 4" x depth 17' 6"
Dining Room:
268 sq/ft width 15' 4" x depth 17' 6"
Garage:
725 sq/ft width 21' 4" x depth 34'
Kitchen:
347 sq/ft width 19' 4" x depth 18'
Laundry Room:
116 sq/ft width 8' x depth 14' 6"
Living Room:
435 sq/ft width 23' 4" x depth 18' 8"
Master Bathroom:
233 sq/ft width 17' 6" x depth 13' 4"
Master Bedroom:
476 sq/ft width 17' 4" x depth 27' 6"
Porch - Front:
138 sq/ft width 23' x depth 6'
Study:
248 sq/ft width 13' 4" x depth 18' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

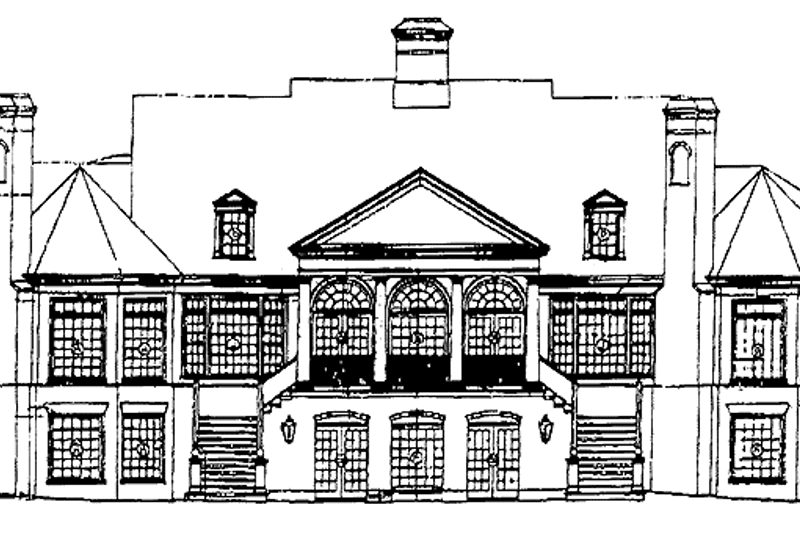

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1100.00
$1250.00
$1250.00
$1500.00
$950.00
Foundation
$0.00
Framing
$0.00
Additional Options
$65.00
$100.00
$39.00
$200.00
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
