PLAN 453-406

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

4672
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
NOW $1755.00
You save $195.00 (10% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 453-406

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

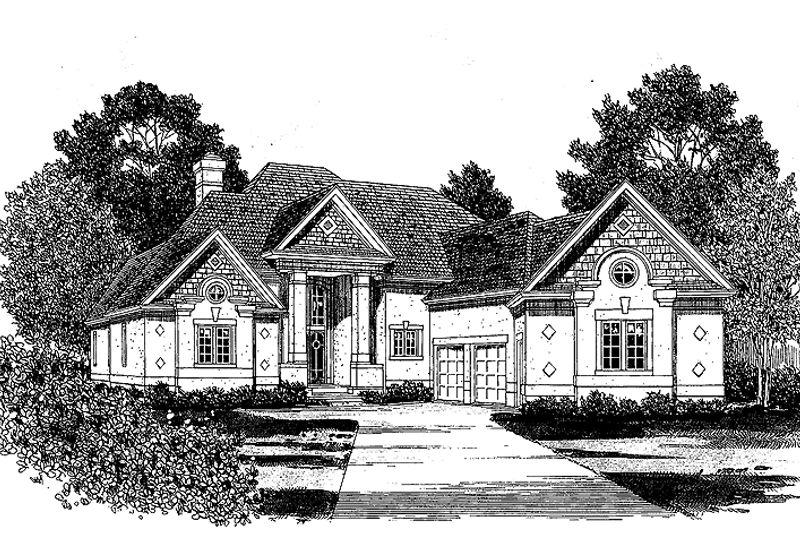

A trio of gables allow light to filter inside through original and decorative windows on this contemporary design. A side-loading, three-car garage provides more than enough room for the family fleet, and includes storage! Enter from the portico into the foyer and you'll be facing the hearth-warmed great room which connects to the dining room--and each room has sliding-door access to the rear terrace. To the far left is the master bedroom, complete with a reading room and lavish bath. To the far right are the sun room, breakfast nook, and island kitchen. Two bedrooms, each with a private bath, reside upstairs with the bonus room.

Full Specs & Features


Dimension

Depth : 93' 2"

Height : 34'

Width : 67'

Area

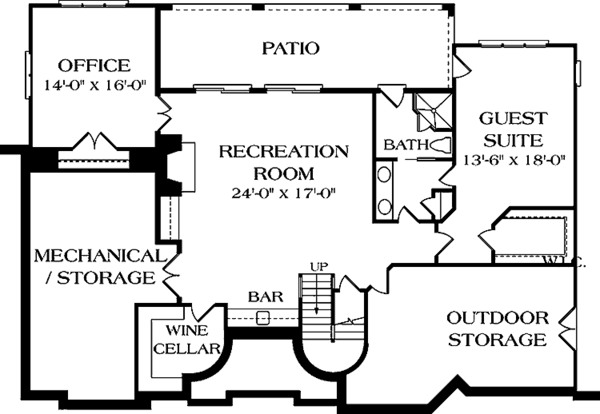

Basement Living: 1486 sq/ft

Bonus: 450 sq/ft

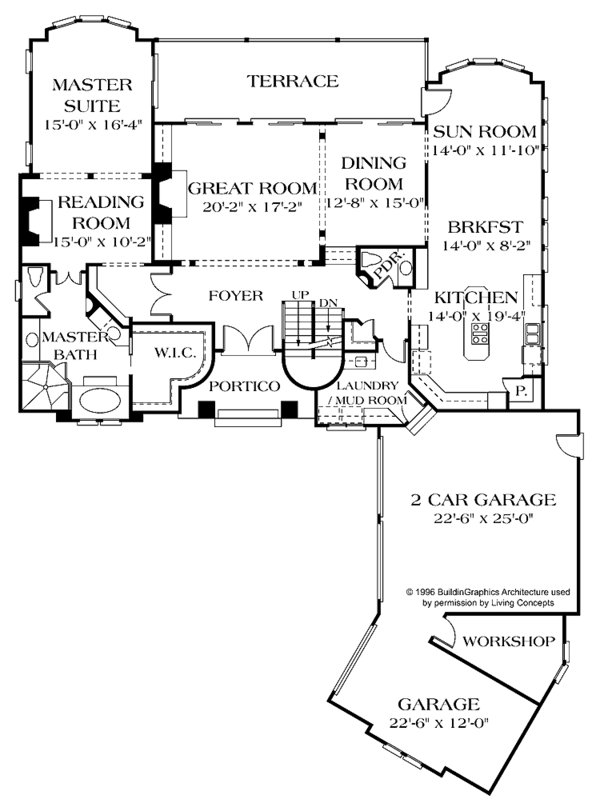

First Floor: 2394 sq/ft

Second Floor: 792 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Master Sitting Area

Storage Area

Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Screened Porch

Rooms

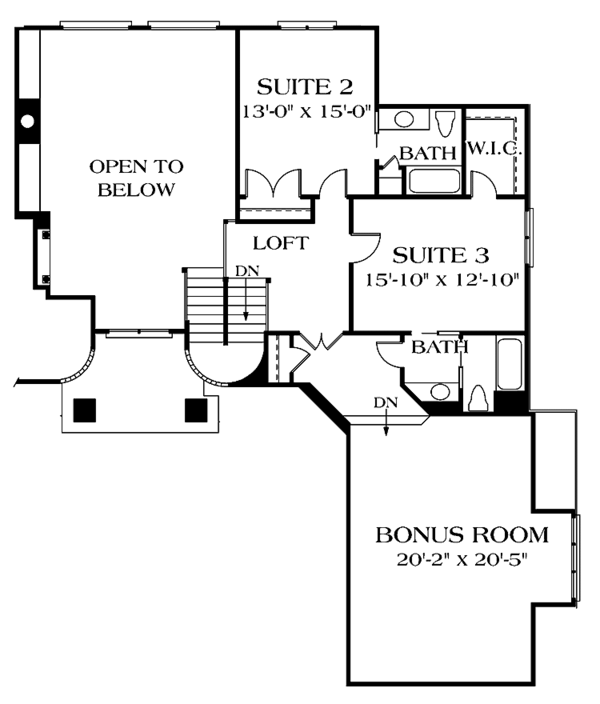

Bedroom 2:

195 sq/ft width 13' x depth 15'

Bedroom 3:

203 sq/ft width 15' 10" x depth 12' 10"

Bonus Room - Finished:

411 sq/ft width 20' 2" x depth 20' 5"

Breakfast Room:

114 sq/ft width 14' x depth 8' 2"

Dining Room:

190 sq/ft width 12' 8" x depth 15'

Garage:

562 sq/ft width 22' 6" x depth 25'

Garage Two:

270 sq/ft width 22' 6" x depth 12'

Grand Room:

346 sq/ft width 20' 2" x depth 17' 2"

Kitchen:

270 sq/ft width 14' x depth 19' 4"

Library - Upper:

152 sq/ft width 15' x depth 10' 2"

Master Bedroom:

244 sq/ft width 15' x depth 16' 4"

Sun Room:

165 sq/ft width 14' x depth 11' 10"

What's Included In This Plan Set


This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans (framing may be shown on floor plans in some cases.)
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1755.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1755.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse:
$180.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$45.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
