PLAN #1060-34

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

An octagonal formal dining room and archways throughout the home are a few of the details that make this ranch plan unique. Off the entry is a bedroom that can be used as a home office or guest room. The master suite offers a large walk in closet and a relaxing master bath with separate shower and garden tub. There are 2 additional bedrooms on the main level, each with a roomy closets. The lower level has a vast family/media room, 2 more bedrooms and a large storage room.

Floor Plans

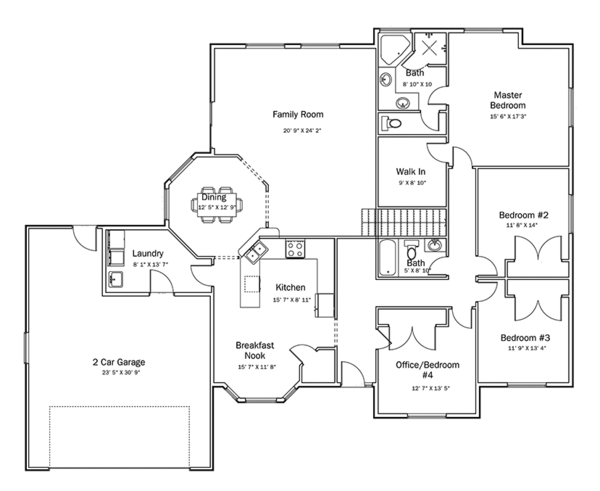

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #1060-34

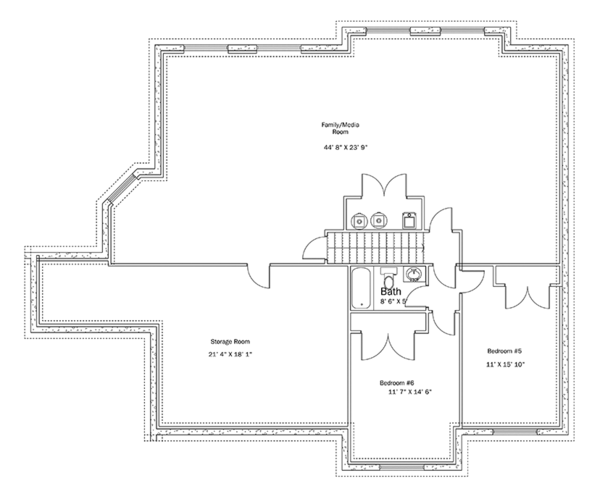

Floor Plan - Lower Floor Plan
Ranch Floor Plan - Lower Floor Plan Plan #1060-34

Full Specs & Features

Dimension Depth : 56' 9"
Height : 25' 4"
Width : 70' 5"
Area Garage : 622 sq/ft
Lower Floor : 2326 sq/ft
Main Floor : 2356 sq/ft
Bedroom Features Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Kitchen Features Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Media Room
Storage Area
Garage Features Front Entry Garage
Outdoor Spaces Covered Front Porch
Basement Family/ Media Room 1061 sq/ft width 44' 8" x depth 23' 9"
Basement Storage 386 sq/ft width 21' 4" x depth 18' 1"
Bath 2 44 sq/ft width 5' x depth 8' 10"
Bath 3 43 sq/ft width 5' x depth 8' 6"
Bedroom 2 163 sq/ft width 11' 8" x depth 14'
Bedroom 3 157 sq/ft width 11' 9" x depth 13' 4"
Bedroom 5 168 sq/ft width 11' 7" x depth 14' 6"
Bedroom 6 199 sq/ft width 11' x depth 18' 1"
Breakfast 182 sq/ft width 15' 7" x depth 11' 8"
Covered Front Porch 75 sq/ft width 0" x depth 0"
Dining Room 158 sq/ft width 12' 5" x depth 12' 9"
Family Room 501 sq/ft width 20' 9" x depth 24' 2"
Garage 622 sq/ft width 23' 5" x depth 30' 9"
Kitchen 139 sq/ft width 15' 7" x depth 8' 11"
Laundry Room 110 sq/ft width 13' 7" x depth 8' 1"
Master Bath 88 sq/ft width 8' 10" x depth 10'
Master Bedroom 267 sq/ft width 15' 6" x depth 17' 3"
Master Closet 80 sq/ft width 9' x depth 8' 10"
Office/ Bedroom 4 169 sq/ft width 12' 7" x depth 13' 5"
