PLAN 117-531

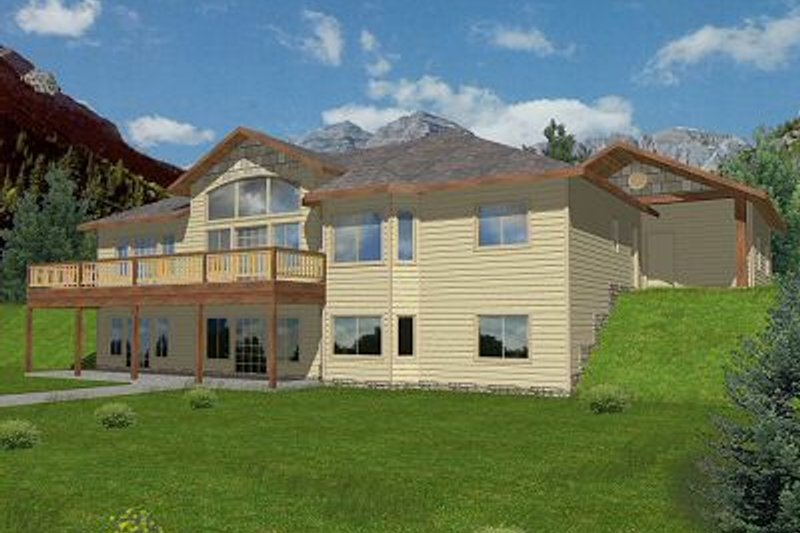

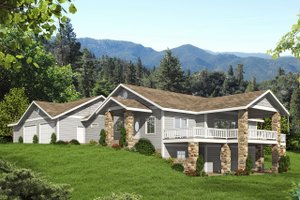

Dream House Plan - Modern Exterior - Front Elevation Plan #117-531

Key Specs

sq ft





Select Plan Set Options

What's included?
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 117-531

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Full Specs & Features

Depth : 54'
Height : 21' 10"
Width : 74'

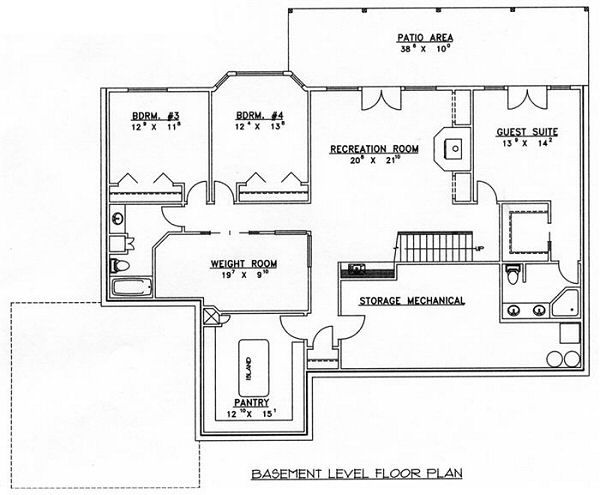

Basement Living: 2342 sq/ft
First Floor: 2342 sq/ft
Garage: 553 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"

Bedroom 3:

148 sq/ft width 12' 9" x depth 11' 8"

Bedroom 4:

168 sq/ft width 12' 4" x depth 13' 8"

Breakfast Area:

182 sq/ft width 12' 4" x depth 14' 10"


380 sq/ft width 38' x depth 10'

Dining Room:

196 sq/ft width 14' x depth 14'

Exercise Room:

192 sq/ft width 19' 7" x depth 9' 10"


544 sq/ft width 23' 4" x depth 23' 4"

Great Room:

396 sq/ft width 18' 2" x depth 21' 10"

Guest Suite:

194 sq/ft width 13' 9" x depth 14' 2"


218 sq/ft width 13' x depth 16' 10"

Master Bedroom:

288 sq/ft width 16' x depth 18'

Porch - Front:

164 sq/ft width 18' 4" x depth 9'

Recreation Room:

451 sq/ft width 20' 8" x depth 21' 10"


105 sq/ft width 10' 6" x depth 10'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

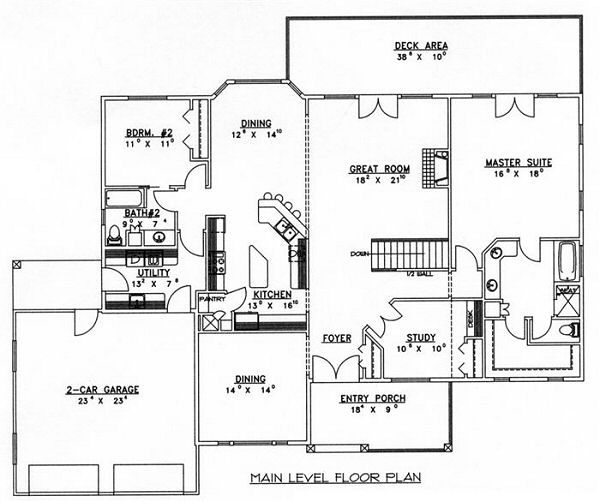

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set :
5 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
