PLAN 453-257
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This Northwest Coastal/country-style home extends livability outside with its
front and back porches and elevated deck. The first floor flows from the open
family
room and breakfast nook to the kitchen with U-shaped counters. The dining room
opens to the kitchen and the foyer. In the front, a guest suite contains a
private bath. Upstairs, the spacious master bedroom has a walk-in closet and
access to the deck. The family bedrooms share a bath with the study. Attached
to the main house by a breezeway, the garage includes an unfinished area above
that
can be converted to an apartment.
Floor Plans

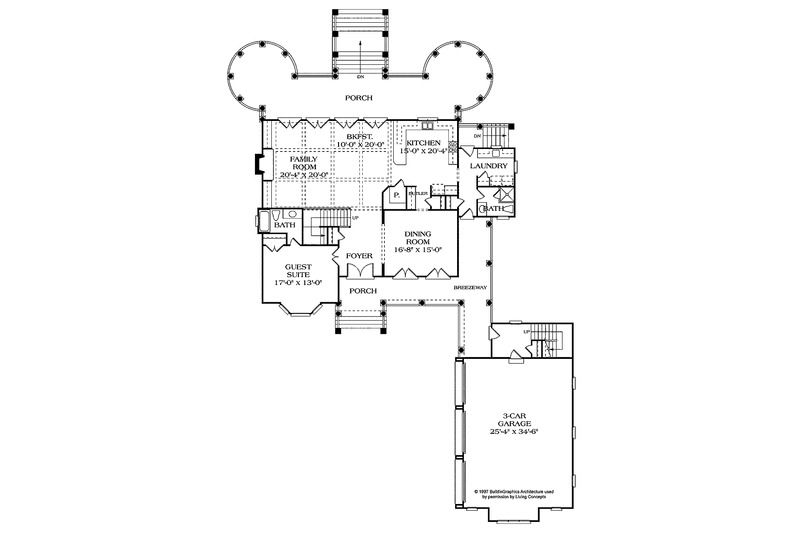

Floor Plan - Main Floor

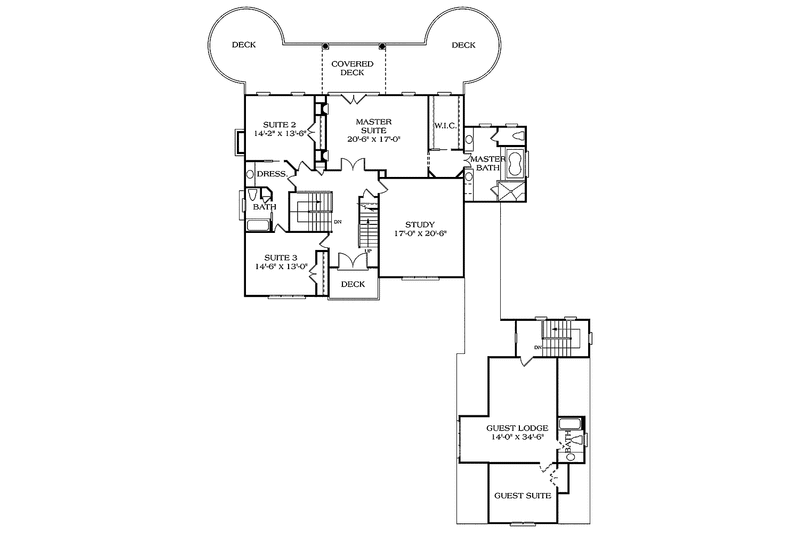

Floor Plan - Upper Floor

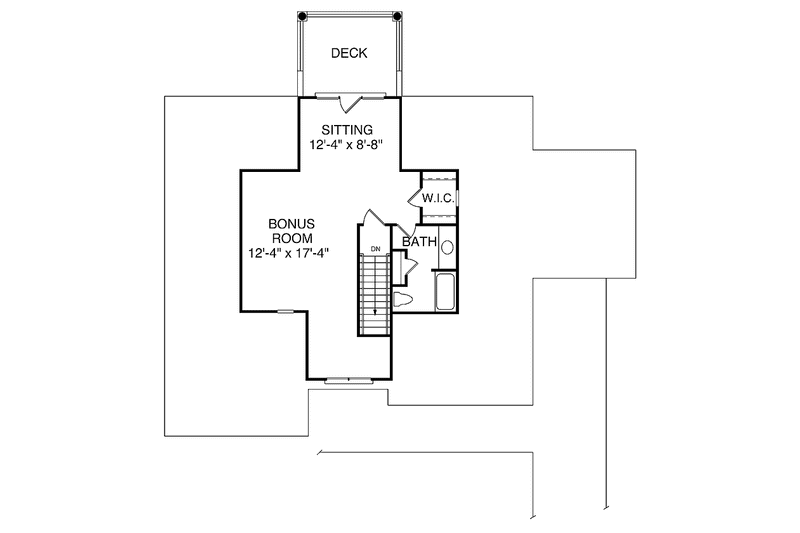

Floor Plan - Other Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 111' 8"
Height : 43'
Width : 80' 8"
Area
First Floor: 2030 sq/ft height 10'
Second Floor: 1967 sq/ft
Third Floor: 688 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
