PLAN #928-277

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This Craftsman plan is aimed at homeowners who desire a vintage look but have modern needs. Inside an open kitchen and dining area provide a stylish and functional work space for entertaining large groups. Upstairs, is the master suite with a large master bath and two additional family bedrooms, each with a private bath. The lover level has a family room, an optional home theater, an exercise room and an guest suite.

Floor Plans

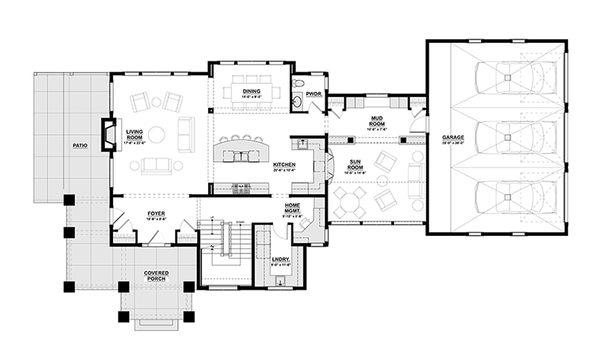

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #928-277

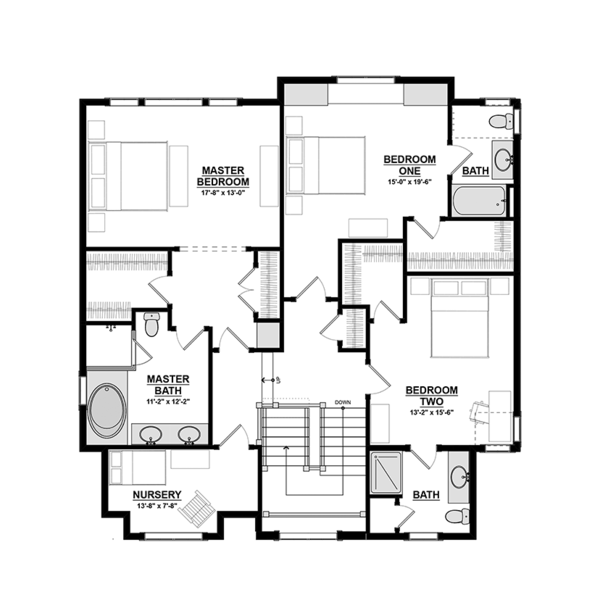

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #928-277

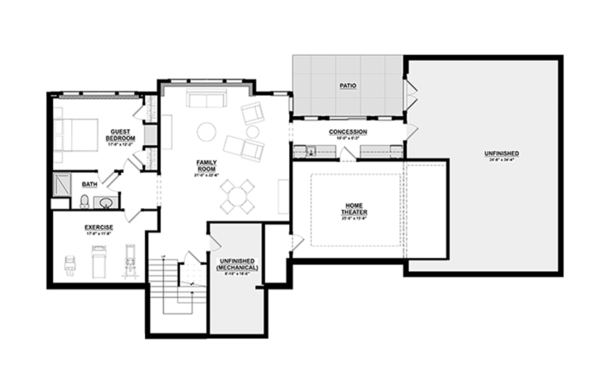

Floor Plan - Lower Floor Plan
Craftsman Floor Plan - Lower Floor Plan Plan #928-277

Full Specs & Features

Depth : 46'
Height : 35' 5"
Width : 91' 10"
Basement Living: 1235 sq/ft
Basement Unfinished: 901 sq/ft
Bonus: 467 sq/ft
First Floor: 1903 sq/ft
Garage: 931 sq/ft
Second Floor: 1550 sq/ft
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Mud Room
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Loft Balcony
Screened Porch Sunroom

Bedroom 1:

width 15' x depth 19' 6"

Bedroom 2:

width 13' 2" x depth 15' 6"

Concession/Wet Bar:

width 18' x depth 6' 3"

Dining Room:

width 14' x depth 9'

Exercise Room:

width 17' x depth 11' 8"

Family Room:

width 21' x depth 22' 6"


width 15' 6" x depth 8' 6"


931 sq/ft width 25' x depth 36'

Guest Room:

width 17' x depth 12' 2"

Home Management Office:

width 5' 10" x depth 8' 8"

Home Theater/Bonus:

467 sq/ft width 25' x depth 15' 9"


width 20' 6" x depth 10' 4"

Laundry Room:

width 9' x depth 11' 6"

Living Room:

width 17' 6" x depth 22'

Master Bath:

width 11' 2" x depth 12' 2"

Master Bedroom:

width 17' 8" x depth 13'

Mud Room:

width 18' x depth 7' 6"


width 13' 8" x depth 7' 8"

Sun Room:

width 18' x depth 14' 6"


width 8' 10" x depth 18'

What's Included In This Plan Set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Wood 2x6:
Wood 2x6
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
