PLAN 453-247

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

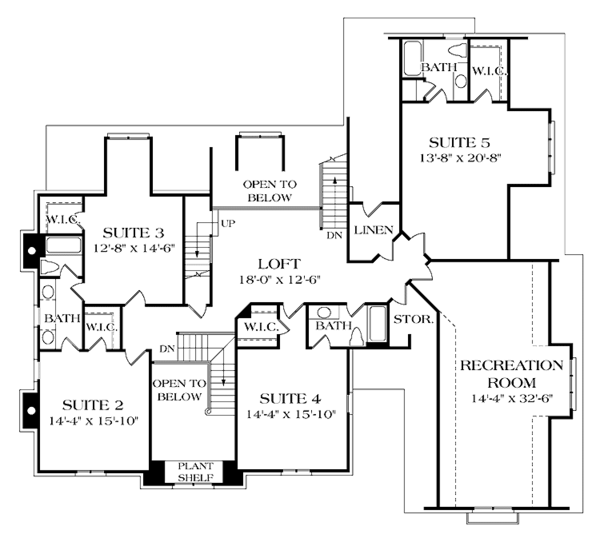

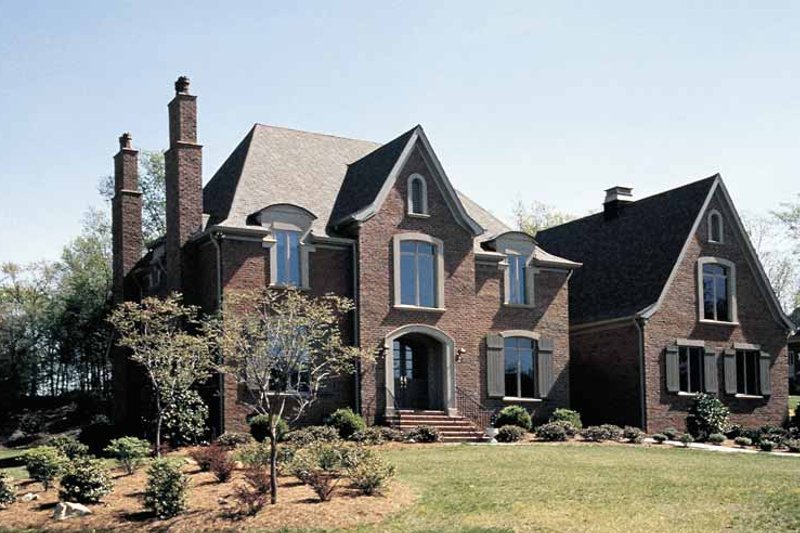

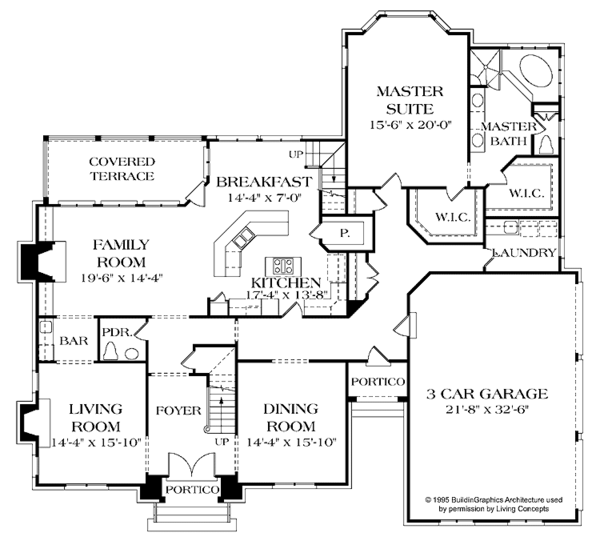

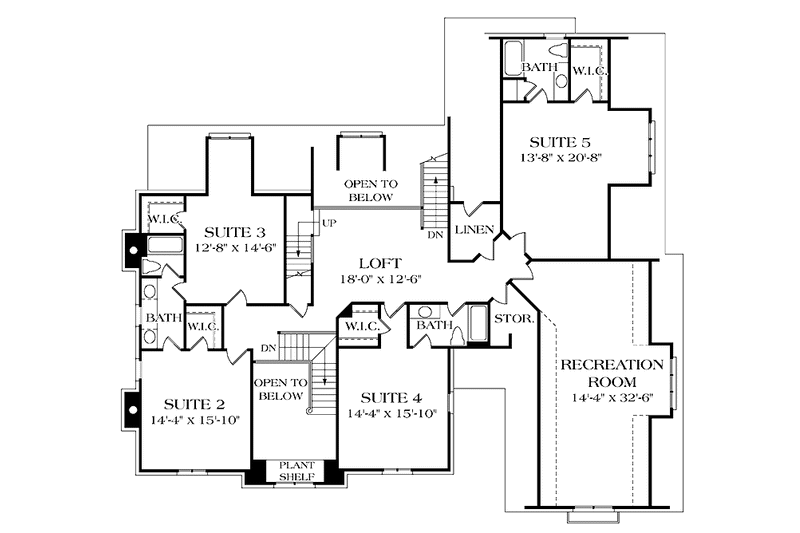

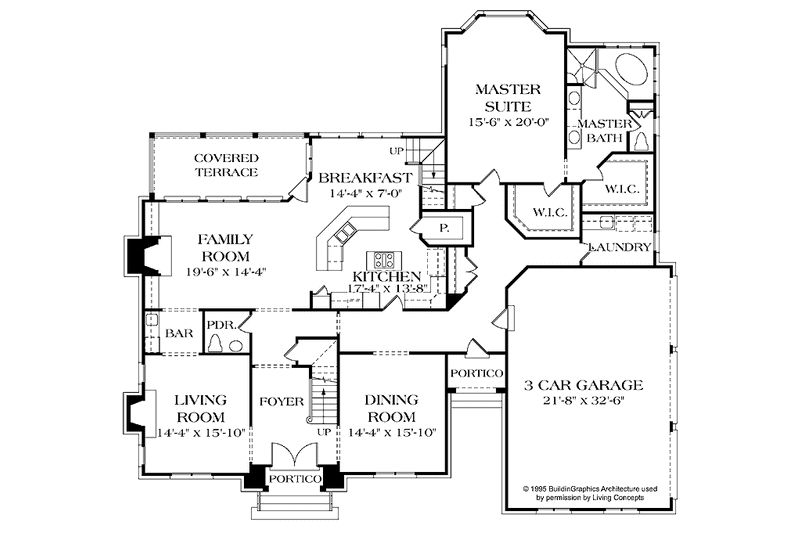

Gables, tall chimneys and gentle curves over the front windows and the entry characterize the exterior of this stately home. Formal areas flank the foyer, where one of two staircases leads to the second floor. A large family room is separated from the kitchen by an angled work area/snack bar, which also serves the breakfast nook. The family chef will appreciate the large pantry and the island cooktop. Outdoor dining and relaxing are encouraged by the covered terrace, while fireplaces in the living and family rooms provide warmth indoors. Bedrooms are split, with a sumptuous master suite on the first floor and four family bedrooms upstairs. A recreation room and a study loft provide plenty of space for family activities. A walk-up attic is reached from the loft area.

Full Specs & Features


Dimension

Depth : 68' 2"

Height : 40'

Width : 74' 6"

Area

Bonus: 545 sq/ft

First Floor: 2721 sq/ft

Second Floor: 1973 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 20:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Living Room / Parlor

Guest Suite

Split Bedrooms

Additional Room Features

Family Room Keeping Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

What's Included In This Plan Set


This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans (framing may be shown on floor plans in some cases.)

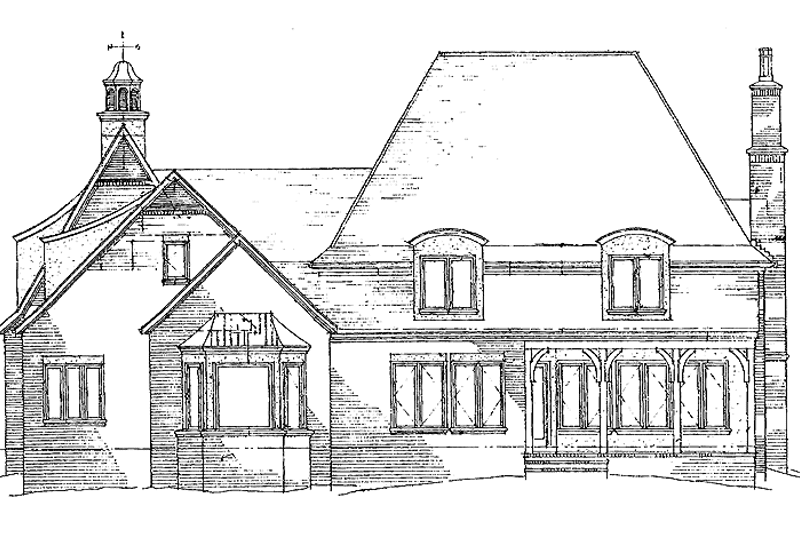

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1657.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1657.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$170.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$42.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
