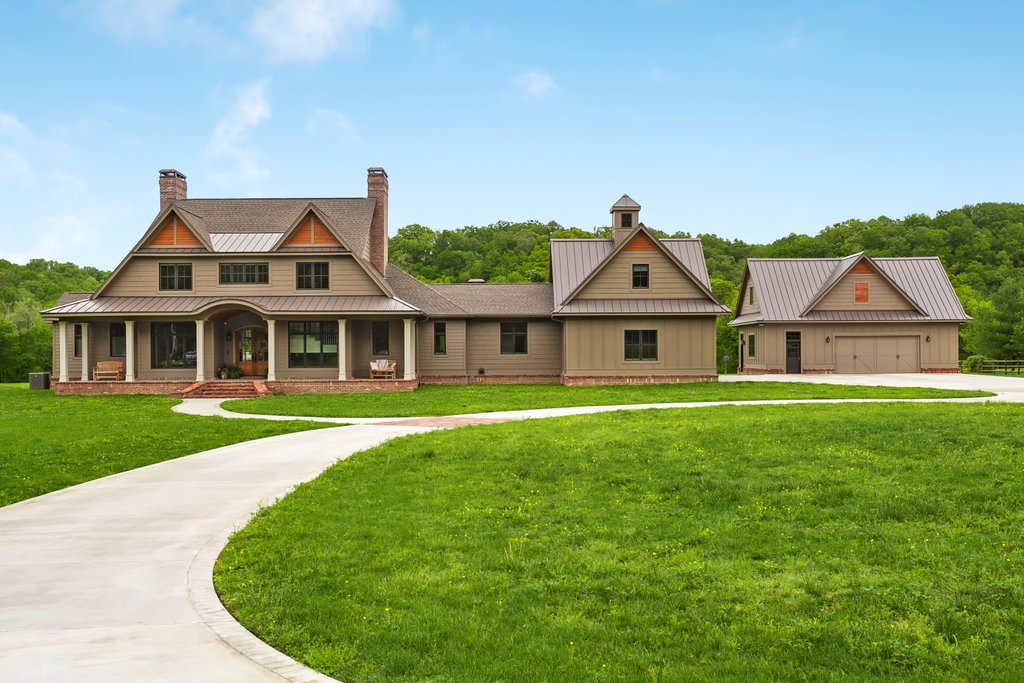

Photographs may show modified designs.
PLAN 928-284
Key Specs
4729
sq ft
4
Beds
4.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 928-284
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
Busy families will love this spacious open layout (designed by Visbeen Architects) and its many practical amenities, including a huge home management center and a kitchen island that seats a whole party. The master suite is conveniently located on this level and boasts a fireplace, a deluxe bathroom with a walk-in closet, and easy access to the laundry room. In the main gathering room, a series of French doors open to the screened outdoor living room. Next to the kitchen, the sunroom provides a fireplace for cozy chats. Another patio sits between the kitchen and the garage. Three more bedrooms (all suites) provide ample space for family and visitors upstairs.
Full Specs & Features
Dimension
Depth : 58'
Height : 40' 8"
Width : 116' 8"
Height : 40' 8"
Width : 116' 8"
Area
First Floor: 3422 sq/ft height 10'
Garage: 948 sq/ft
Second Floor: 1307 sq/ft height 8'
Storage: 56 sq/ft
Garage: 948 sq/ft
Second Floor: 1307 sq/ft height 8'
Storage: 56 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 14:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle/Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Sunroom
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Screened Porch
Courtyard
Covered Front Porch
Screened Porch
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set : $1596.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $3196.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $156.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $80.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $31.20 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $160.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
