Full Specs & Features
Depth : 81' 6"
Height : 35'
Width : 101' 2"
Garage : 1561 sq/ft

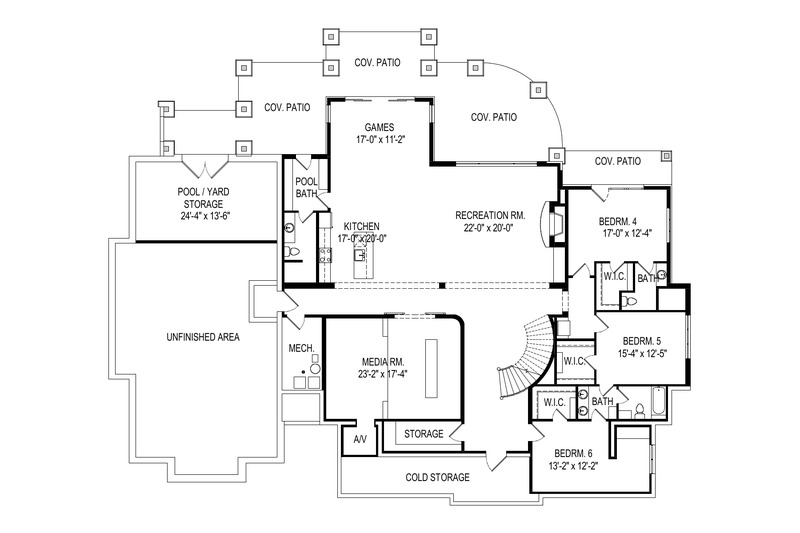

Lower Floor : 3349 sq/ft

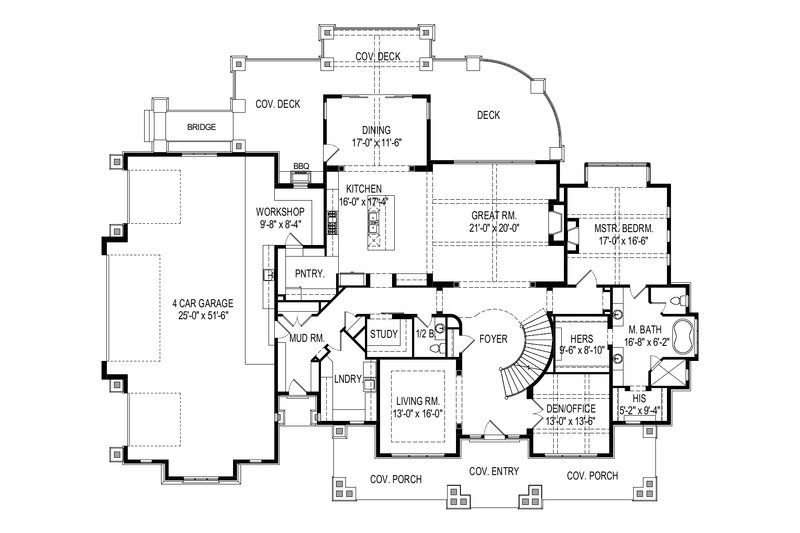

Main Floor : 3242 sq/ft

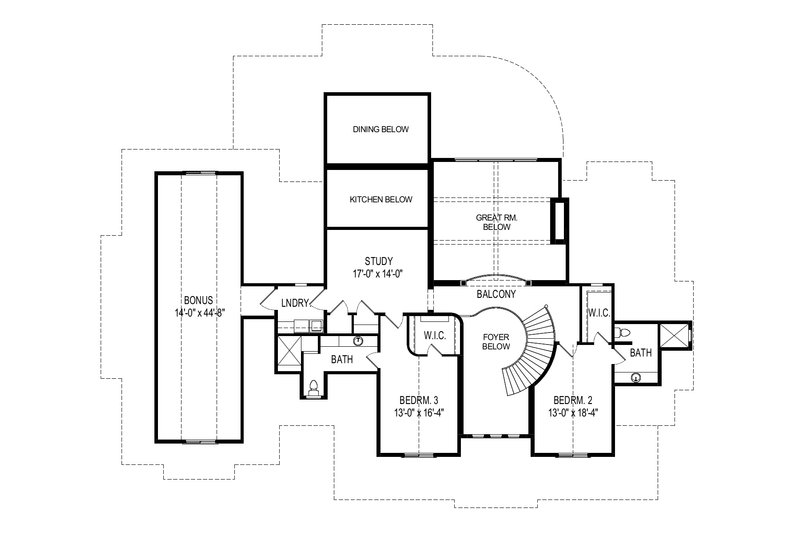

Upper Floor : 1513 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 10'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Exterior Wall Framing
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Side Entry Garage
What's Included In This Plan Set
» See important
information before purchasing.
Cover sheet (with rendering)
Complete schedule page
3D perspective views (not included with all plans)
Floor finish plans
Lighting plans, and power plans.
Please note: These plans may not be available for construction in certain areas within the state of Utah. If you are building in Utah, please give us a call to confirm availability.
Questions? Call 1-800-447-0027
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
5 printed plan sets mailed to you.
8 Copy Set:
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One printed set for bidding purposes only. Not a legal building set for construction.
Walk Out Basement:
Ideal for a sloping lot, lower level with outdoor access.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for sloping lot, lower level of home partially underground.
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Ideal for level lot, single layer concrete poured directly on grade.
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
