PLAN 455-652
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This is a pool house with so much character. The exposed rafters and large decorative gable trusses give this structure amazing curb appeal. Under the large covered porch you will find a kitchen equipped with a built-in grill, a sink, and dual refrigerators. There is a snack bar as well. On the inside you will find a large sitting area with a fireplace and built-ins. There is also a bathroom with a walk-in shower. On the rear side of the pool house is access to a storage room. This is great for pool equipment and toys.
Floor Plans

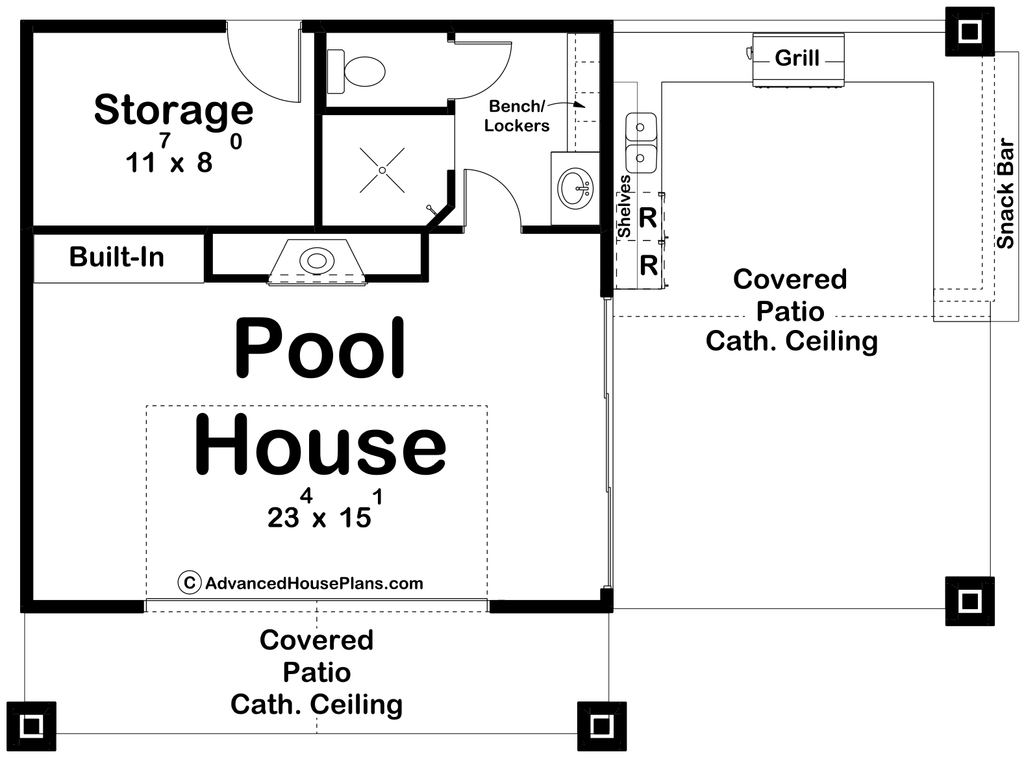

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 30' 3"
Height : 15' 7"
Width : 40' 3"
Area
Main Floor : 477 sq/ft
Patios : 486 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Both covered patios feature cathedral ceilings.
Main Ceiling : 9'
Roof
Primary Pitch : 6/12
Roof Framing : Stick
Exterior Wall Framing
Framing : 2x4
Additional Room Features
Storage Area
Outdoor Spaces
Outdoor Kitchen Grill
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
