PLAN #117-850

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

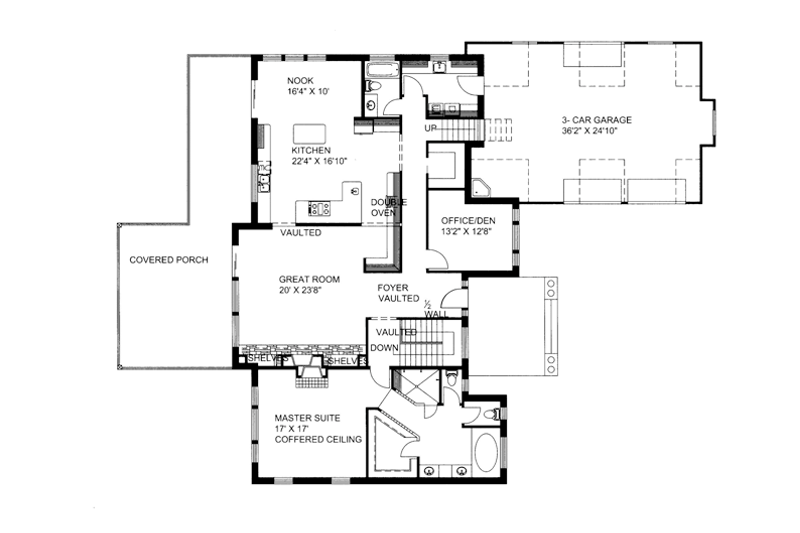

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #117-850

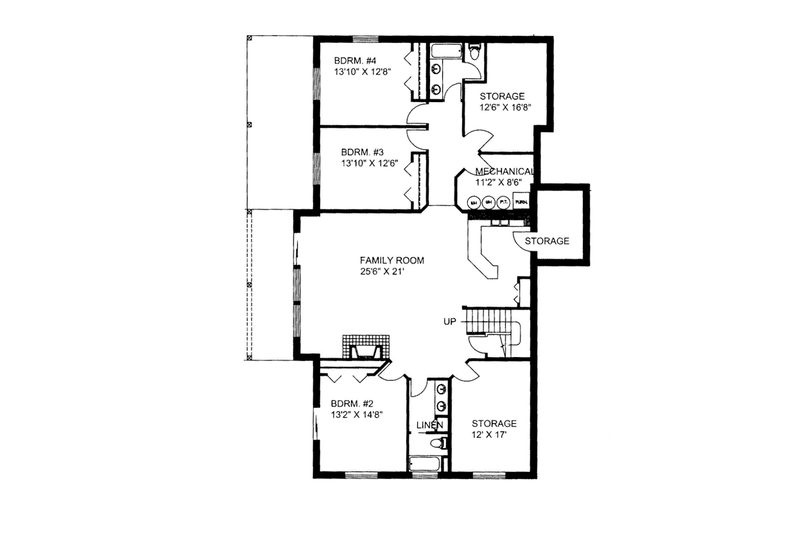

Floor Plan - Lower Floor Plan
Ranch Floor Plan - Lower Floor Plan Plan #117-850

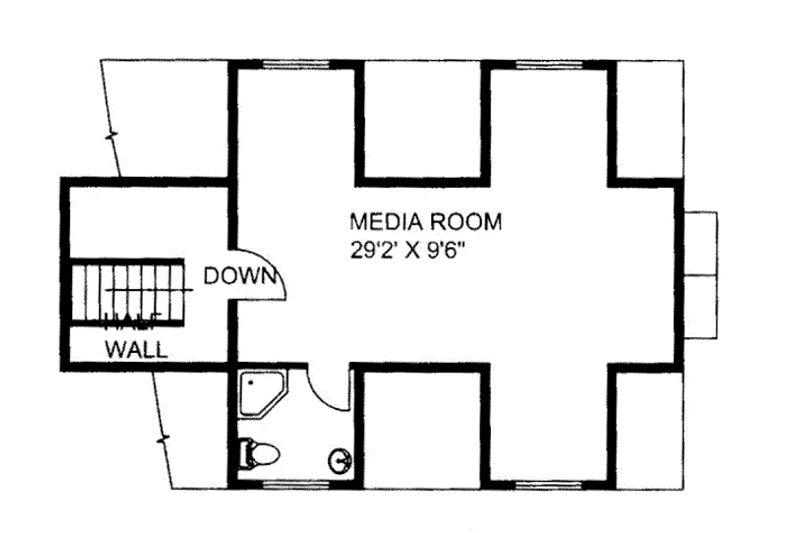

Floor Plan - Other Floor Plan
Ranch Floor Plan - Other Floor Plan Plan #117-850

Full Specs & Features

Depth : 67' 6"
Height : 29' 9"
Width : 93' 6"
Basement Living: 2364 sq/ft
Bonus: 670 sq/ft
First Floor: 2426 sq/ft height 9'
Garage: 997 sq/ft
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

width 14' 8" x depth 13' 2"

Bedroom 3:

width 12' 6" x depth 13' 10"

Bedroom 4:

width 12' 8" x depth 13' 10"

Family Room:

width 21' x depth 25' 6"


997 sq/ft width 24' 10" x depth 36' 2"

Great Room:

width 23' 8" x depth 20'


width 16' 10" x depth 22' 4"

Master Suite:

width 17' x depth 17'

Mechanical Room:

width 8' 6" x depth 11' 2"


width 10' x depth 16' 4"


width 12' 8" x depth 13' 2"

Optional Bonus:

670 sq/ft width 9' 6" x depth 29' 2"

Storage 1:

width 17' x depth 12'

Storage 2:

width 16' 8" x depth 12' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

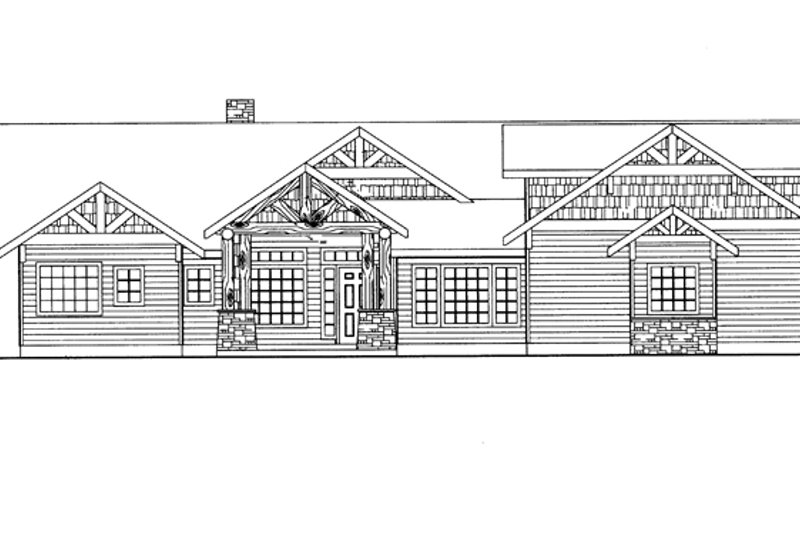

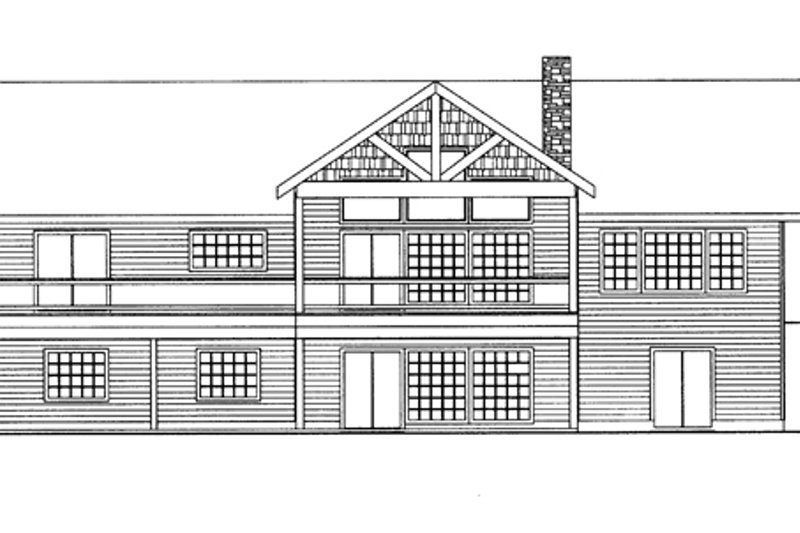

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Insulated Concrete Forms:
Insulated Concrete Forms
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
