PLAN 23-2290

Key Specs

480
sq ft

2
Beds

1
Baths

1
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

With the purchase of this plan, two (2) versions are included in the plan set: One is an uninsulated and unheated version for 3 season use only. The walls are 2'' x 4'', the floor joists are 2'' x 8'' and the rafters are 2'' x 8'' for the roof. The second, is an isolated and heated 4 season version. For this one the walls are 2'' x 6'', the floor joists are 2'' x 10'' and the roof is designed with roof trusses. Both versions are provided on screw piles to ensure stability. Optional other foundations are available.

Floor Plans

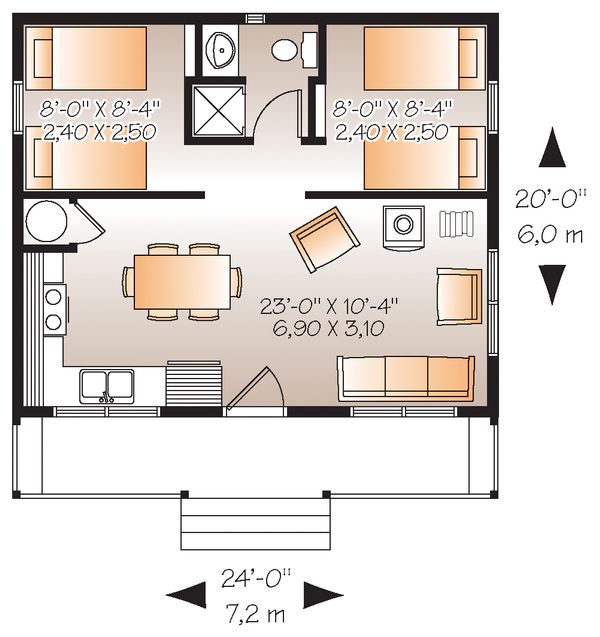

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 20'
Height : 13' 9"
Width : 24'

Area

First Floor: 480 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 2:12
Roof Framing : Rafters
Roof Load : Live 55 psf, Dead 20 psf
Roof Type : Asphalt Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"
Insulation : Exterior R-20, Ceiling R-40

Bedroom Features

Main Floor Bedrooms

Kitchen Features

Breakfast Nook

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 1:

66 sq/ft width 8' x depth 8' 4"

Bedroom 2:

66 sq/ft width 8' x depth 8' 4"

Great Room:

237 sq/ft width 23' x depth 10' 4"

What's Included In This Plan Set

See a sample plan set

Please allow 3-5 business days for fulfillment. This designer will be closed for vacation from July 17 through August 2, 2020. Order your plans now!

Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings
Height and location of foundation indicated in dashed lines
Type of finishing and textures
Dimension and height of chimney

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions
Location and sizes of doors and windows
Types of interior doors that correspond to a schedule
Indication of the structure above (second floor or roof)
Location of columns, beams and floor joists, including dimensions
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath
Location of ridges and valleys

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include an electrical layout.
