Bathroom 2:
62 sq/ft width 7' 4" x depth 8' 6"
Bathroom 3:
29 sq/ft width 5' 7" x depth 5' 4"
Bedroom 2:
170 sq/ft width 11' 9" x depth 14' 6"
Bedroom 2 Closet:
29 sq/ft width 7' 4" x depth 4'
Bedroom 3:
177 sq/ft width 12' x depth 14' 10"
Bedroom 3 Closet:
24 sq/ft width 8' 2" x depth 3'
Bedroom 4:
161 sq/ft width 12' x depth 13' 5"
Bedroom 4 Closet:
24 sq/ft width 8' 2" x depth 3'

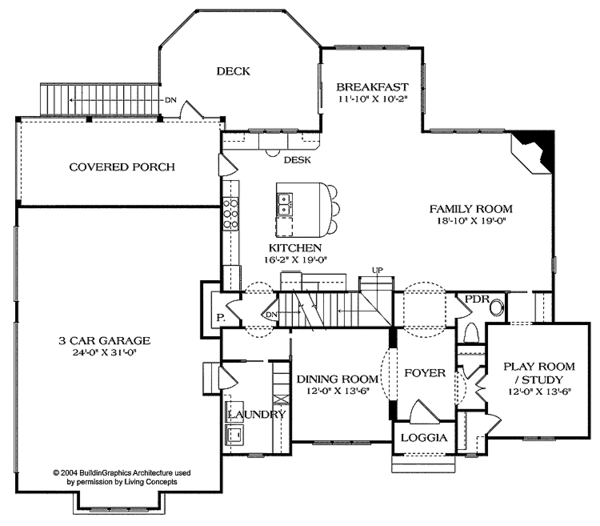

Breakfast Room:
118 sq/ft width 11' 10" x depth 10'
Dining Room:
159 sq/ft width 12' x depth 13' 4"
Family Room:
297 sq/ft width 15' 8" x depth 19'
Foyer:
74 sq/ft width 7' x depth 10' 8"
Laundry Room:
86 sq/ft width 8' x depth 10' 10"
Master Bathroom:
183 sq/ft width 15' 4" x depth 12'
Master Bedroom:
294 sq/ft width 20' 4" x depth 14' 6"
Master Closet:
54 sq/ft width 11' 2" x depth 4' 11"
Master Closet Two:
79 sq/ft width 11' 3" x depth 7' 1"
Office:
102 sq/ft width 12' x depth 8' 7"
Study:
159 sq/ft width 12' x depth 13' 4"
Sun Room:
239 sq/ft width 19' 2" x depth 12' 6"
Wet Bar:
85 sq/ft width 8' 6" x depth 10'
PDF Set : $1657.50 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Reproducible Set : $1657.50 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
CAD Set : $3315.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Wood 2x4: $0.00 |
Wood 2x4 |
Additional Construction Sets : $51.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
Lighting Design : $170.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
Mirror Reversed Sets : $42.50 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
