Plan Description

Just picture yourself living in this amazing Queen Anne, Victorian Tudor style home. Imagine relaxing in the downstairs library, or in the Roman-style bath in the downstairs master suite. Or try to imagine family mealtime in the gourmet kitchen, or family movie night in the large upstairs media room. Other popular features in this home include a wine cellar, formal dining space, a keeping room and an open terrace in back. There are two separate garages, a single-car space and one with 2-car dimensions.

Floor Plans

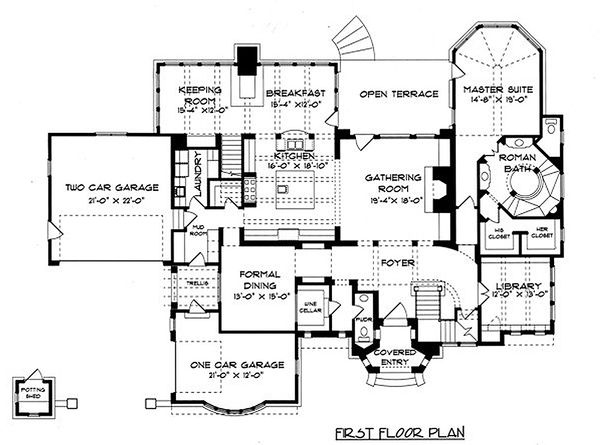

Floor Plan - Main Floor Plan
Tudor Floor Plan - Main Floor Plan Plan #413-124

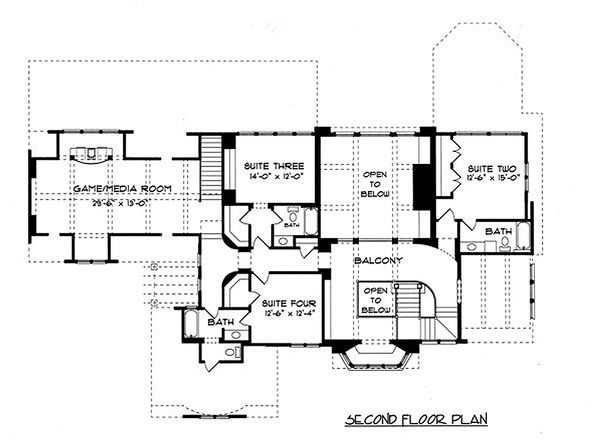

Floor Plan - Upper Floor Plan
Tudor Floor Plan - Upper Floor Plan Plan #413-124

Full Specs & Features

Depth : 69' 3"
Height : 40' 6"
Width : 89' 7"
First Floor: 2948 sq/ft
Second Floor: 1986 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 16:12
Secondary Pitch : 14:12
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Play Flex Room
Storage Area
Wine Cellar
Garage Features
Oversized Garage
Side Entry Garage
Friend S Entry
Outdoor Spaces
Covered Front Porch

Bedroom 2:

187 sq/ft width 12' 6" x depth 15'

Bedroom 3:

168 sq/ft width 14' x depth 12'

Bedroom 4:

154 sq/ft width 12' 6" x depth 12' 4"

Dining Room:

195 sq/ft width 13' x depth 15'


462 sq/ft width 21' x depth 22'

Garage Two:

252 sq/ft width 21' x depth 12'

Gathering Room:

347 sq/ft width 19' 4" x depth 18'


301 sq/ft width 16' x depth 18' 10"

Master Suite:

278 sq/ft width 14' 8" x depth 19'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
