PLAN 54-365

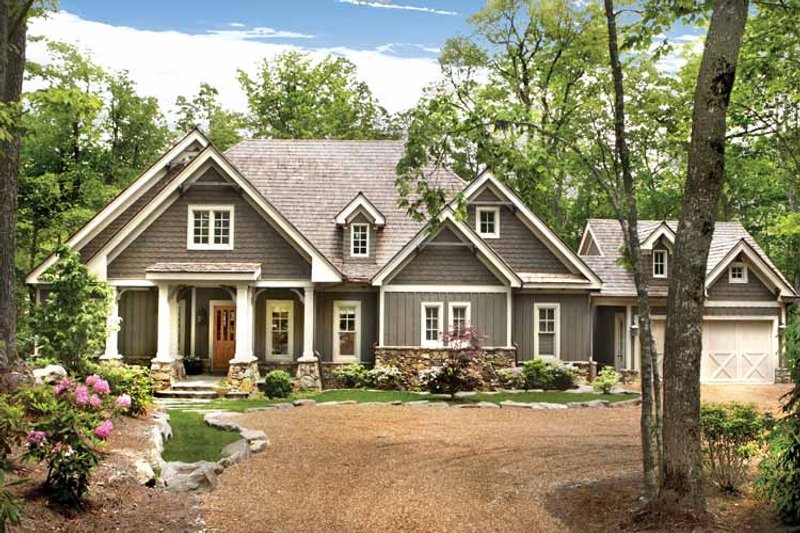

Ranch Exterior - Front Elevation Plan #54-365
Ranch Exterior - Front Elevation Plan #54-365
Ranch Exterior - Rear Elevation Plan #54-365
Ranch Exterior - Other Elevation Plan #54-365
Ranch Exterior - Other Elevation Plan #54-365

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 54-365

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

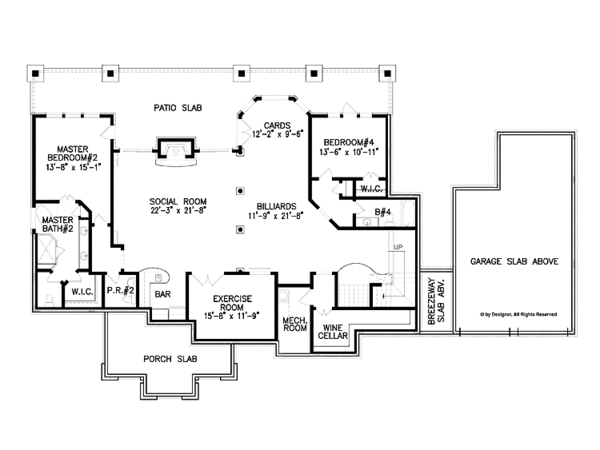

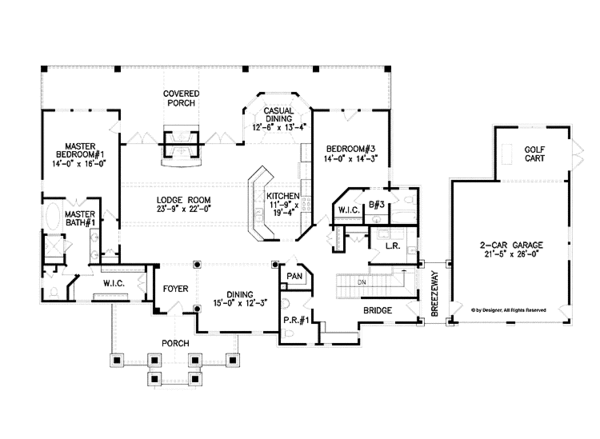

This special cottage offers a flexible layout, with great everyday living on the main level and a fun lower level that’s perfect for housing visitors. The charming exterior highlights the use of warm wood details with stone and cedar shake. A wide covered front porch invites you inside, where you'll find an oversized lodge room accented by a stone fireplace with French doors on either side leading to the rear covered porch. Entertain at the open kitchen's snack-bar island, the bay-windowed nook, or the columned dining room. The generous master suite and an additional bedroom suite rest on opposite sides of the common rooms. A world of recreation waits downstairs, where two bedrooms enjoy a billiards room, bar, and exercise room. This home plan includes an option for a detached two car garage and space for a golf cart.

Full Specs & Features

Depth : 59'
Height : 33'
Width : 98'
Basement Living: 2361 sq/ft
First Floor: 2580 sq/ft height 10'
Garage: 725 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 14:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Upstairs Master Bedrooms
Additional Room Features
Exercise Room
Hobby Rec Room Game Room
Wine Cellar
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 3:

199 sq/ft width 14' x depth 14' 3"

Bedroom 4:

147 sq/ft width 13' 6" x depth 10' 11"

Billiards Room:

254 sq/ft width 11' 9" x depth 21' 8"


166 sq/ft width 12' 6" x depth 13' 4"

Dining Room:

183 sq/ft width 15' x depth 12' 3"

Exercise Room:

184 sq/ft width 15' 8" x depth 11' 9"

Game Room:

482 sq/ft width 22' 3" x depth 21' 8"


556 sq/ft width 21' 5" x depth 26'

Great Room:

522 sq/ft width 23' 9" x depth 22'


227 sq/ft width 11' 9" x depth 19' 4"

Master Bedroom:

224 sq/ft width 14' x depth 16'

Master Bedroom:

206 sq/ft width 13' 8" x depth 15' 1"

What's Included In This Plan Set

This designer charges a non-refundable $95.00 fee to review plan changes and prepare an estimate for your modifications. Please call if you would like to order a Plan Modification quote for this plan. All plans are drawn at ¼” scale or larger and include : Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches. Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing. Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required. » See important information before purchasing.

Questions? Call 1-800-447-0027
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
