PLAN #1017-105

Key Specs


4953
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This Mediterranean home plan is perfect for an estate lot. Stunning details in the elevation with precast banding, columns and scored stucco begin your experience. Inside the foyer, you will find a radial ceiling with drop soffit which begins the architectural details in this home plan. For those outdoor lovers, this plan offers a private outdoor shower located off of the master bath shower. Further complimenting the master suite is the spacious master closet with ironing board, washer and dryer. All the entertaining amenities are found in this Mediterranean home: a 'sit-down' wet bar between the kitchen and dining room, an outdoor kitchen and fireplace, and upstairs is a bonus room offering plenty of room for a pool table or it could be a theater room! Would your estate look fabulous with this custom Mediterranean home plan?

Floor Plans

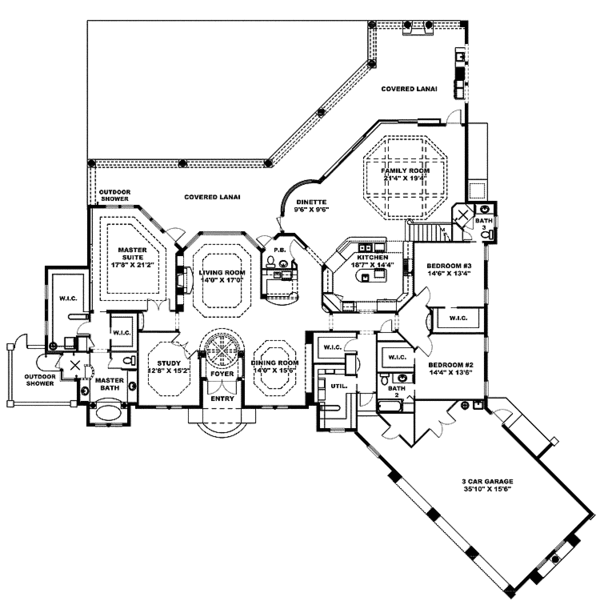

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

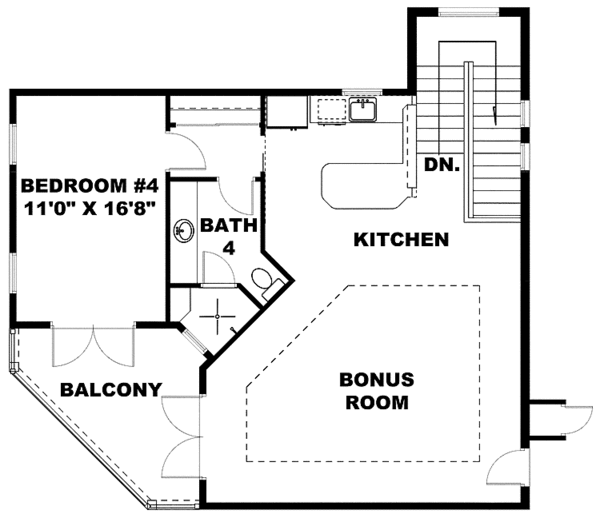

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Garage : 1031 sq/ft
Main Floor : 4031 sq/ft
Upper Floor : 922 sq/ft
Bedroom Features Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Kitchen Island
Breakfast Nook
Additional Room Features Family Room Keeping Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces Courtyard
Covered Front Porch
Loft Balcony

What's Included In This Plan Set


Home Plans by Weber Inc

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
CAD Set :
$2100.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$2100.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2100.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation
Stem Wall Foundation:
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Framing
Block:
$0.00
Block
Additional Options
Additional Construction Sets :
90.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
