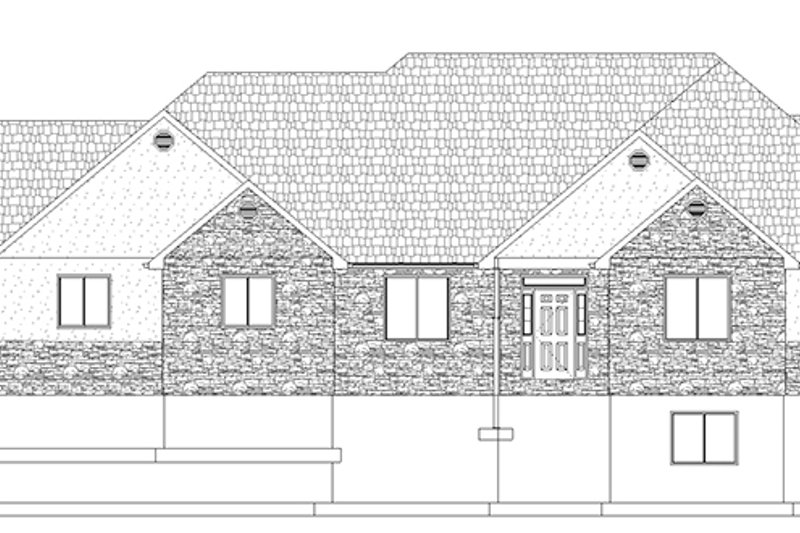

Ranch Exterior - Front Elevation Plan #1060-26

Select Plan Set Options

What's included?

	Additional Construction Sets $22.50/each
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Home Furniture Planner $17.10 This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
	Lighting Design $180.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Right-Reading Reverse $225.00 Choose this option to reverse your plans and to have the text and dimensions readable.

Subtotal

NOW $855.00

You save $95.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Or order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

Need an answer fast? Call us at 1-800-447-0027

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

We do our best to get back within 24 - 48 business hours.

Hours Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #1060-26

Key Specs

5132
sq ft

5
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Archways throughout this plan home create an open and welcoming environment. A large living area, with spacious kitchen, mirrors the open atmosphere. The luxurious master suite has a spacious walk-in closet and beautiful private bath, while the remaining bedrooms have space to spread out in and plenty of closet space. On the lower level, there is a huge family/media room and a massive home office with a private entrance. Split garages off-set to the side of the home are both functional and add to the curb appeal.

Floor Plans

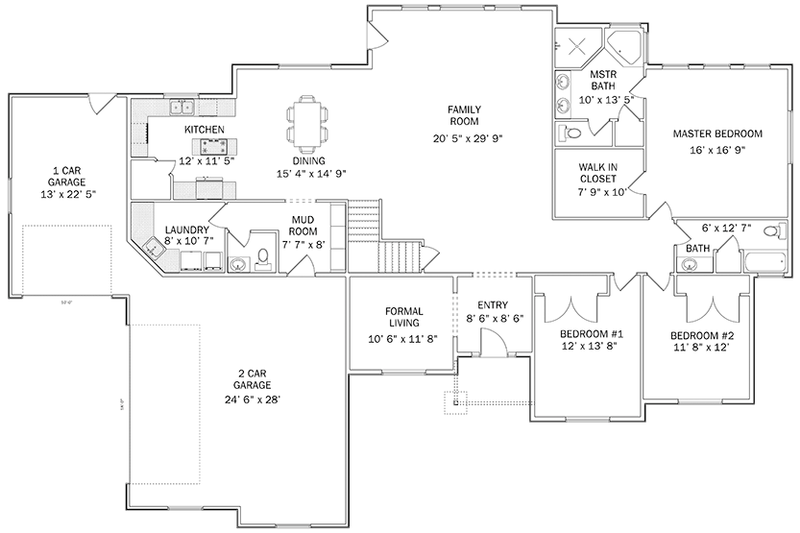

Floor Plan - Main Floor Plan

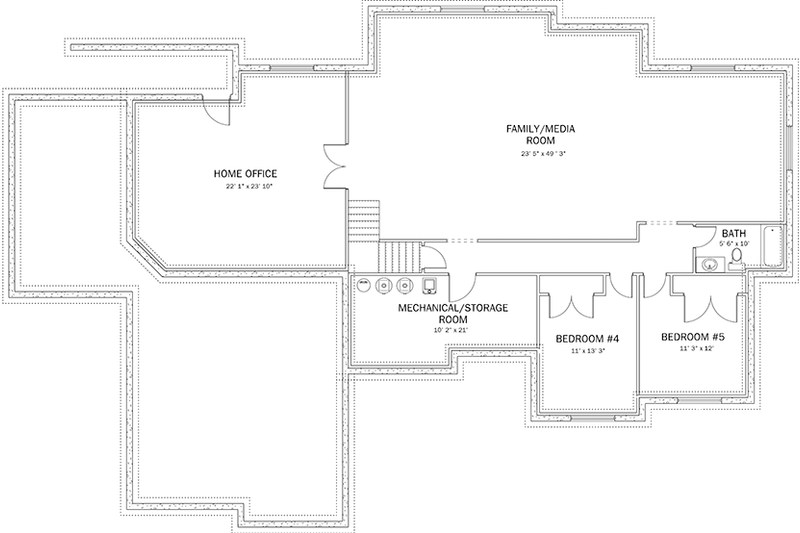

Floor Plan - Lower Floor Plan

Full Specs & Features

Dimension

Depth : 59'
Height : 25' 5"
Width : 88' 8"

Area

Basement Living: 2556 sq/ft height 8'
First Floor: 2576 sq/ft height 9'
Garage: 1016 sq/ft

Roof

Roof Framing : Truss
Primary Pitch : 10:12
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Formal Living Room / Parlor

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Media Room
Storage Area
Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

1 Car Garage:

301 sq/ft width 13' x depth 22' 5"

2 Car Garage:

715 sq/ft width 24' 6" x depth 28'

Bath 2:

75 sq/ft width 6' x depth 12' 7"

Bath 3:

56 sq/ft width 5' 6" x depth 10'

Bedroom 2:

164 sq/ft width 12' x depth 13' 8"

Bedroom 3:

140 sq/ft width 11' 8" x depth 12'

Bedroom 4:

146 sq/ft width 11' x depth 13' 3"

Bedroom 5:

147 sq/ft width 11' 3" x depth 12'

Dining Room:

226 sq/ft width 15' 4" x depth 14' 9"

Entry:

72 sq/ft width 8' 6" x depth 8' 6"

Family Room:

607 sq/ft width 20' 5" x depth 29' 9"

Family/ Media Room:

1153 sq/ft width 49' 3" x depth 23' 5"

Formal Living Room:

123 sq/ft width 10' 6" x depth 11' 8"

Home Office:

526 sq/ft width 22' 1" x depth 23' 10"

Kitchen:

137 sq/ft width 12' x depth 11' 5"

Laundry Room:

85 sq/ft width 8' x depth 10' 7"

Master Bath:

134 sq/ft width 11' 1" x depth 5'

Master Bedroom:

268 sq/ft width 16' x depth 16' 9"

Master Closet:

78 sq/ft width 7' 9" x depth 10'

Mechanical/ Storage:

214 sq/ft width 21' x depth 10' 2"

Mud Room:

61 sq/ft width 7' 7" x depth 8'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

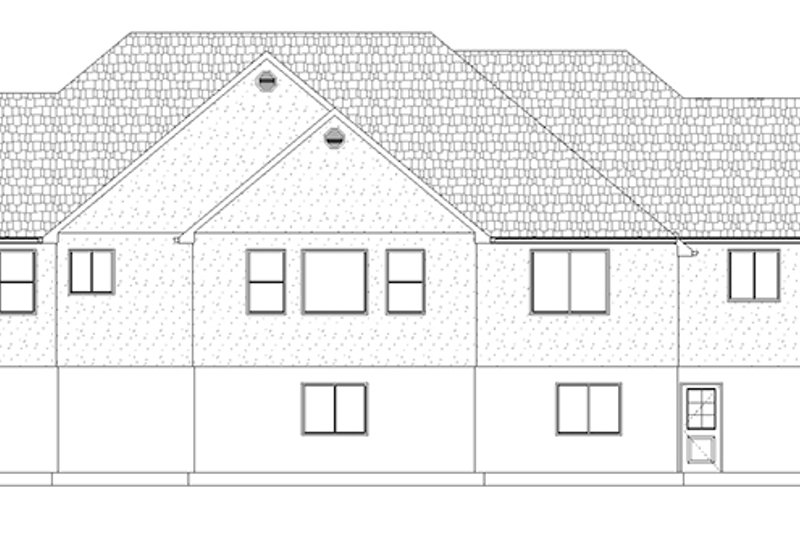

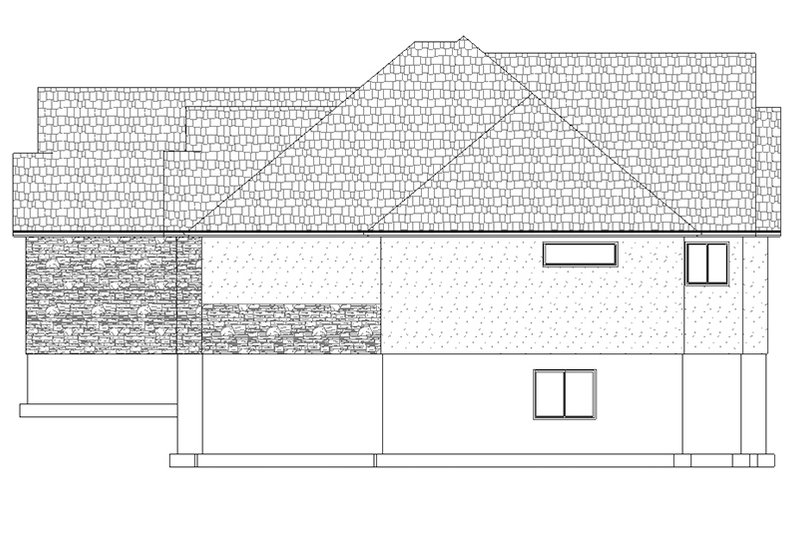

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
