Plan Description

This plan is a stunning Tuscan house plan with view orintation in mind. There is so much included in this design! Downstairs the floor plan lays out with a three car garage plus room for your golf cart, a theater room, library, sizeable guest suite and an awesome kitchen, family and dinette area featuring a large radial glass window and zero pocket doors for maximum view exposure in the family room. The other guest rooms and master suite are located upstairs with a loft and wet bar, additional utility room, covered balcony and sun deck! The parlor ceiling from the first floor extends up into the second floor giving this floor plan an even more open feel. At just over 5,000 square feet of living, this Tuscan home plan would be a perfect new home for you!

Floor Plans

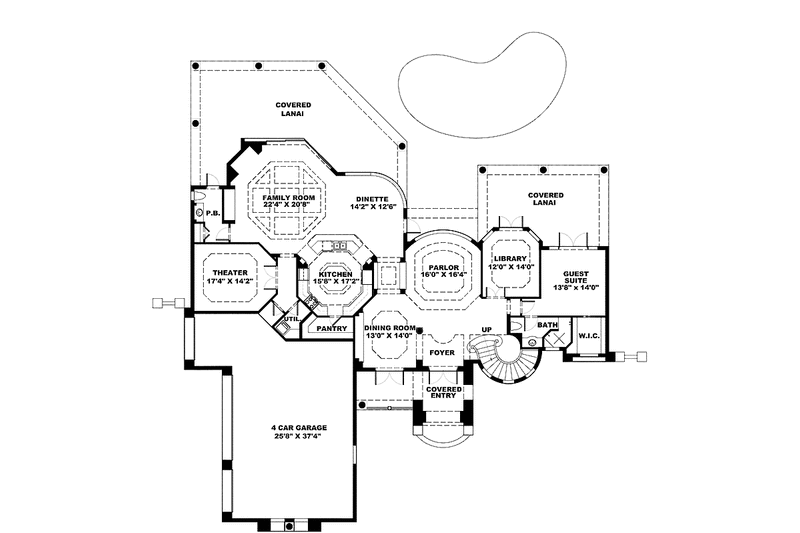

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1017-108

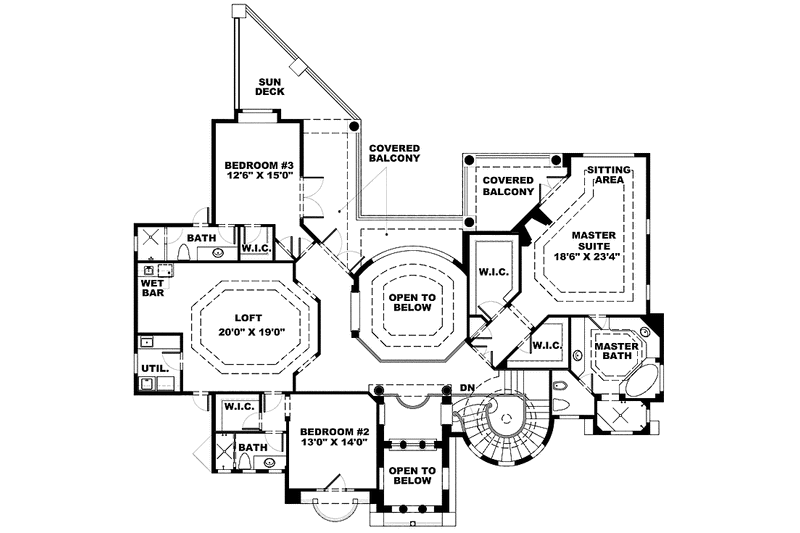

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1017-108

Full Specs & Features

Depth : 99' 4"
Height : 35'
Width : 91'
First Floor: 2829 sq/ft
Garage: 1248 sq/ft
Second Floor: 2335 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Clay Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Media Room
Outdoor Spaces
Covered Front Porch

Bedroom 2:

182 sq/ft width 13' x depth 14'

Bedroom 3:

187 sq/ft width 12' 6" x depth 15'


177 sq/ft width 14' 2" x depth 12' 6"

Dining Room:

182 sq/ft width 13' x depth 14'

Family Room:

461 sq/ft width 22' 4" x depth 20' 8"


958 sq/ft width 25' 8" x depth 37' 4"

Guest Suite:

191 sq/ft width 13' 8" x depth 14'


268 sq/ft width 15' 8" x depth 17' 2"


168 sq/ft width 12' x depth 14'


380 sq/ft width 20' x depth 19'

Master Suite:

431 sq/ft width 18' 6" x depth 23' 4"


293 sq/ft width 18' x depth 16' 4"

Theatre Room:

245 sq/ft width 17' 4" x depth 14' 2"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
