PLAN #48-151

Key Specs


5180
sq ft

6
Beds

5
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


ROOM DIMENSIONS: Foyer 11' ceiling Dining Room 16/0x13/0+ Bay - 11' ceiling Office 12/0x10/0 - 11' ceiling Crafts 15/2x8/6 - 11' ceiling Sunroom 15/0x10/6 - 11' ceiling Garage 25/0x38/0+ - 11' ceiling Kitchen 16/0x14/4 - 11' ceiling Nook 11/0x14/0 - 11' ceiling Great Room 24/0x18/0 - 11' ceiling Club Room 15/0x32/0+Bay - 11' ceiling Bedroom #2 13/6x12/0 - 9' ceiling Bedroom #3 12/0x15/0 - 9' ceiling Mstr. Bdrm Alcove 10/4x13/4 - 9' ceiling Mstr. Sitting Room 17/6x13/4 - 9' ceiling Living Quarters above Garage: Living/Dining 15/10x14/0+/- - 8' ceiling Bedroom #1 14/4x11/8 - 8' ceiling Bedroom #2 14/4x11/8 - 8' Ceiling

Floor Plans


Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #48-151

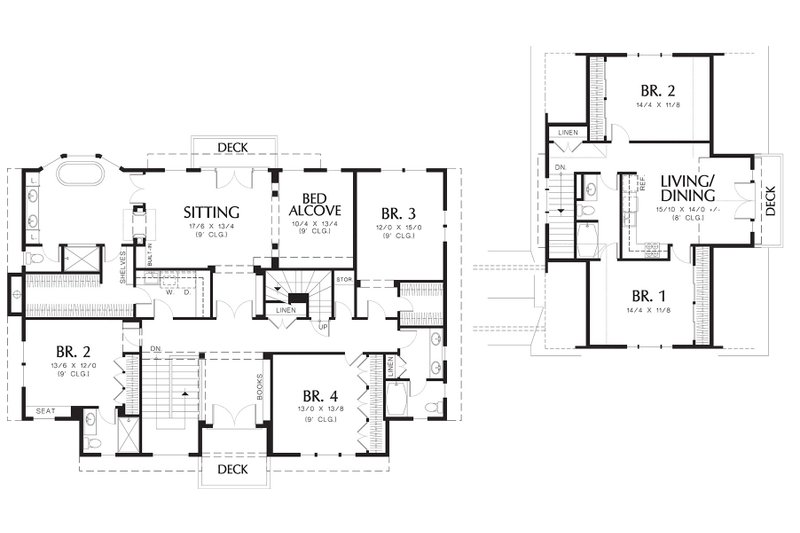

Floor Plan - Upper Floor Plan
Colonial Floor Plan - Upper Floor Plan Plan #48-151

Full Specs & Features


Dimension Depth : 63' 6"
Height : 38'
Width : 117' 6"
Area Bonus : 908 sq/ft
Main Floor : 3030 sq/ft
Upper Floor : 2150 sq/ft
Ceiling Main Ceiling : 11'
Upper Ceiling Ft : 9'
Roof Primary Pitch : 6:12
Exterior Wall Framing Framing : 2"x6"
Bedroom Features Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Garage Features Oversized Garage
Side Entry Garage
Lot Characteristics Suited For Corner Lot
Outdoor Spaces Breezeway
Covered Front Porch
3rd BR Closet 36 sq/ft width 6' x depth 6'
Attic 700 sq/ft width 35' x depth 20'
Bathroom 2 56 sq/ft width 8' x depth 7'
Bathroom 3 96 sq/ft width 8' x depth 12'
Bedroom 2 162 sq/ft width 13' 6" x depth 12'
Bedroom 2 Closet 16 sq/ft width 2' x depth 8'
Bedroom 3 180 sq/ft width 12' x depth 15'
Bedroom 3 Closet 16 sq/ft width 2' x depth 8'
Bedroom 4 177 sq/ft width 13' x depth 13' 8"
Bedroom 4 Closet 27 sq/ft width 2' x depth 13' 8"
Breakfast Room 154 sq/ft width 11' x depth 14'
Den/Office or Bedroom 1 120 sq/ft width 12' x depth 10'
Dining Room 208 sq/ft width 16' x depth 13'
Foyer 111 sq/ft width 9' 4" x depth 12'
Game Room 480 sq/ft width 15' x depth 32'
Garage 950 sq/ft width 25' x depth 38'
Gathering Room 432 sq/ft width 24' x depth 18'
Guest Suite width 0" x depth 0"
Hall width 0" x depth 6'
Hall Bathroom 63 sq/ft width 6' x depth 10' 6"
Kitchen 229 sq/ft width 16' x depth 14' 4"
Laundry Room 65 sq/ft width 10' x depth 6' 6"
Master Bathroom 264 sq/ft width 16' 6" x depth 16'
Master Bedroom 742 sq/ft width 27' 10" x depth 26' 8"
Master Closet 90 sq/ft width 15' x depth 6'

What's Included In This Plan Set


  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
